Propeller Shaft Runout
PROPELLER SHAFT RUNOUT1. Clean the propeller shaft surface where the dial indicator will contact the shaft.
2. The dial indicator must be installed perpendicular to the shaft surface.
3. Measure runout at the center and ends of the shaft away from weld areas, to ensure weld process will not effect the measurements.
4. Refer to Runout Specifications chart.
5. If propeller shaft is out of specification, remove propeller shaft and index the shaft 180°. Install the propeller shaft and measure shaft runout again.
6. If propeller shaft is now within specifications, mark shaft and yokes for proper orientation.
7. If propeller shaft runout is not within specifications, check runout of the transmission and axle. Correct as necessary and repeat propeller shaft runout measurement.
8. Replace propeller shaft if the runout still exceeds the limits.
RUNOUT SPECIFICATIONS:

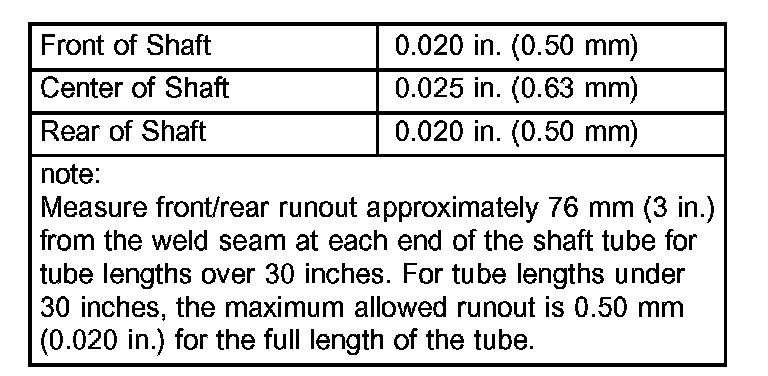

RUNOUT SPECIFICATIONS
