Installation

ELECTROHYDRAULIC UNIT

INSTALLATION
1. Position the electrohydraulic unit in the transmission housing.





2. Insert selector valve (1) (Fig. 141) in driver of detent plate (2). When installing the electrohydraulic control module in the transmission housing, the plastic part of the selector valve (1) must engage in the driver of the detent plate (2).





3. Install the Torx (R) socket bolts (3) (Fig. 142) and torque to 8 Nm (71 inch lbs.).

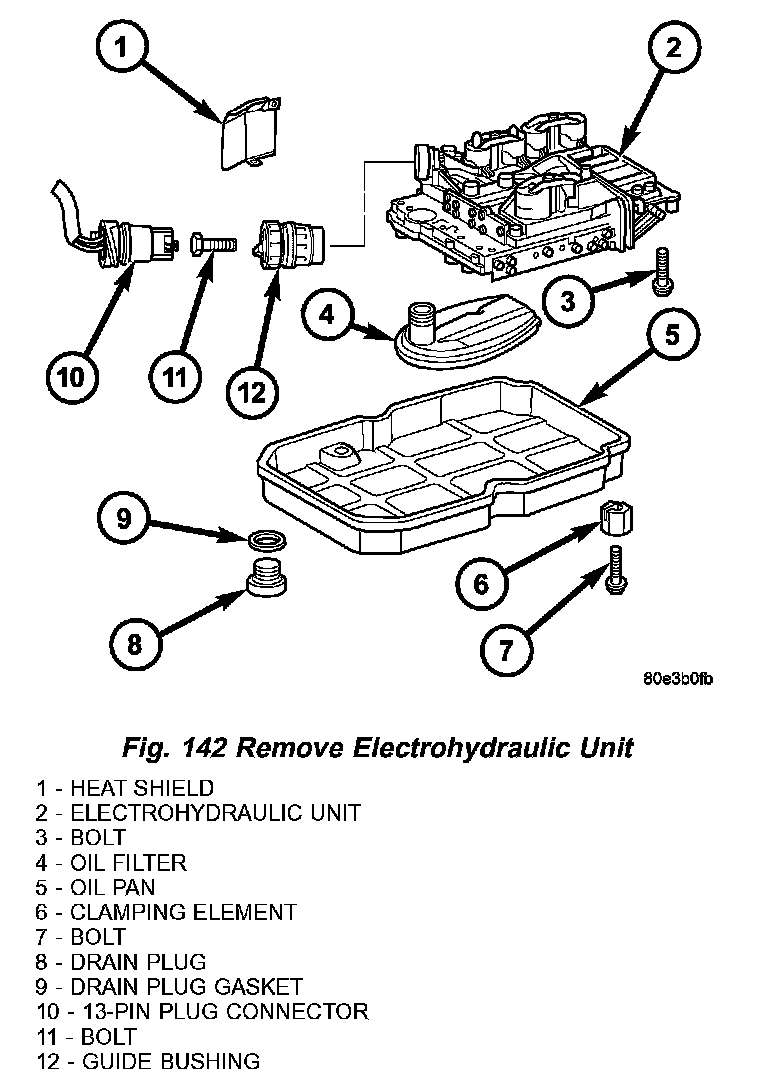

4. Install a new oil filter (4) (Fig. 142).
5. Install oil pan (5) (Fig. 142) and torque the oil pan bolts to 8 Nm (71 inch lbs.).
6. Install the oil drain plug (8) (Fig. 142) with a new drain plug gasket (9). Torque the drain plug to 20 Nm (177 inch lbs.).
7. Install the guide bushing (2) (Fig. 142) into the transmission housing and install the bolt (11) to hold the guide bushing in place.

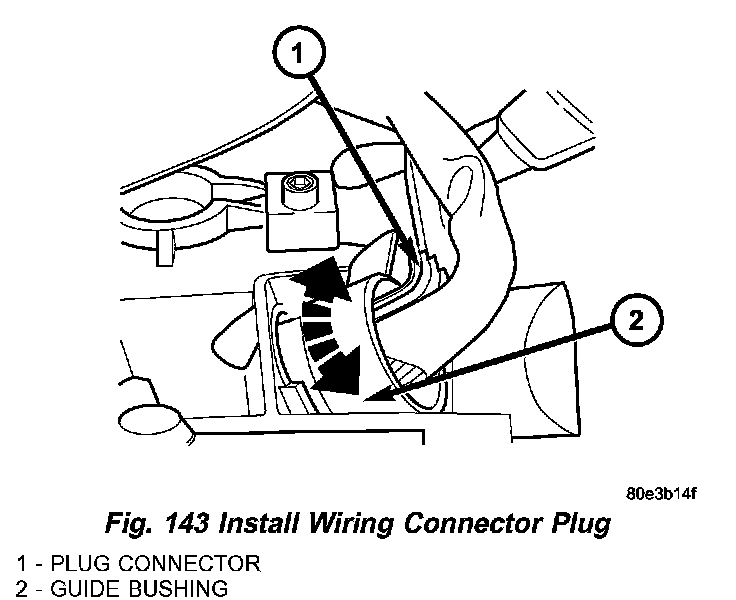

8. Check O-ring on plug connector (1) (Fig. 143), and replace if necessary.
9. Install the plug connector (1) into the guide bushing (2). Turn bayonet lock of guide bushing (2) clockwise to connect plug connector (1).

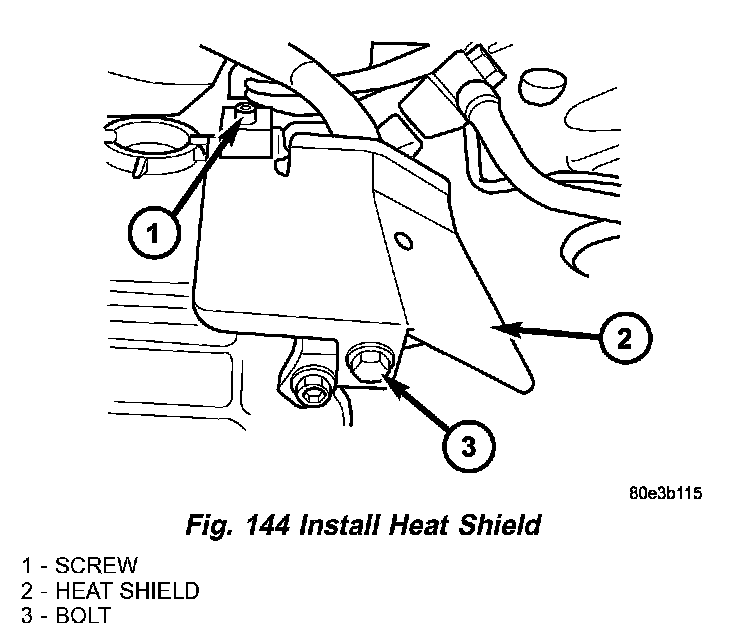

10. Position the heat shield (2) (Fig. 144) onto the transmission housing and install the screw (1) and bolt (3) to hold the shield in place.
11. Fill the transmission with the correct oil using the standard procedure.
