Output Shaft Bearing

OUTPUT SHAFT BEARING

REMOVAL
1. Raise and support vehicle.
2. Remove the propeller shaft.
3. Verify that the transmission is in PARK in order to prepare for the removal of the output shaft nut.
4. Remove the nut holding the propeller shaft flange to the output shaft and remove the flange.
5. Remove the transmission rear oil seal with a suitable slide hammer and screw.
6. Remove the transmission output shaft washer. Be sure to tag the washer since it is very similar to the geartrain end play shim and they must not be interchanged.

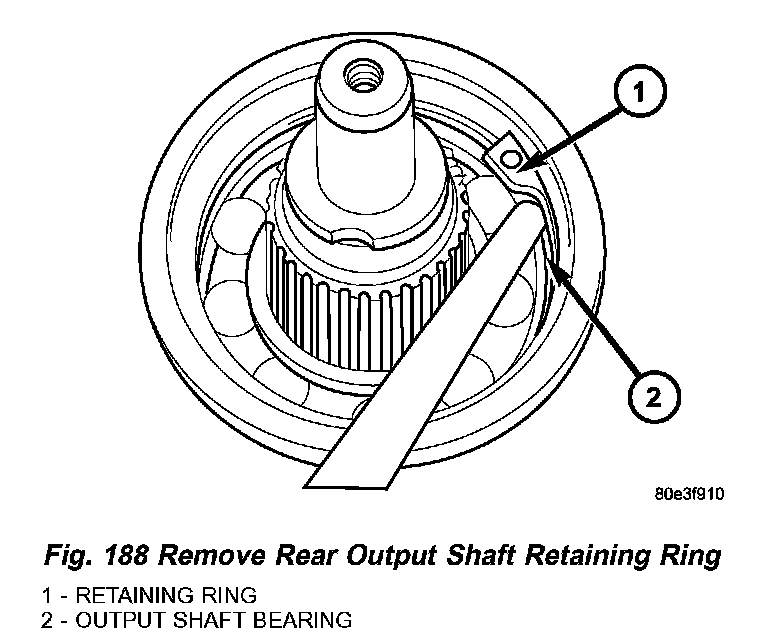

7. Remove the transmission rear output shaft bearing retaining ring (1) (Fig. 188).

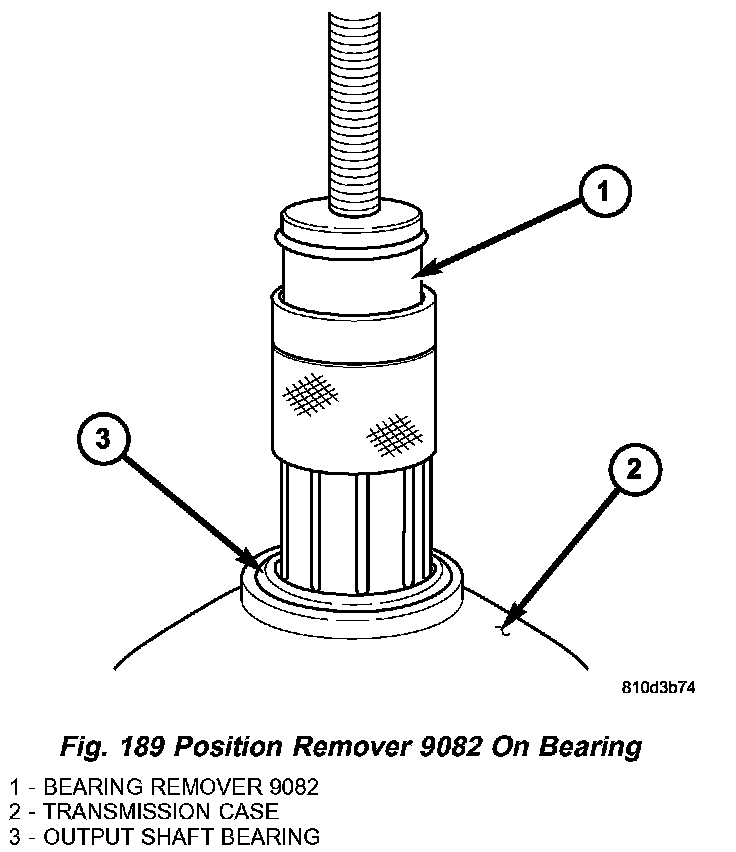

8. Position Bearing Remover 9082 (1) (Fig. 189) over the inner race of the output shaft bearing.

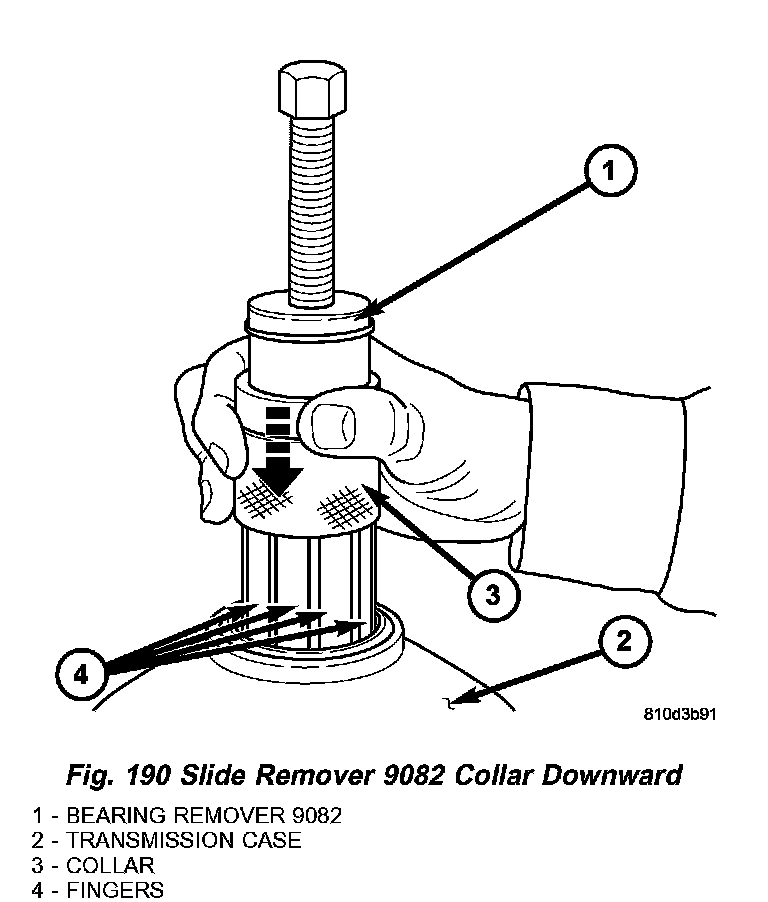

9. Slide the collar (3) (Fig. 190) on the Bearing Remover 9082 (1) downward over the fingers (3) of the tool.

CAUTION: Verify that the geartrain end play shim has remained on the output shaft and against the park gear. The shim may be adhered to the bearing inner race. Retrieve the shim from the bearing and install over the output shaft and against the park gear.

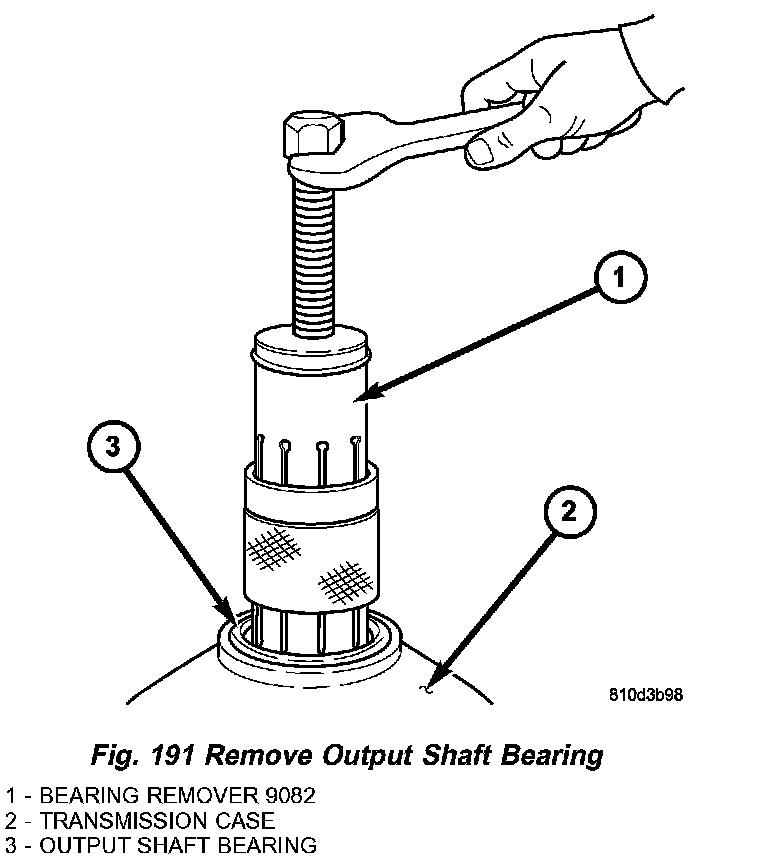

10. Remove the output shaft bearing (3) (Fig. 191).

INSTALLATION

CAUTION: Verify that the geartrain end play shim is properly installed over the output shaft and against the park gear.

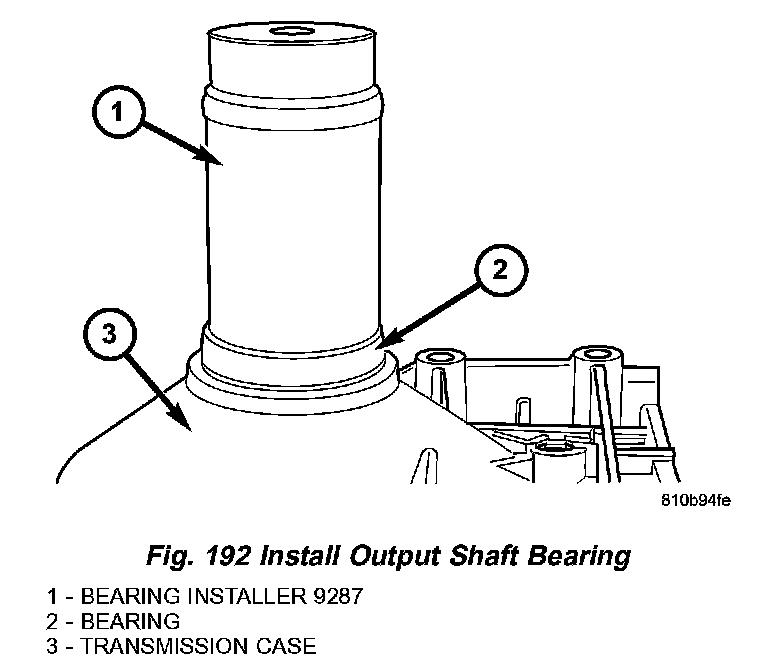

1. Install output shaft bearing in the rear transmission housing. Using Bearing Installer 9287 (1) (Fig. 192), install the output shaft bearing (2) into the transmission housing. The closed side of the plastic cage must point towards the parking lock gear.

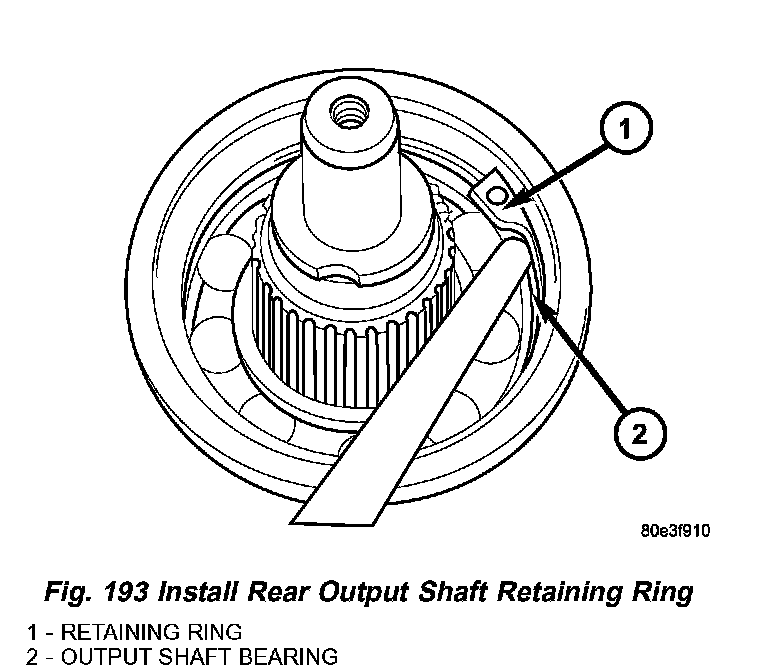

2. Install the retaining ring (1) (Fig. 193). Ensure that the retaining ring is seated correctly in the groove.
3. Check that there is no play between the bearing and the retaining ring using feeler gauge.
4. There must be no play between the retaining ring and the bearing. If the ring cannot be installed, a thinner ring must be used. If there is play between the ring and the bearing, a thicker ring must be installed. Retaining rings are available in thicknesses of 2.0 mm (0.079 inch), 2.1 mm (0.083 inch), and 2.2 mm (0.087 inch).
5. Install the output shaft washer onto the output shaft.

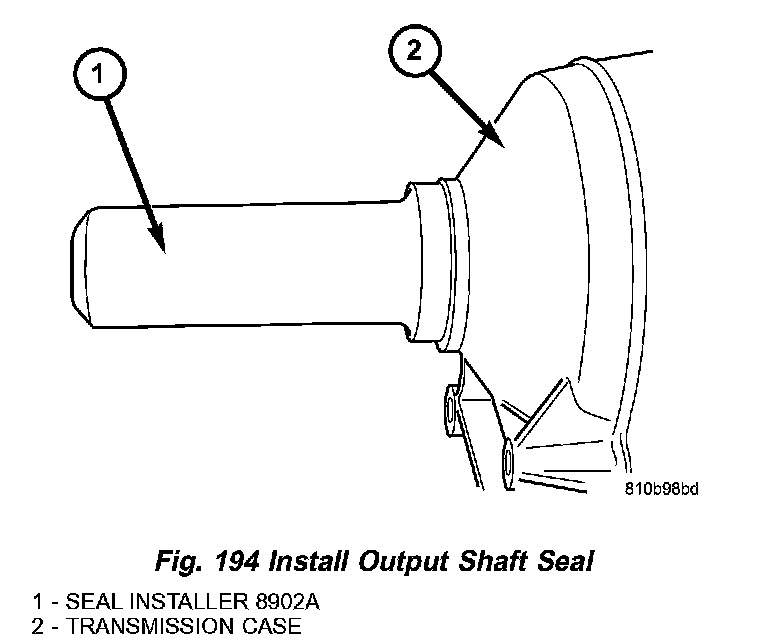

6. Install a new transmission rear seal into the transmission case with Seal Installer 8902A (1) (Fig. 194).
7. Verify that the transmission is in PARK in order to prepare for the installation of the output shaft nut.
8. Install the propeller shaft flange onto the output shaft and install an new flange nut. Tighten the flange nut to 120 Nm (88.5 ft. lbs.).
9. Stake the output shaft nut to the output shaft as follows. Place the Staking Tool 9078 (2) and Driver Handle C-4171 onto the output shaft.

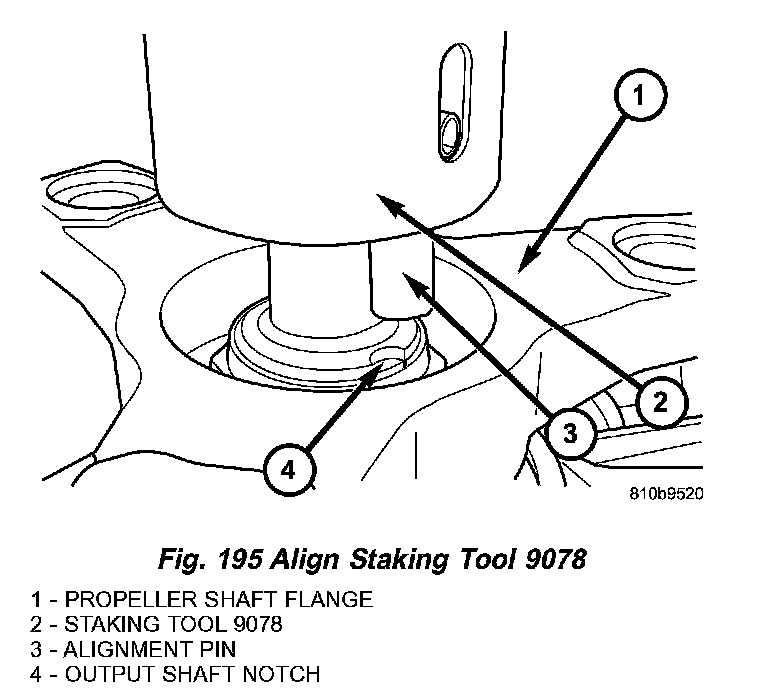

10. Rotate the Staking Tool 9078 (2) until the alignment pin (3) engages the output shaft notch (4) (Fig. 195).

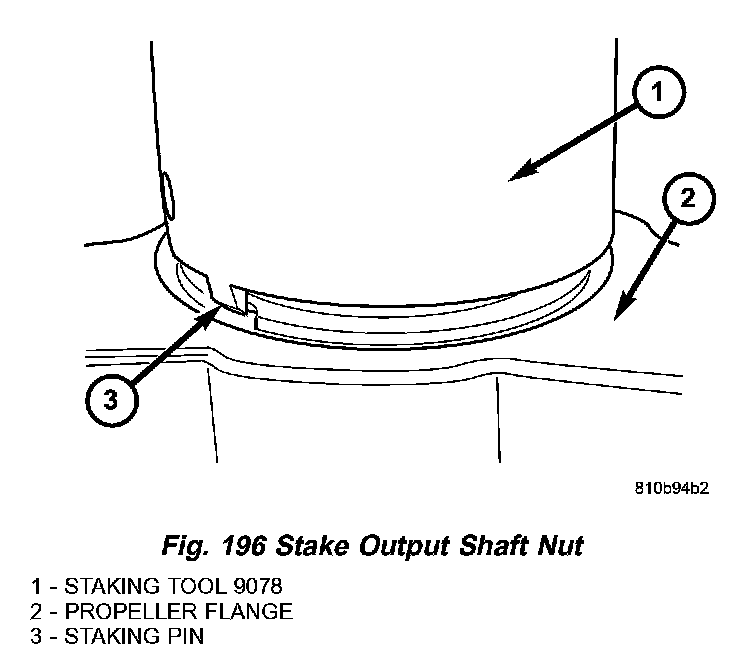

11. Press downward on the staking tool (1) until the staking pin (3) contacts the output shaft nut flange (2) (Fig. 196).
12. Strike the Driver handle C-4171 with a suitable hammer until the output shaft nut is securely staked to the output shaft.
13. Install the propeller shaft.
