K2
INPUT CLUTCH K2DISASSEMBLY
1. Remove snap ring (19) from the K1 inner multiple disc carrier with integrated front gear set (2) and take off hollow gear (18).

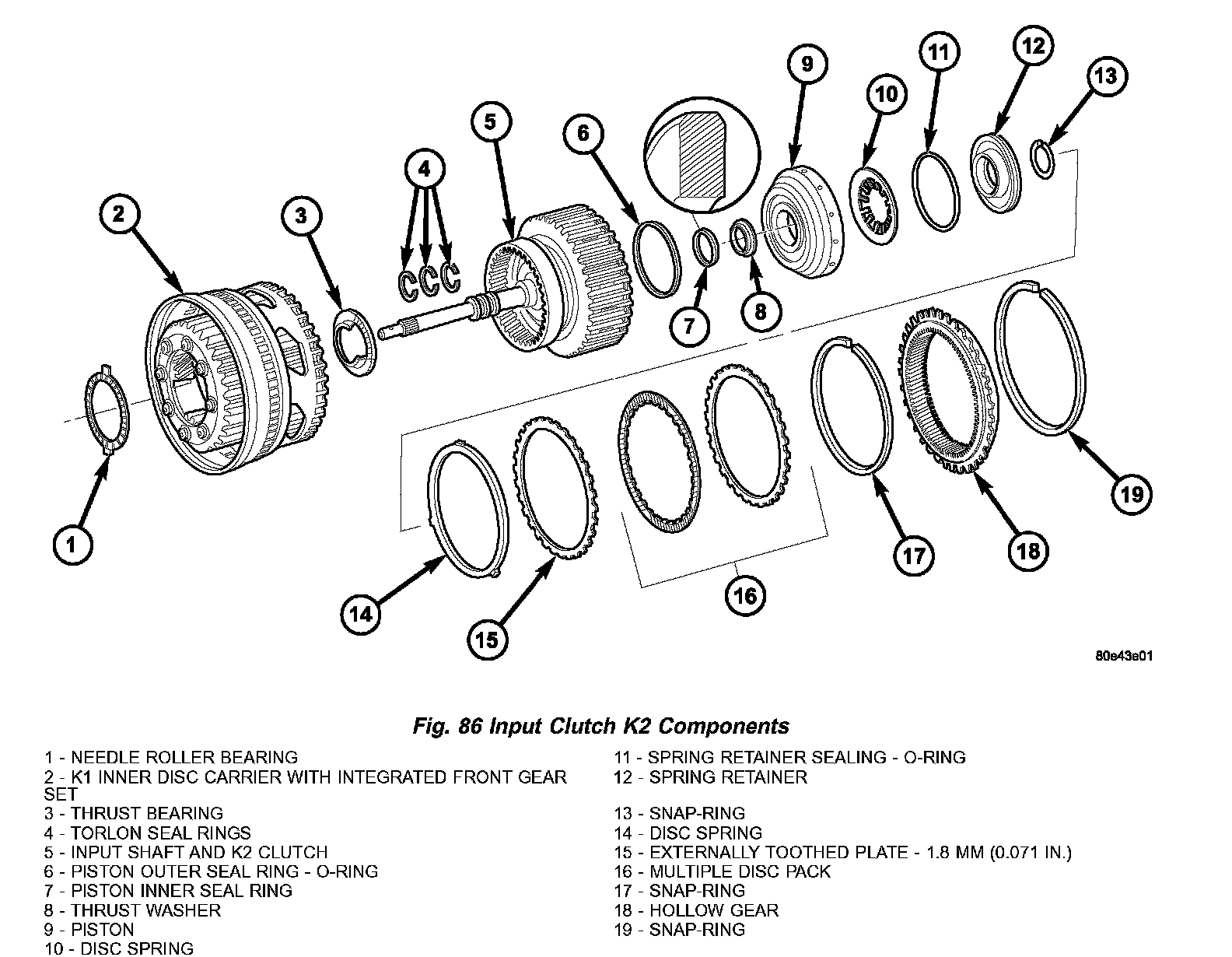

2. Remove input shaft with clutch K2 (5) (Fig. 86).
3. Remove needle thrust bearing (3).
4. Remove snap ring (17) (Fig. 86) from K2 outer multiple disc carrier.
5. Take out multiple disc pack (16). Note which clutch disc is removed just prior to the disc spring (14) for re assembly. If the clutch discs are re used, this disc must be returned to its original position on top of the disc spring.
6. Take out disc spring (14) (Fig. 86).

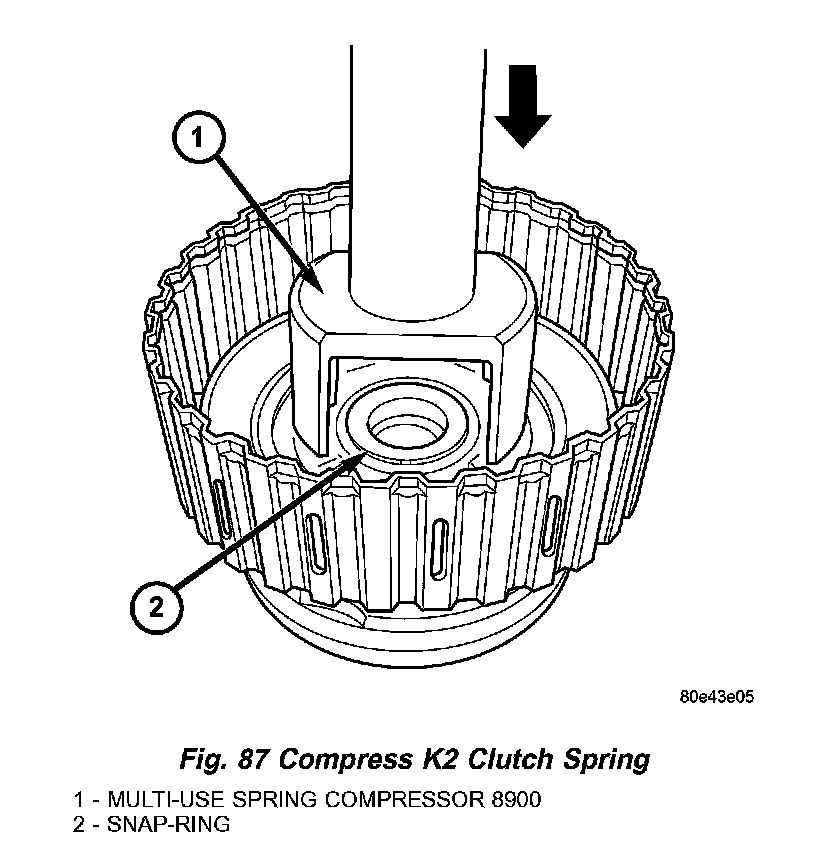

7. Fit Multi use Spring Compressor 8900 (1) (Fig. 87) onto spring retainer (12) and press until snap ring (2) is released.
8. Remove snap ring (2) (Fig. 86).
9. Take out disc spring (10) and pull piston (9) out of outer multiple disc carrier.
ASSEMBLY

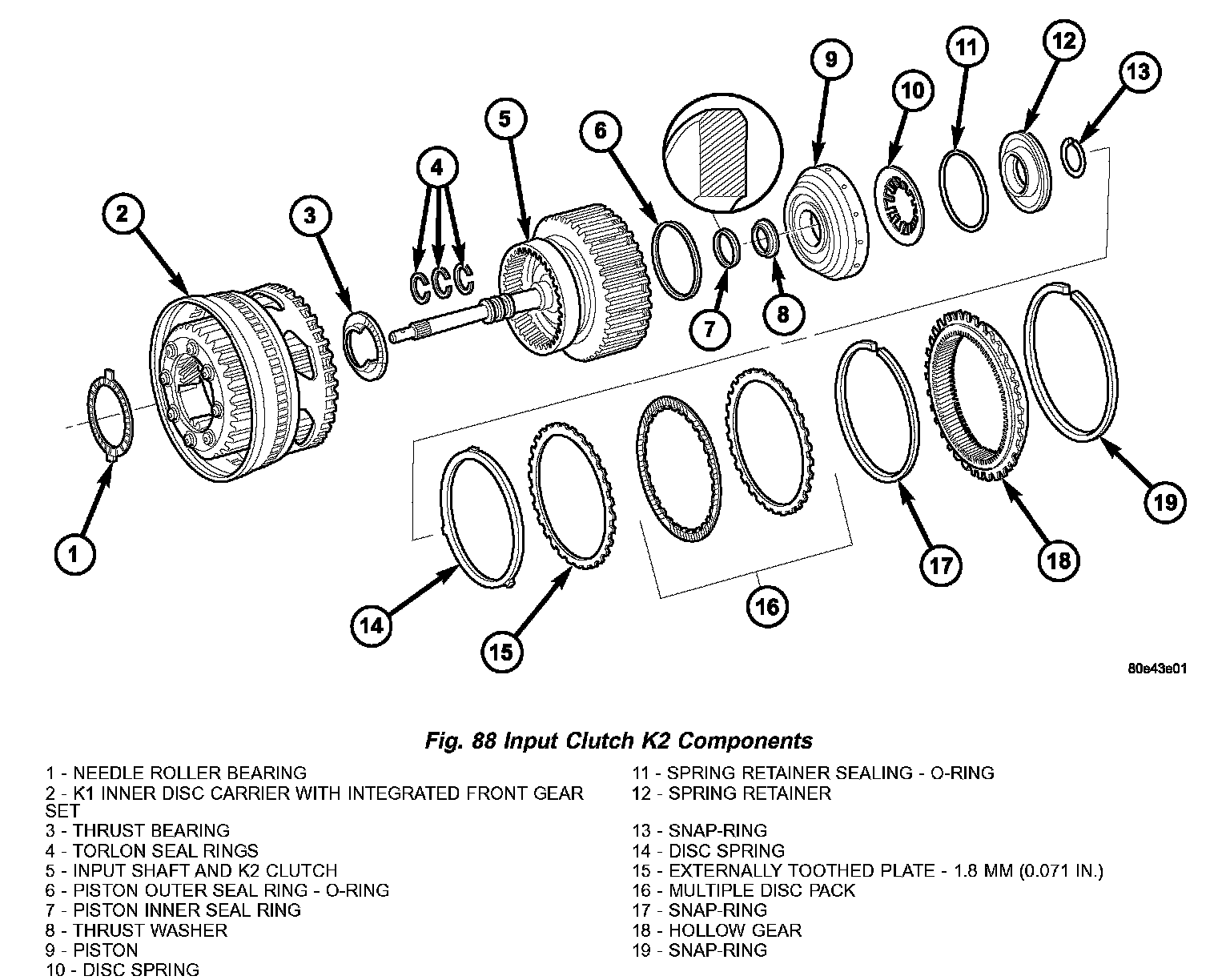

1. Install piston (9) (Fig. 88) in outer multiple disc carrier. Inspect seals (6 and 7), replace if necessary. The rounded edges of the inner piston seal (7) must point to the outside.
2. Insert disk spring (10) and spring retainer (12). Insert disk spring (10) with curved side pointing toward spring retainer (12). Inspect seal (11) (Fig. 88), replace if necessary.

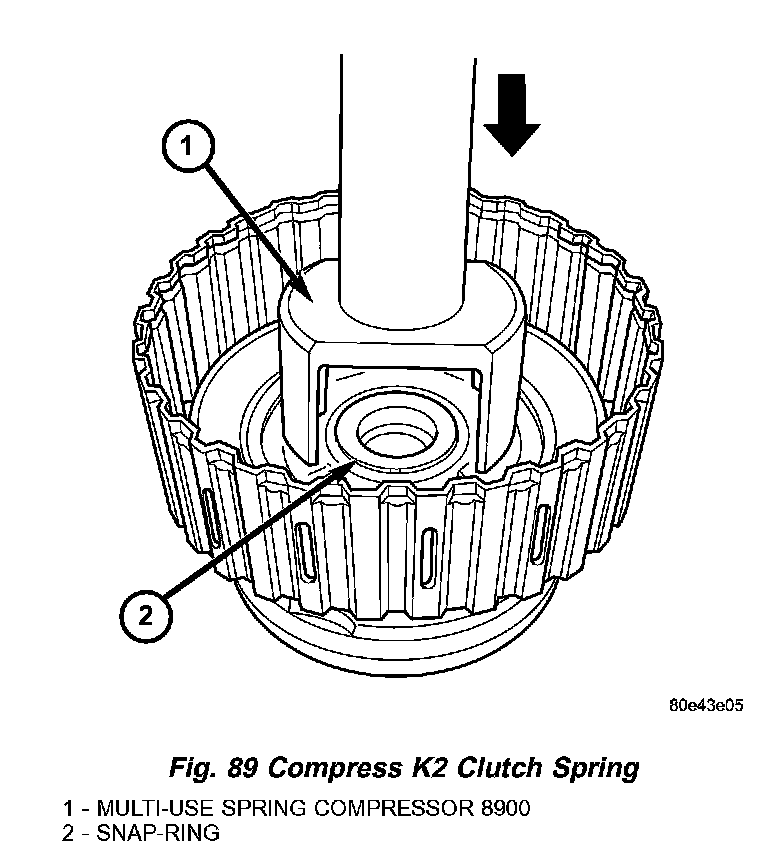

3. Place Multi use Spring Compressor 8900 (1) (Fig. 89) on spring plate and press until the groove (2) of the snap ring is exposed.
4. Insert snap ring.
5. Insert disk spring (14).
NOTE: Pay attention to the sequence of discs. If the original clutch discs are reused, be sure to return the disc identified on disassembly as belonging on top of the disc spring (14) to its original location.
6. Insert multiple disk set (16) into outer multiple disk carrier.
7. Fit snap ring (17).

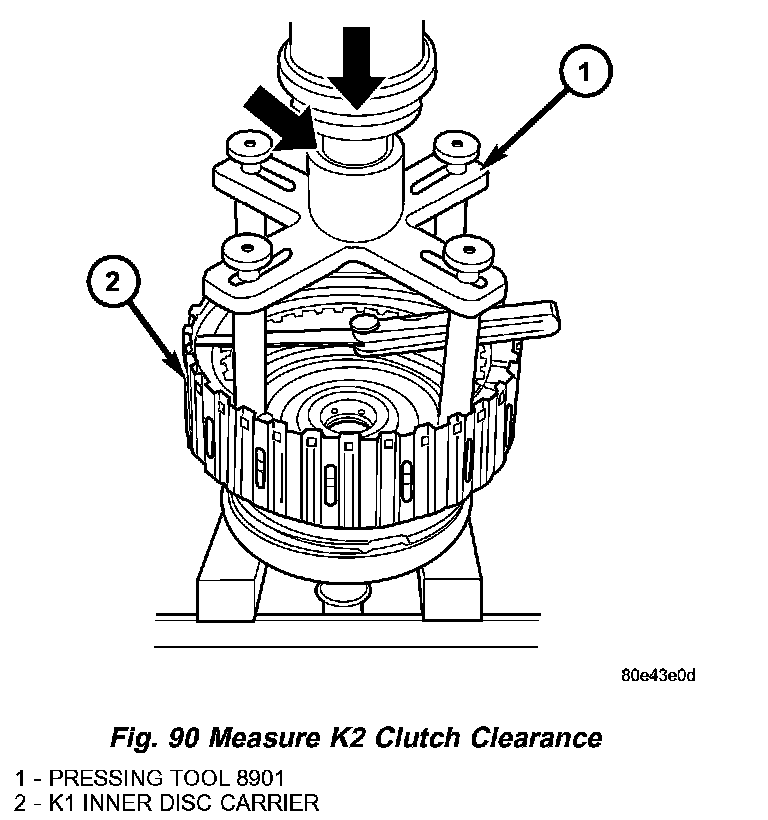

8. Measure K2 clutch clearance by mounting Pressing Tool 8901 (1) (Fig. 90) on outer multiple disc.
9. Using a lever press, compress pressing tool as far as the stop (then the marking ring is still visible, see small arrow).

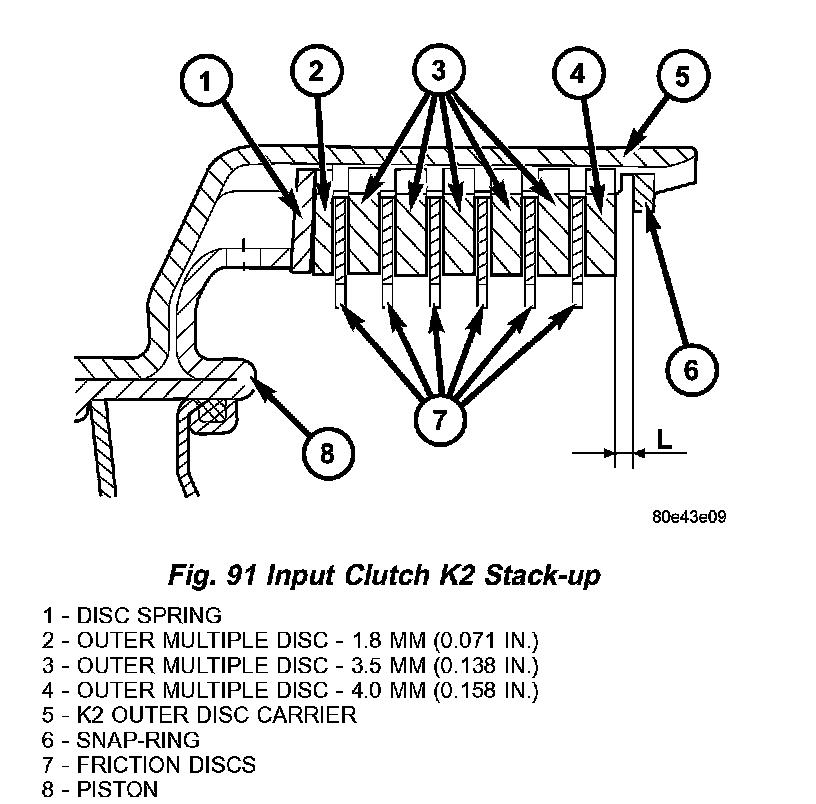

10. Using a feeler gauge, determine the play "L" (Fig. 91) at three points between the snap ring (6) and outer multiple disc (4).
11. During the measurement the snap ring (6) must contact the upper bearing surface of the groove in the outer multiple disc carrier.
12. The correct clutch clearance is 2.3 - 2.7 mm (0.091 - 0.106 inch) for three friction disc versions, 2.4 - 2.8 mm (0.095 - 0.110 inch) for four disc versions, 2.5 - 2.9 mm (0.099 - 0.114 inch) for five disc versions, and 2.73.1 mm (0.106 0.122 inch) for six disc versions.
13. Adjust with snap ring (6), if necessary. Snap rings are available in thicknesses of 2.3 mm (0.091 inch), 2.6 mm (0.102 inch), 2.9 mm (0.114 inch), 3.2 mm (0.126 inch), 3.5 mm (0.138 inch), and 3.8 mm (0.150 inch).
14. Insert axial needle bearing (3) into K1 inner multiple disk carrier. Insert axial needle bearing (3) with a little grease to prevent it slipping.
15. Install input shaft in K1 inner multiple disc carrier with integrated front gear set (2).
16. Fit internally geared wheel (18) and install snap ring (19). Pay attention to installation position.
