Freewheeling Clutch
FREEWHEELING CLUTCHDISASSEMBLY

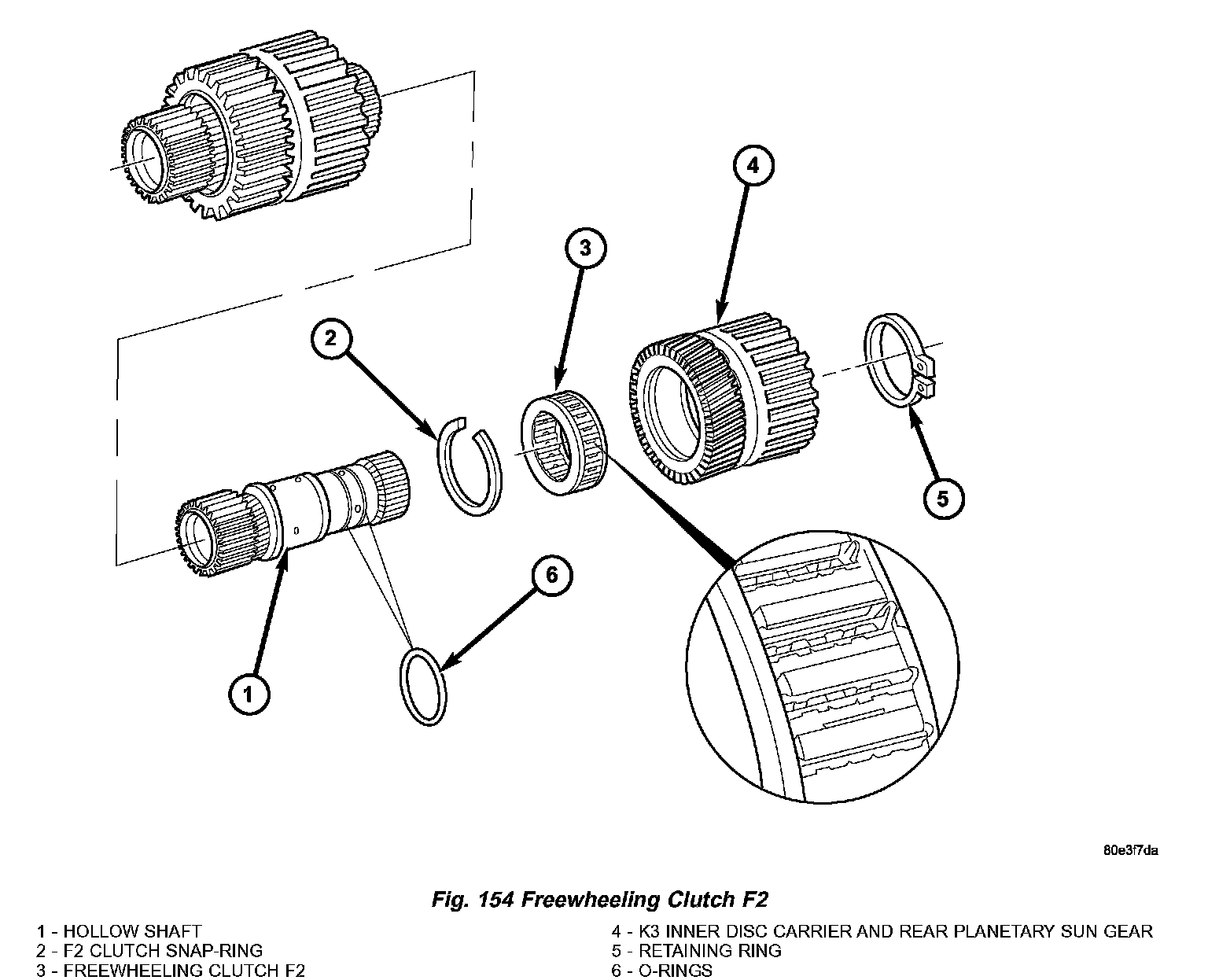

1. Remove retaining ring (5) (Fig. 154) from hollow shaft (1).
2. Remove rear sun gear (4) with the K3 internally toothed disk carrier and rear freewheeling clutch F2 (3).
3. Remove snap ring (2) (Fig. 154) for freewheel.
4. Press freewheeling clutch (3) out of sun gear.
5. Check O-rings (6), replace if necessary.

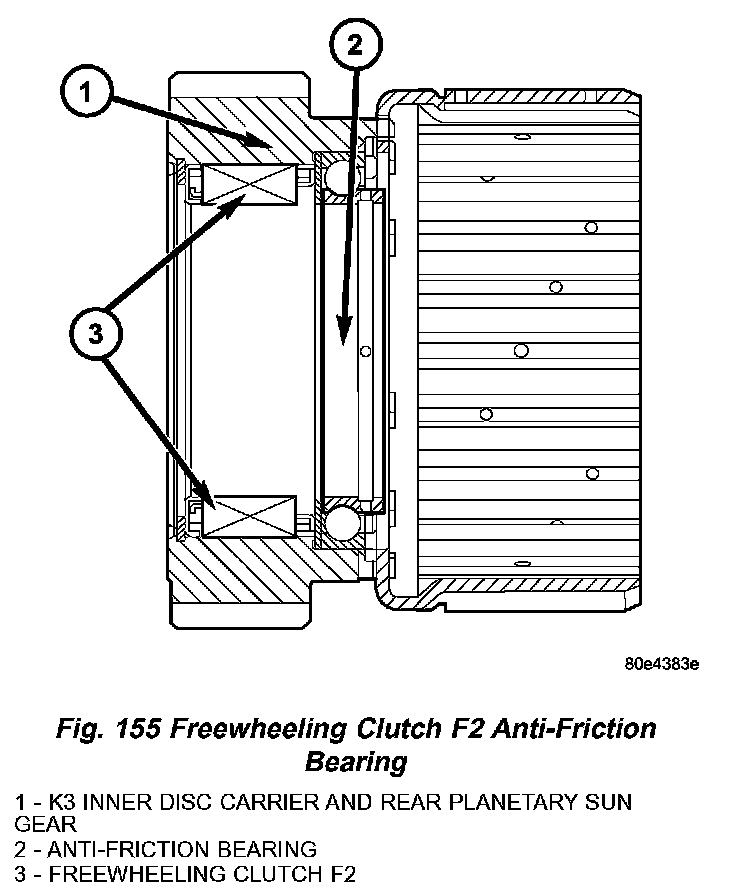

6. Check the anti friction bearing (2) (Fig. 155) in the rear planetary sun gear for damage. Replace as necessary.
ASSEMBLY
NOTE: The side of the freewheeling clutch F2 (3) with the markings (directional arrow, part number, etc.) must be up when the clutch is installed in the sun gear (4).
1. Press freewheeling clutch F2 (3) (Fig. 156) into sun gear (4).
2. Install snap ring (2) for freewheeling clutch.
3. Check O-rings (6) (Fig. 156) on hollow shaft, replace if necessary.
4. Install rear sun gear (4) with K3 internally toothed disc carrier and rear freewheeling clutch (3) onto the hollow shaft.
5. Verify proper operation of the freewheeling clutch F2. When the assembly is held with the F2 clutch snap ring upward, it should be possible to rotate the hollow shaft counter clockwise.
6. Install retaining ring (5) onto hollow shaft (1).
