Torque Converter Hub Seal

TORQUE CONVERTER HUB SEAL

REMOVAL
1. Remove the torque converter.
2. Remove the torque converter hub seal with suitable screw and slide hammer.

INSTALLATION

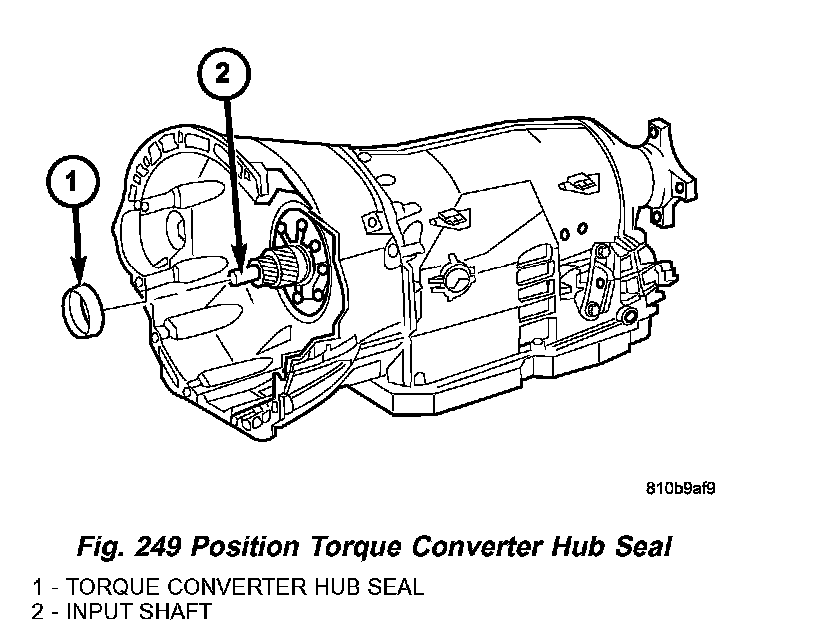

1. Position the torque converter hub seal (1) (Fig. 249) over the input shaft and against the transmission oil pump.

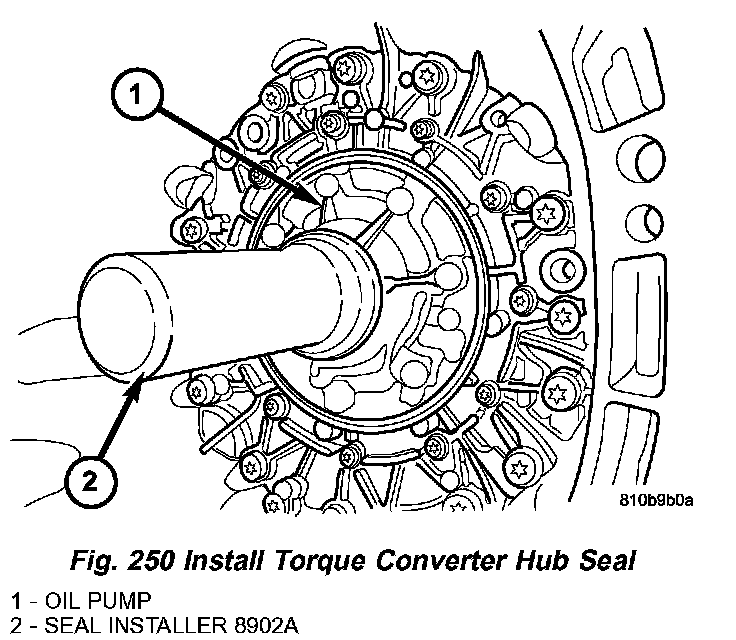

2. Using Seal Installer 8902A (2) (Fig. 250), install a new torque converter hub seal.
3. Install the torque converter.
