Output Shaft Seal

OUTPUT SHAFT SEAL

REMOVAL
1. Remove the propeller shaft. Move propeller shaft to the right and tie up.
2. Verify that the transmission is in PARK in order to prepare for the removal of the output shaft nut.
3. Remove the nut holding the propeller shaft flange to the output shaft and remove the flange.
4. Remove the output shaft seal with suitable screw and slide hammer.

INSTALLATION
1. Position the new output shaft seal over the output shaft and against the transmission case.

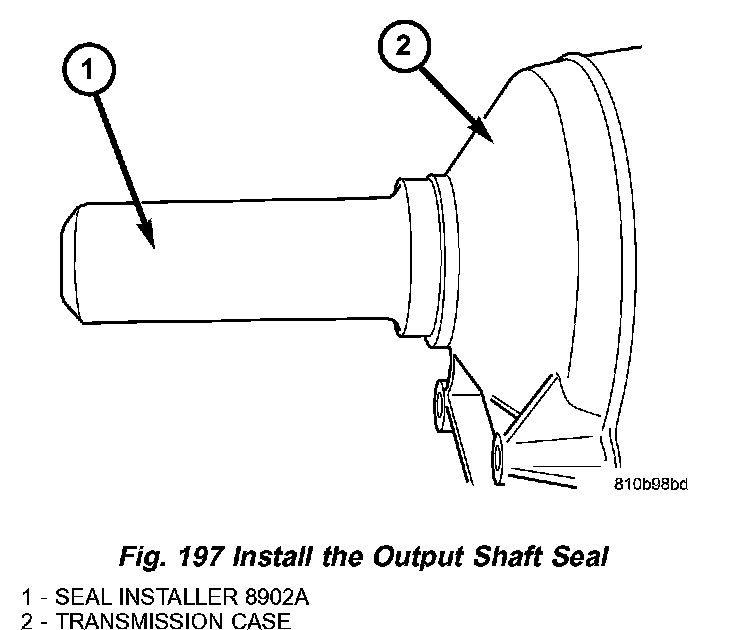

2. Use Seal Installer 8902A (1) (Fig. 197) to install the seal.
3. Verify that the transmission is in PARK in order to prepare for the installation of the output shaft nut.
4. Install the propeller shaft flange onto the output shaft and install an new flange nut. Tighten the flange nut to 120 Nm (88.5 ft. lbs.).
5. Stake the output shaft nut to the output shaft as follows. Place the Staking Tool 9078 (2) and Driver Handle C-4171 onto the output shaft.

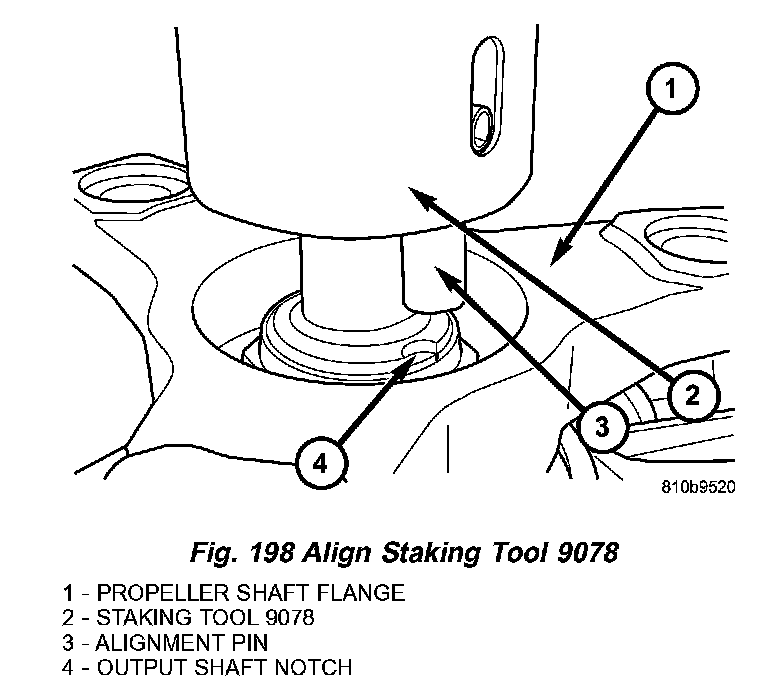

6. Rotate the Staking Tool 9078 (2) until the alignment pin (3) engages the output shaft notch (4) (Fig. 198).

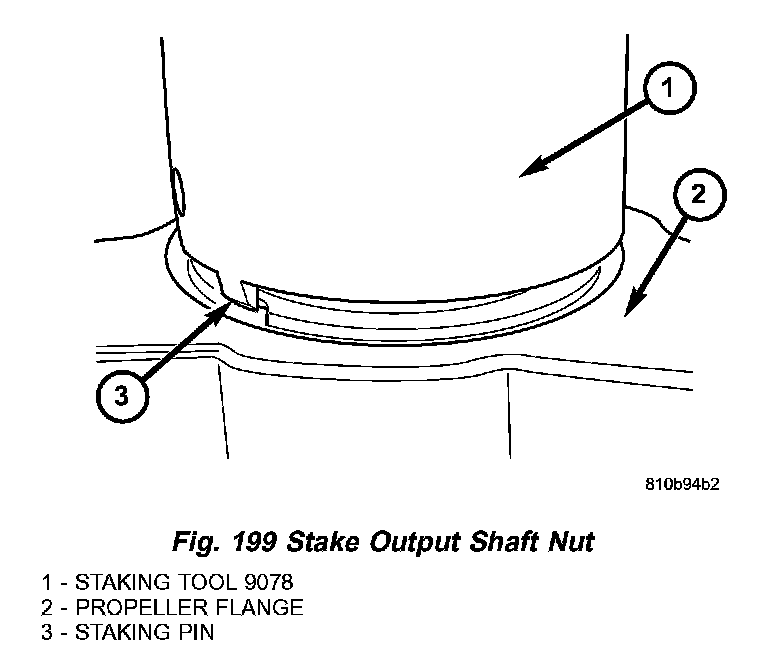

7. Press downward on the staking tool until the staking pin (3) contacts the output shaft nut flange (2) (Fig. 199).
8. Strike the Driver handle C 4171 with a suitable hammer until the output shaft nut is securely staked to the output shaft.
9. Install the propeller shaft.
