Spare Tire: Service and Repair

SPARE TIRE CARRIER

REMOVAL
1. Open the back doors.

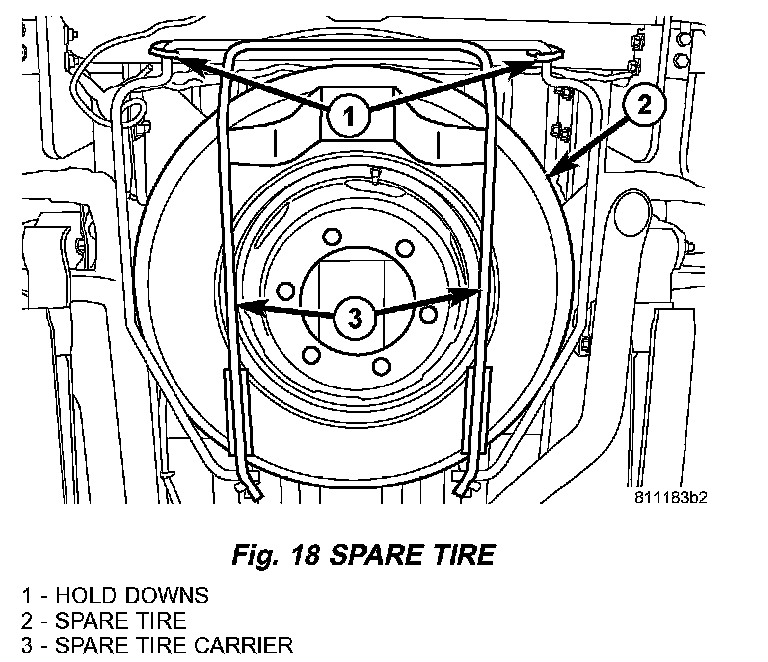

2. Loosen the bolts for the spare tire hold down (Fig. 18).





3. Push up on the spare tire carrier and push the hold downs to the side and lower (Fig. 18).
4. Remove the spare tire.

INSTALLATION
1. Install the spare tire to the spare tire carrier (Fig. 18).
2. Raise the tire and wheel assembly and hook on the hold downs (Fig. 18).
3. Then tighten the hold downs to secure the spare tire in place and then close the doors.
