Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Specifications

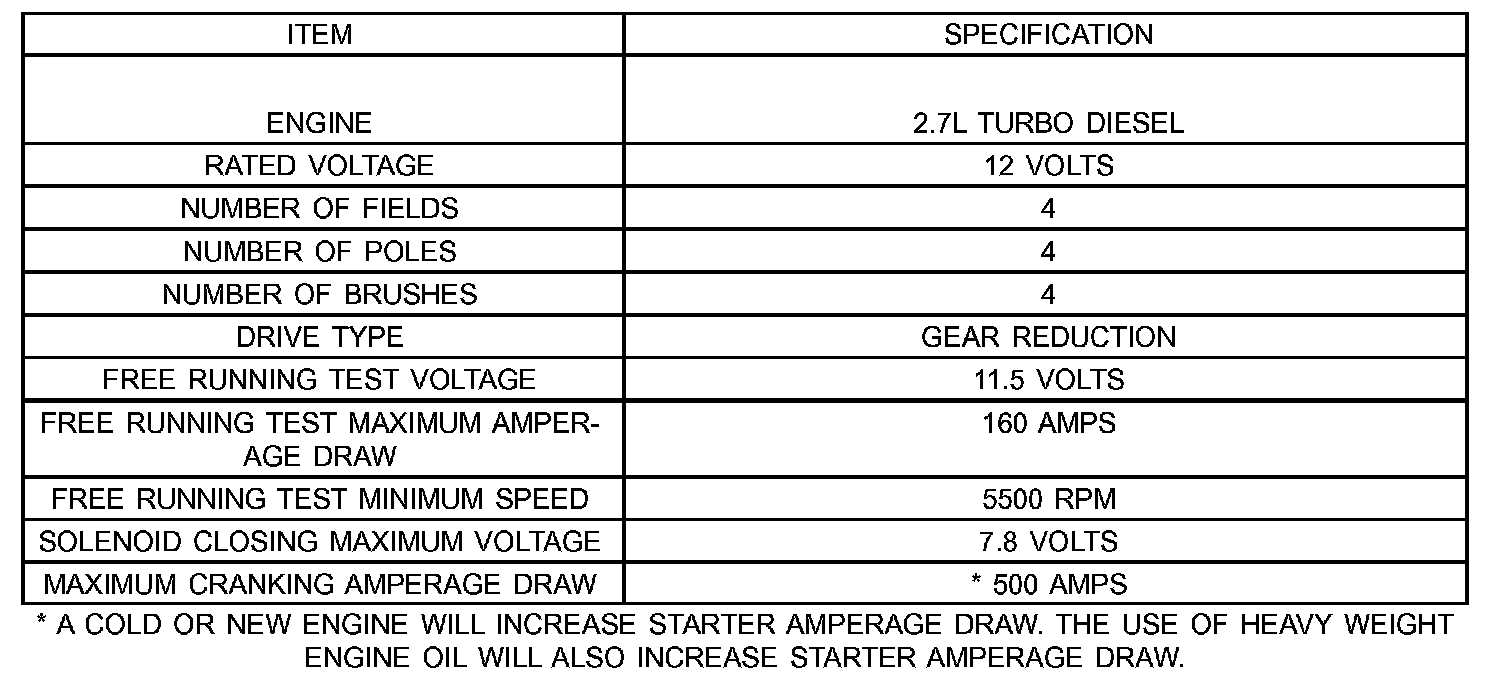

Starter Motor: Specifications

Specifications - Starter Motor - Diesel:
