Connector Locations

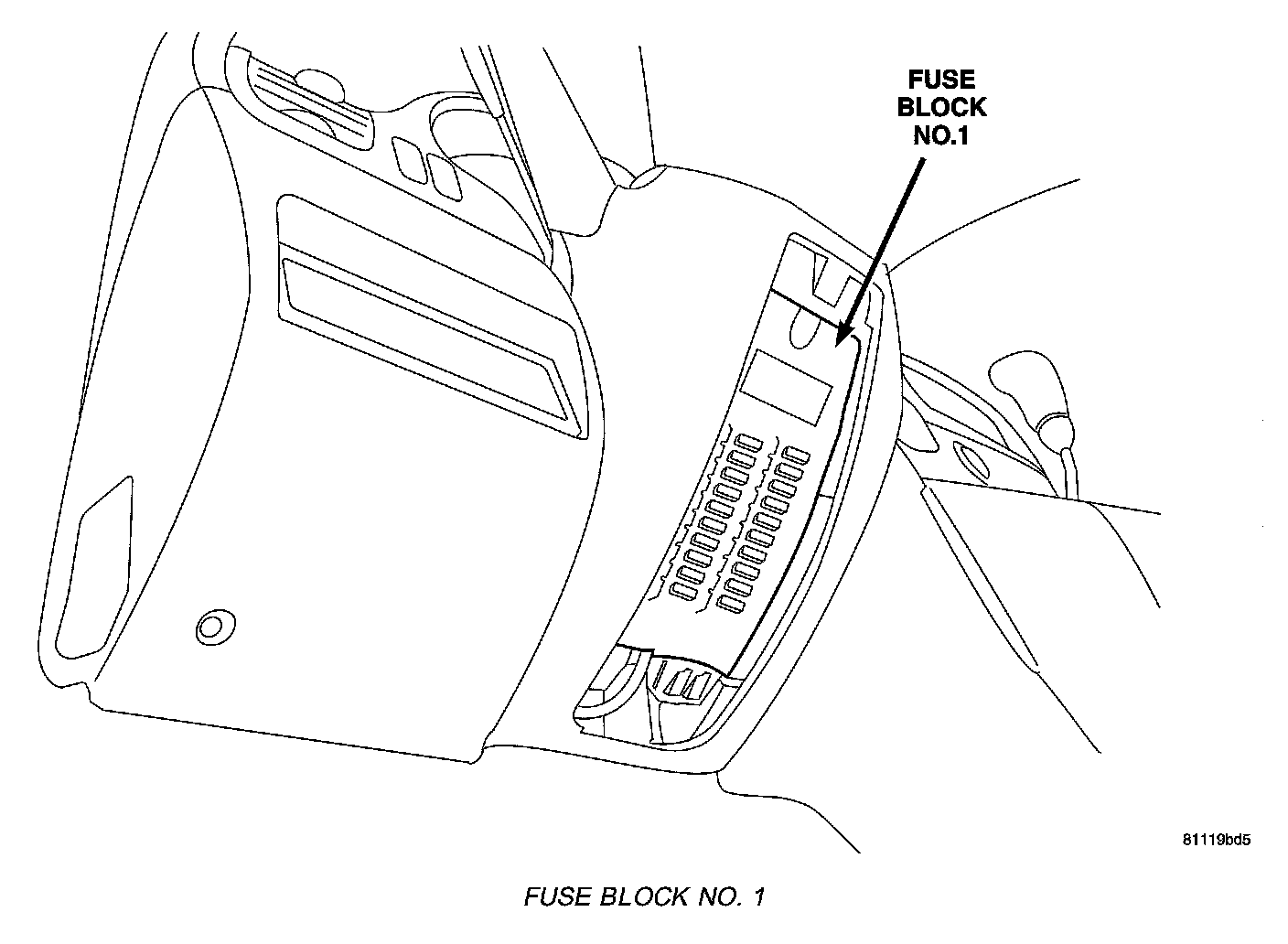

Fuse Block No.1:



Steering Columns And Pedals:

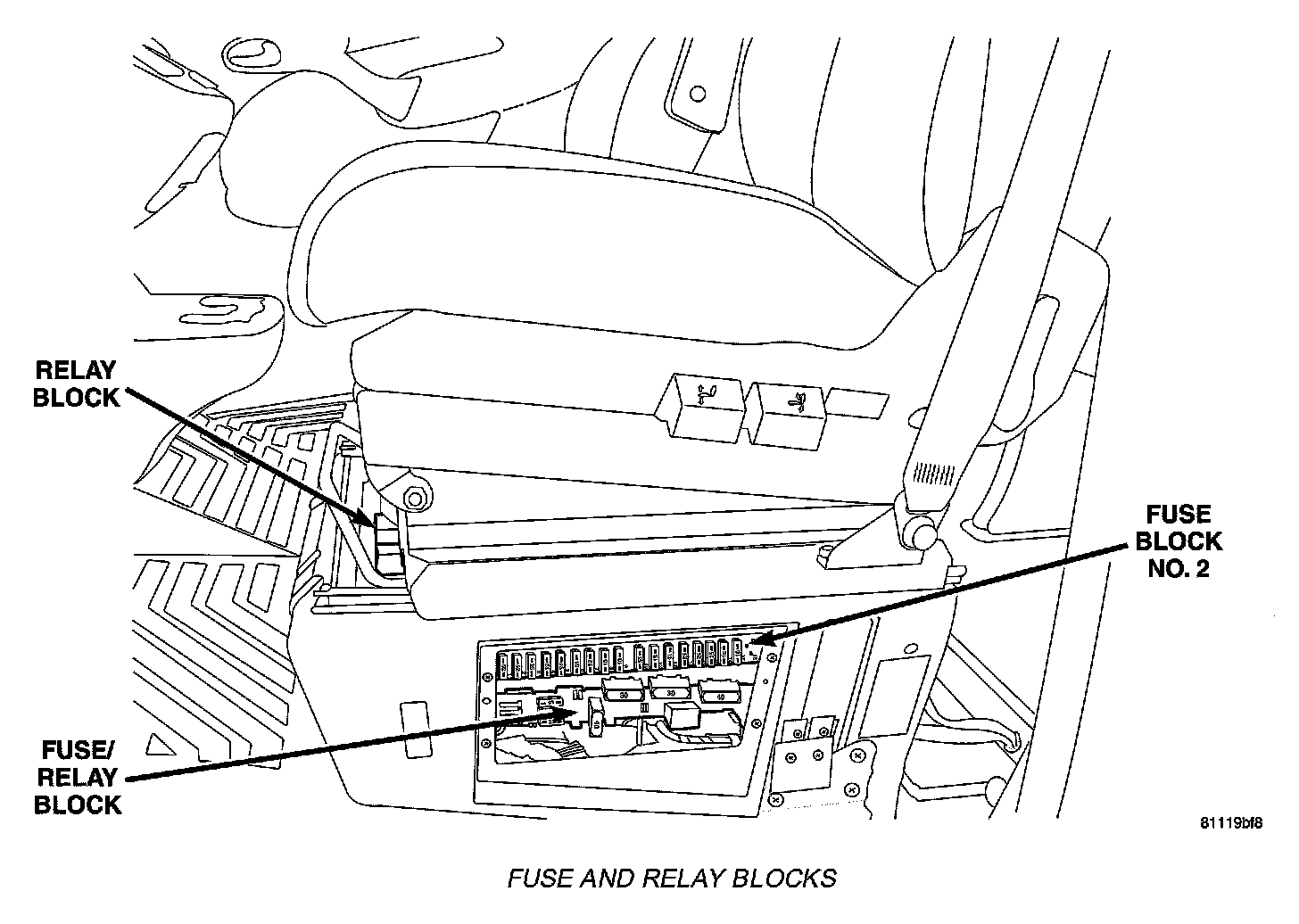

Fuse And Relay Blocks:

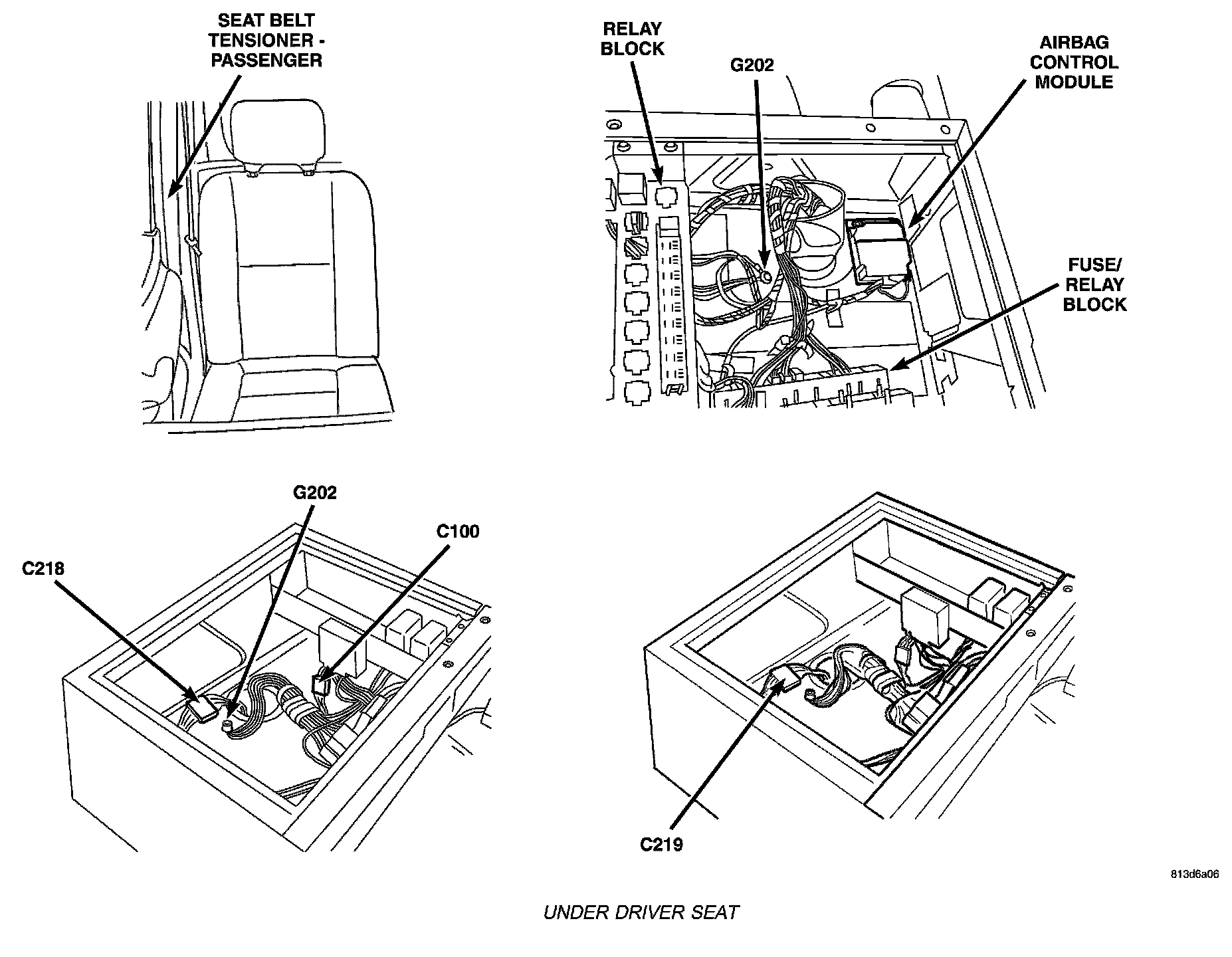

Under Driver Seat:
