Interior Light Switch: Diagrams

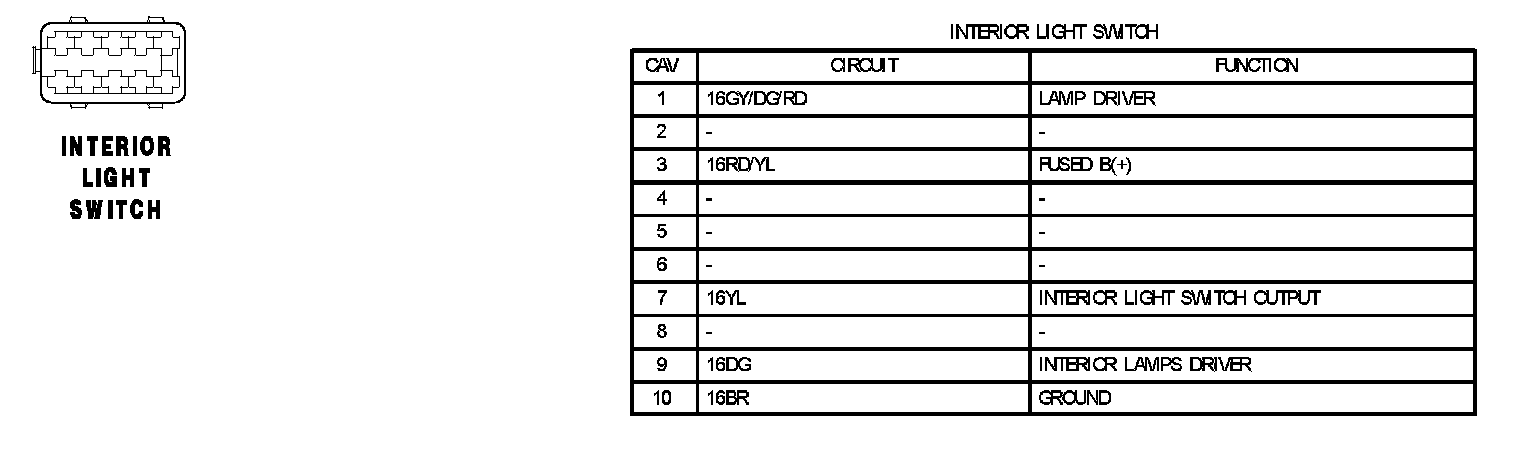

Interior Light Switch:

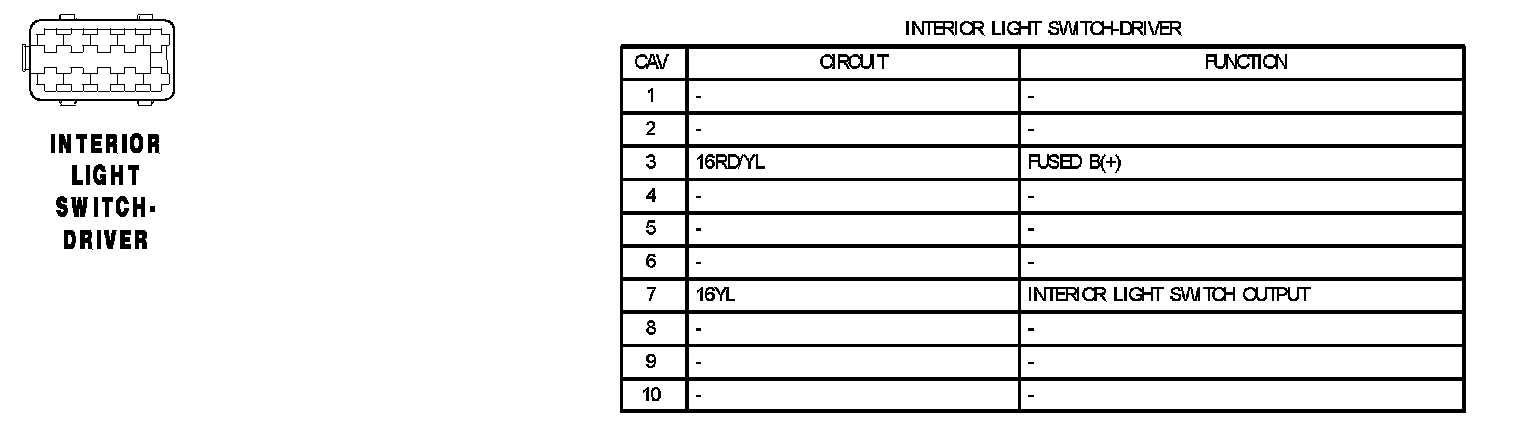

Interior Light Switch Driver:

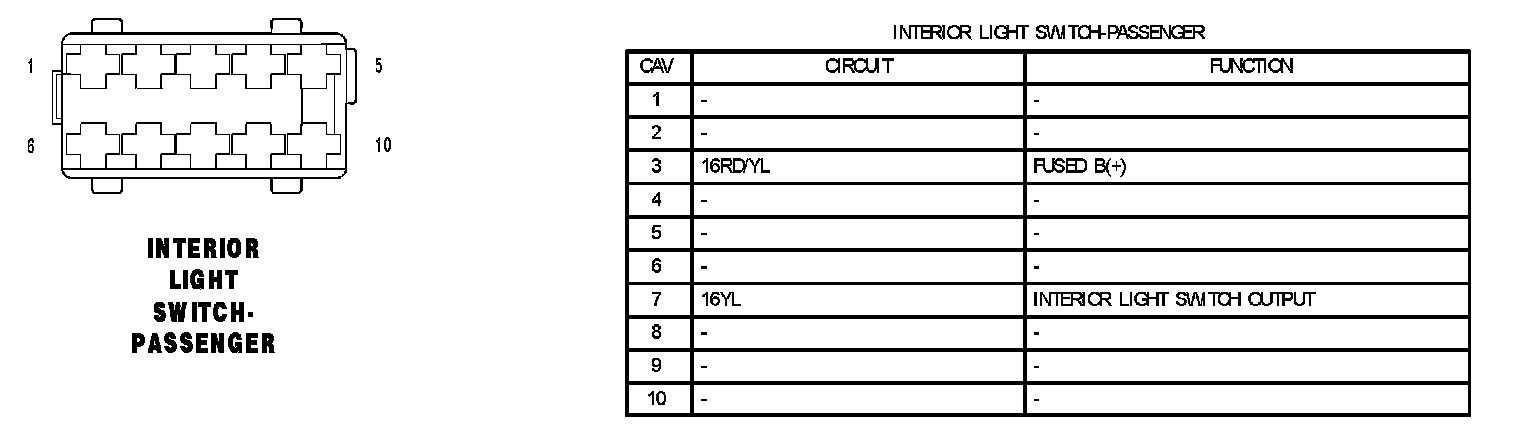

Interior Light Switch Passenger:

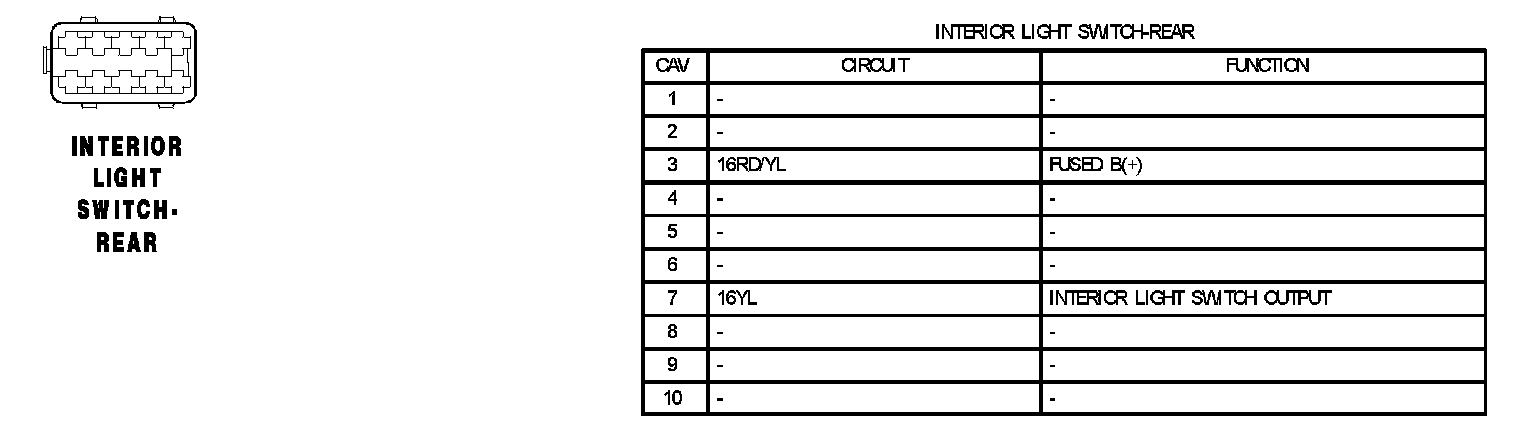

Interior Light Switch Rear:
