Freightliner Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Instrument Panel
>>
Door Switch
>>
Locations
Door Switch: Locations

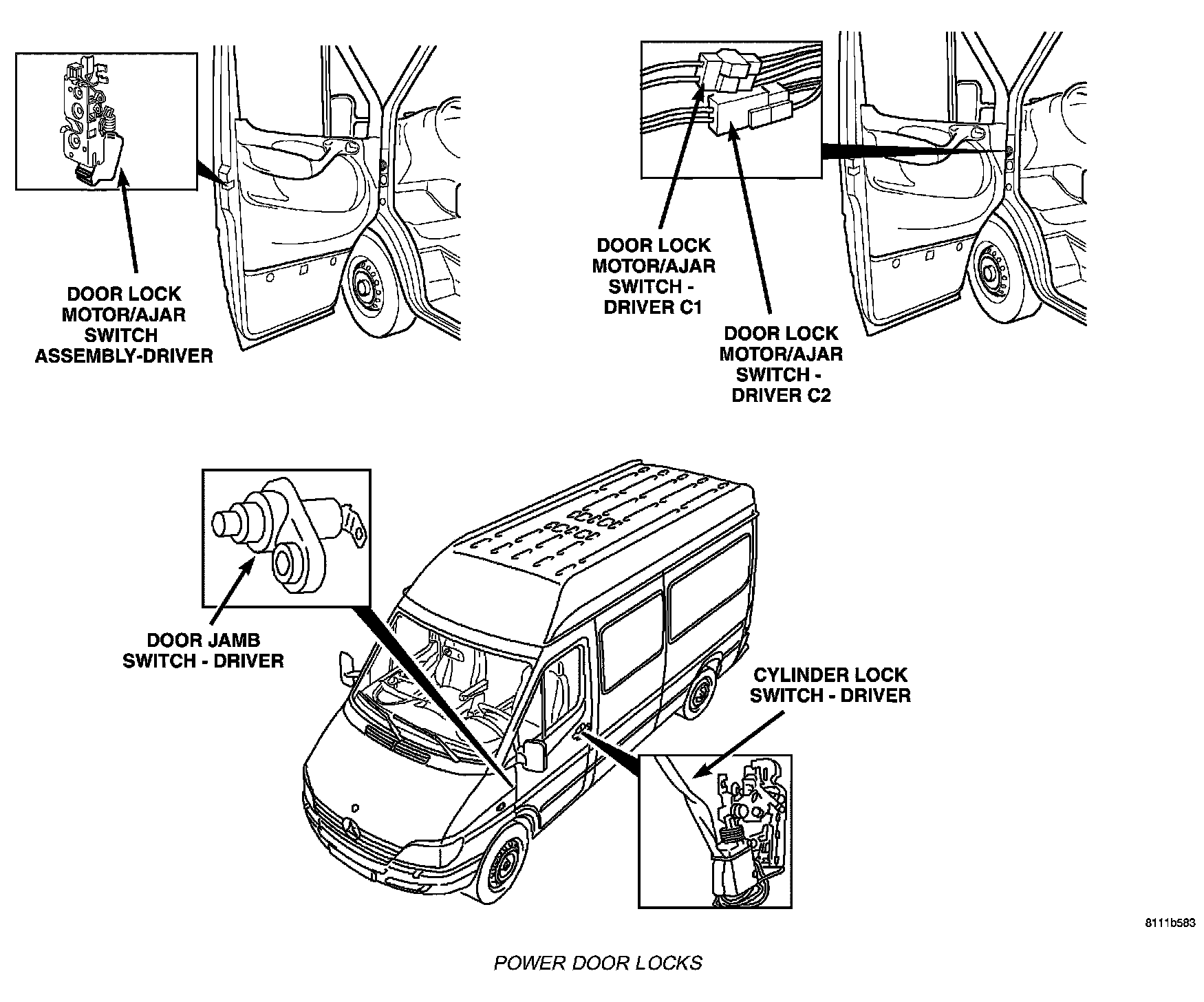

Power Door Locks:

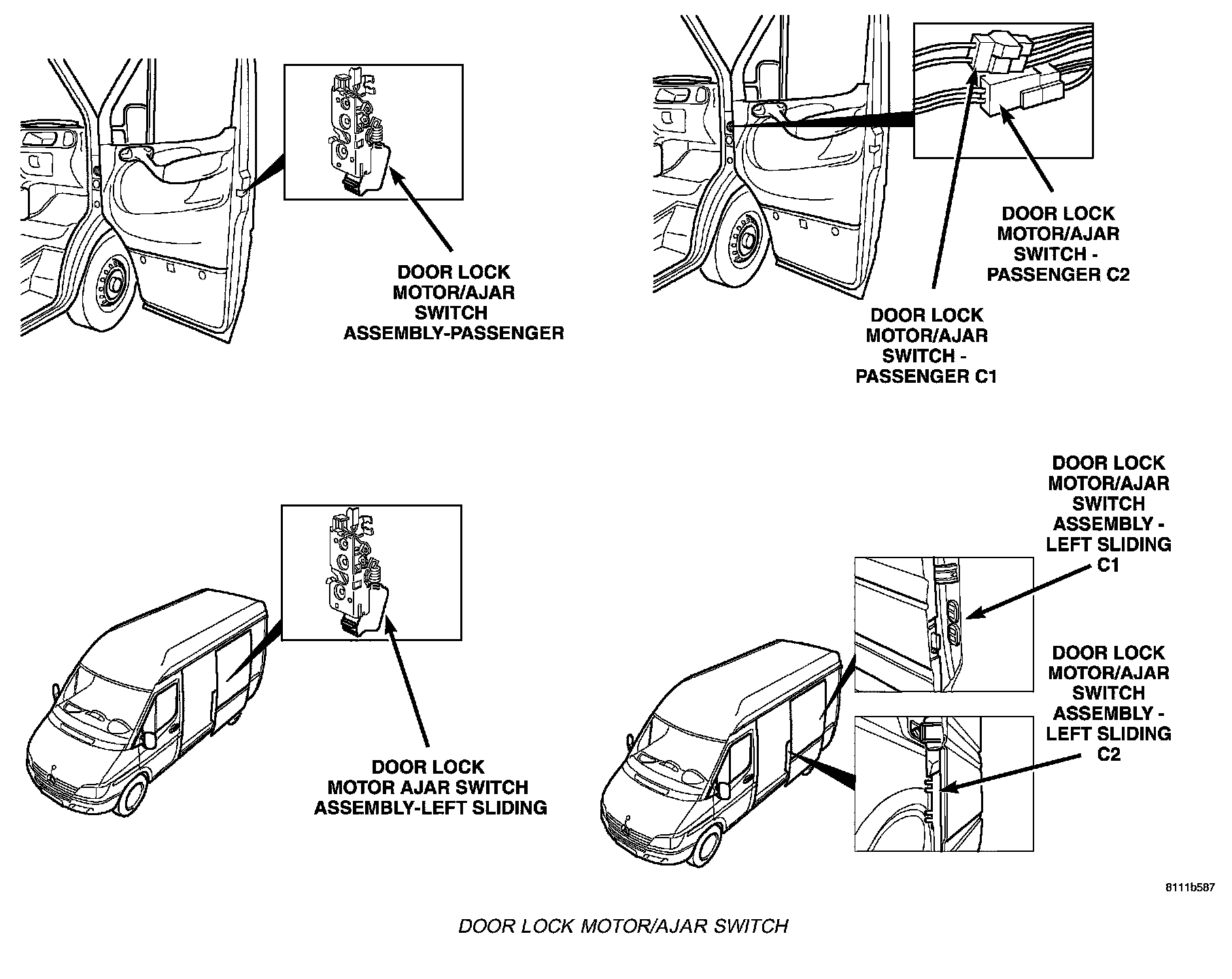

Door Lock Motor/Ajar Switch:
