Tone Wheel

TONE WHEEL

REMOVAL
1. Remove the hub/bearing assembly (DRW).

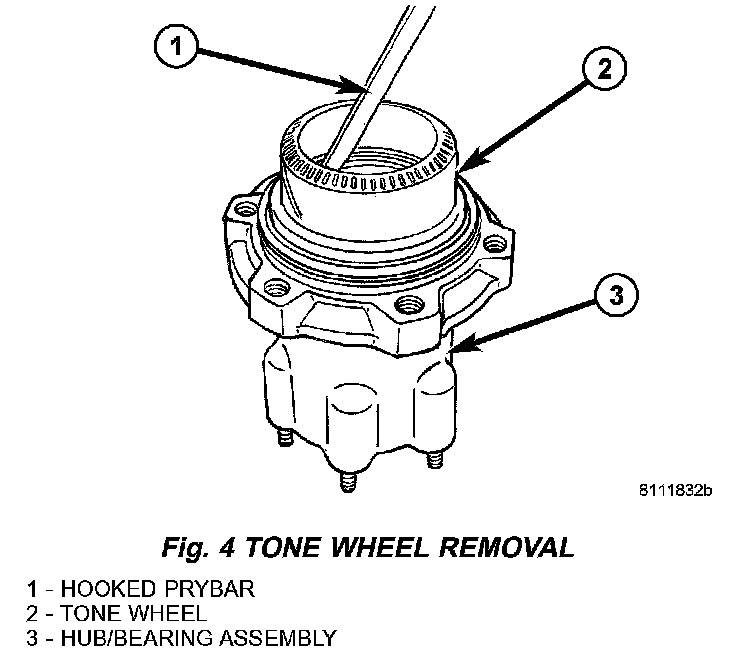

2. Insert a hooked prybar between the hub/bearing and the inside of the tone wheel and pry upwards slightly and work your way around the tone wheel until the wheel is loose (Fig. 4).
3. Remove the tone wheel.

INSTALLATION
1. Install the tone wheel to the hub/bearing with a thin bead of silicone around the tone wheel.
2. Tap the tone wheel down with a soft hammer until seated.
3. Install the hub/bearing (DRW).
