Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Auxiliary Cabin Heater Control Module >> Diagrams >> Cabin Heater Module

Cabin Heater Module

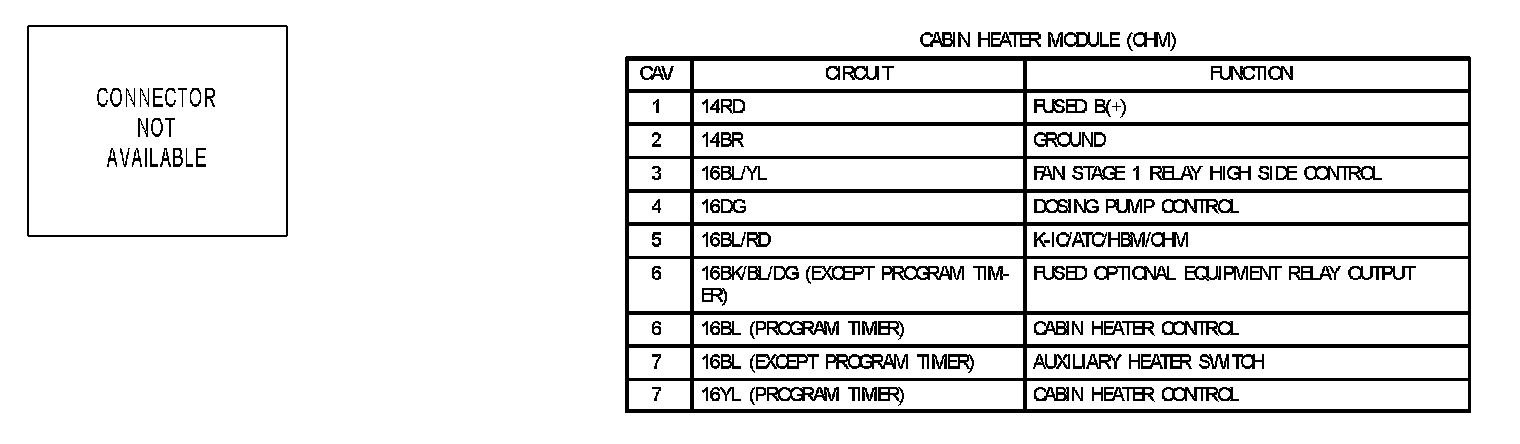

Cabin Heater Module (CHM):
