Turbocharger: Service and Repair

REMOVAL

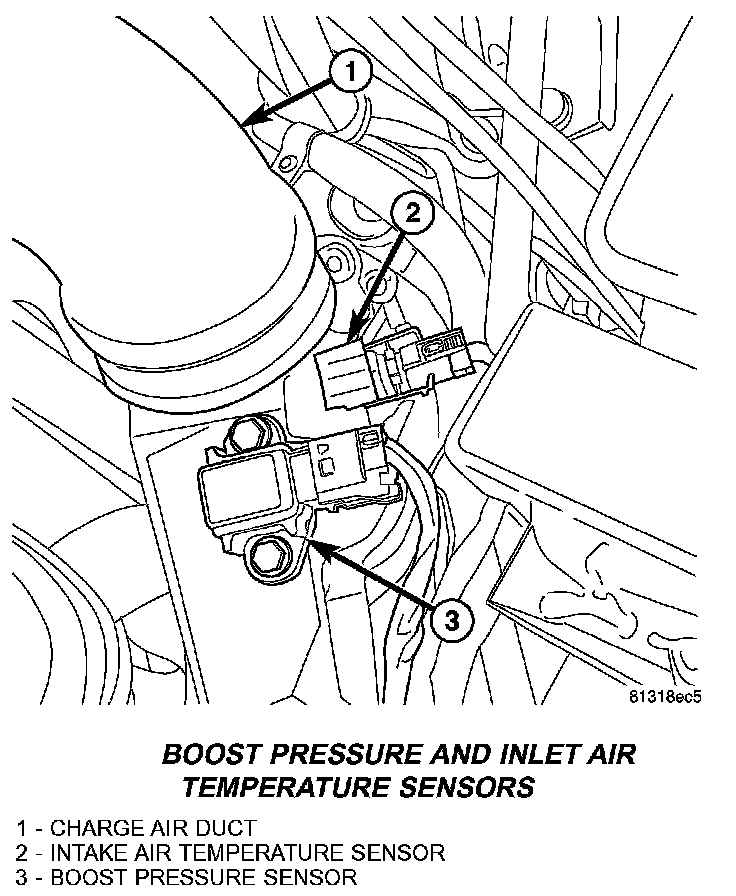

Boost Pressure And Inlet Air Temperature Sensors:

1. Disconnect the negative battery cable.
2. Unplug the electrical connector.
3. Remove the sensor retaining bolts, remove the sensor and 0-ring.

INSTALLATION
1. Inspect boost pressure sensor 0-ring for cuts or abrasions, replace as necessary.

Boost Pressure And Inlet Air Temperature Sensors:

2. Position the boost pressure sensor above access hole in the charge air pipe and push down to fit flush .
3. Install the bolts and tighten to 44 lbs.in. (5 Nm).
