Freightliner Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Driveability - Diesel
>>
Checking the Fuel Quantity Solenoid Circuits
Checking the Fuel Quantity Solenoid Circuits

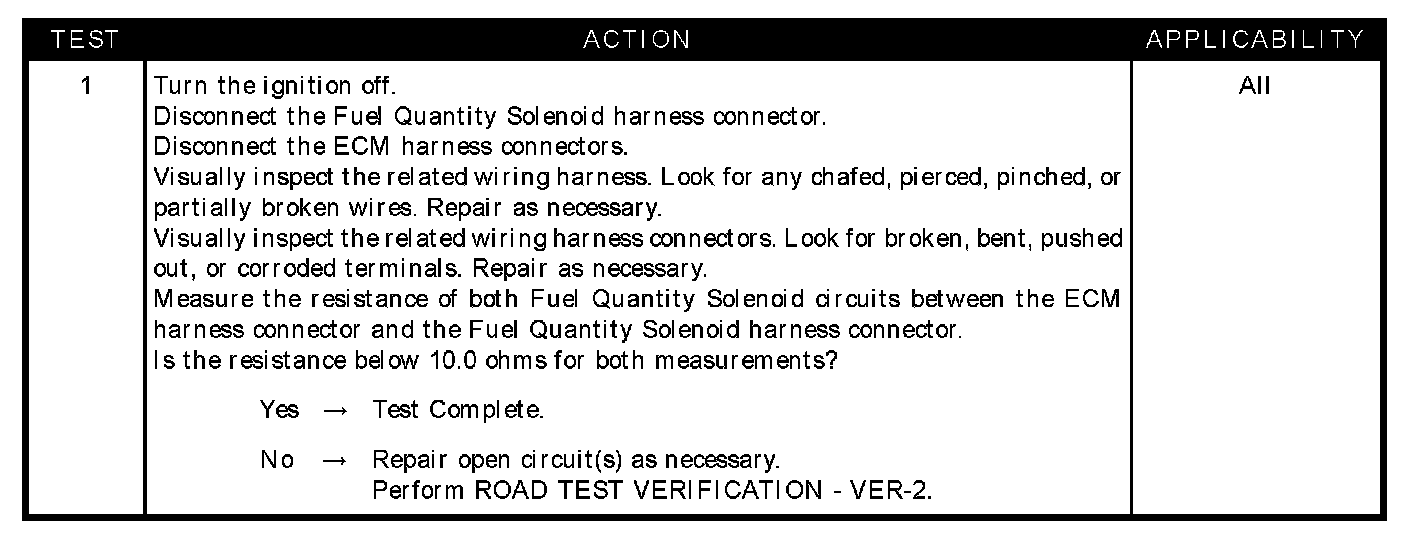

Test 1:
SYMPTOM
CHECKING THE FUEL QUANTITY
SOLENOID
CIRCUITS
POSSIBLE CAUSES
-
open circuits
