Rear Suction Line

Rear A/C Suction Line:

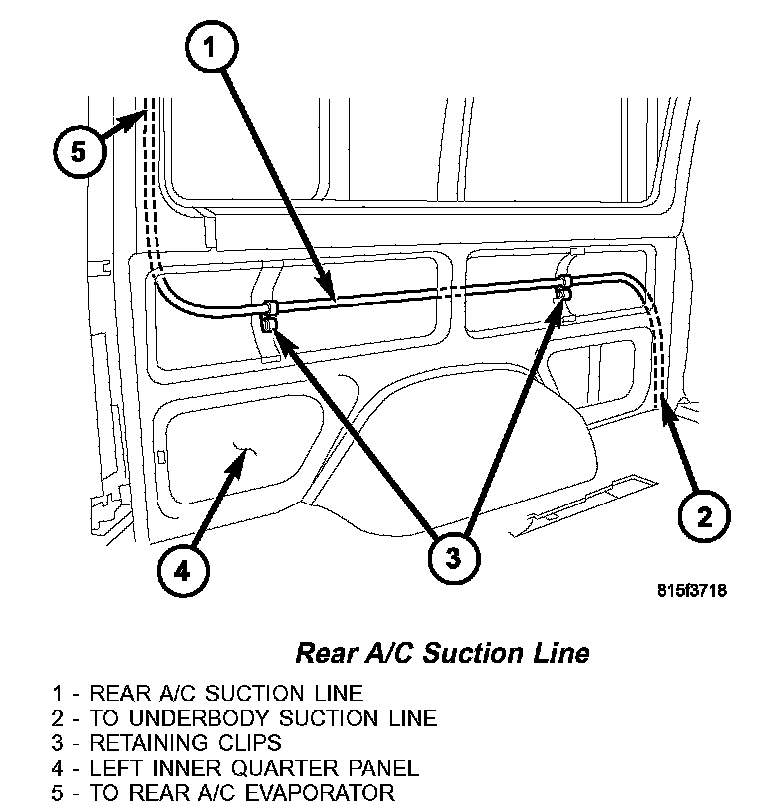

The rear A/C suction line is the refrigerant line that carries refrigerant from the rear A/C evaporator to the A/C underbody suction line. The rear A/C suction line is retained to the left quarter panel by two plastic retaining clips.

CAUTION: Use only seals specified for the vehicle. Failure to use the correct seals will cause the refrigerant system connections to leak.

The rear A/C suction line has no serviceable parts except for the O-ring seals. The O-ring seals used on the connections are made from a special type of rubber not affected by R-134a refrigerant and must be replaced whenever the rear A/C suction line is removed and installed.

If the rear A/C suction line is found to be leaking or damaged, it must be replaced.
