Front Parking/Side Marker/Turn Signal Lamp Bulb Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.

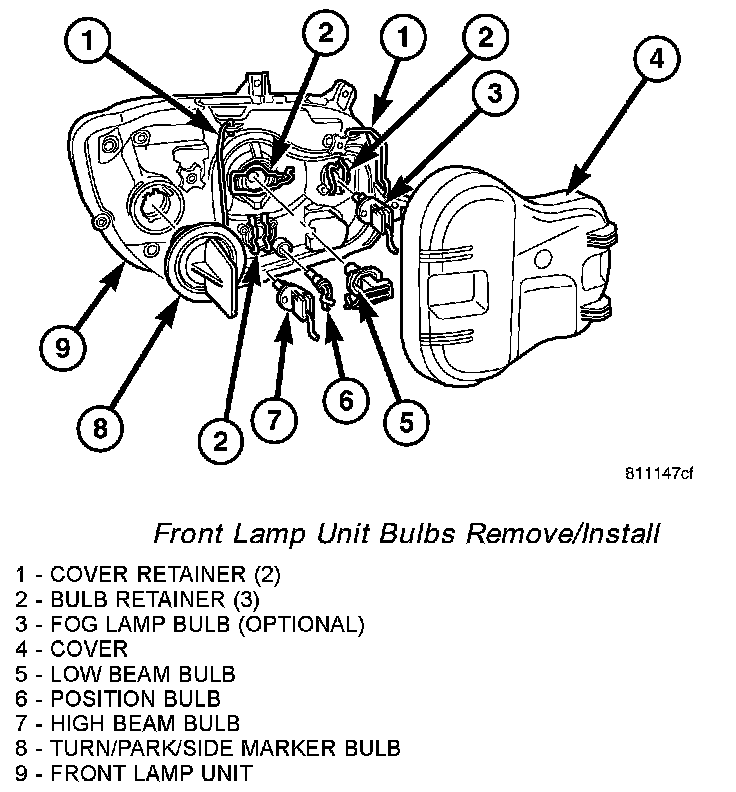

Front Lamp Unit Bulbs Remove/Install:

2. Locate the turn/park/side marker bulb holder on the rear outboard side of the front lamp unit housing.

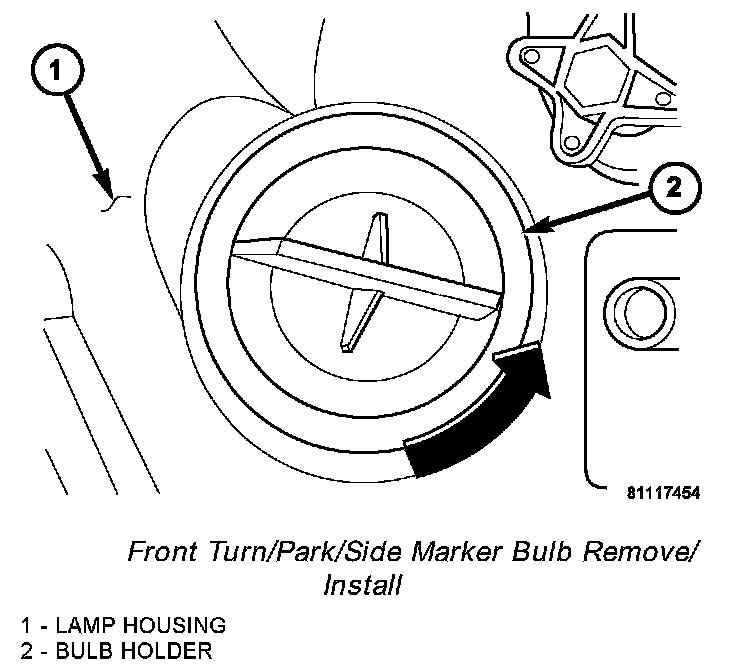

Front Turn/Park/Side Market Bulb Remove/Install:

3. Rotate the bulb holder counterclockwise about 30 degrees and pull it straight out from the lamp housing.
4. Remove the bulb from the front turn/park/side marker bulb holder.

INSTALLATION
1. Install the bulb into the front turn/park/side marker bulb holder.
2. Insert the bulb holder straight into the front lamp unit housing and rotate the bulb holder clockwise about 30 degrees to lock it into place.
3. Reconnect the battery negative cable.
