Removal and Replacement

Remove/install
1 Remove rear bumper
2 Unscrew screw (2) with nut
3 Unscrew screw (4) and remove rear-end door step
4 Install in the reverse order

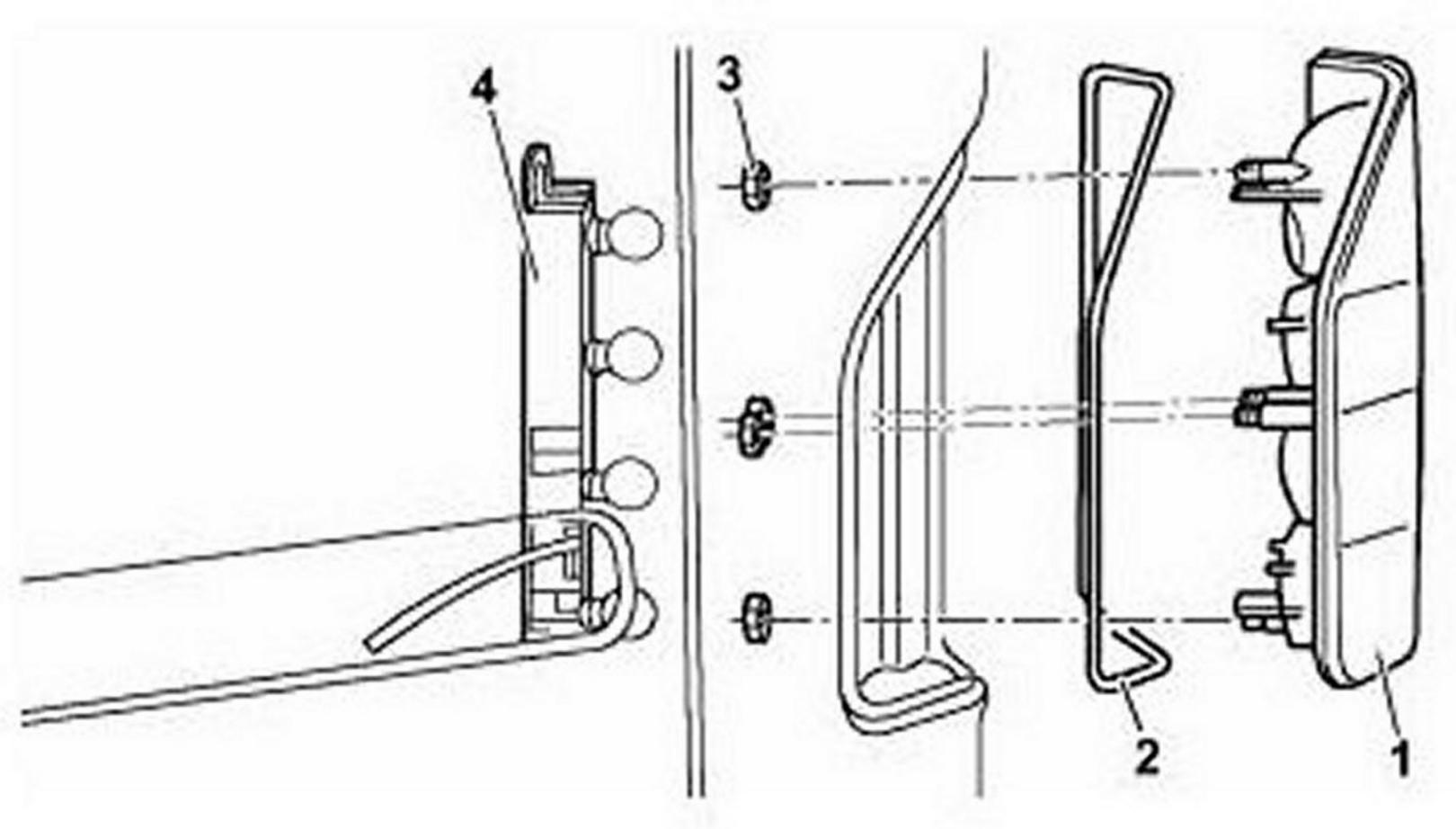

Remove/install taillamp




1 Taillamp lens
2 Gasket
3 Nut
4 Lamp carrier

Remove/install

1 Unclip lamp carrier (arrows) and take out
2 Turn down nut (3), remove taillamp
Installation: Check seal (2).

3 Install in the reverse order
