Door Switch: Diagrams

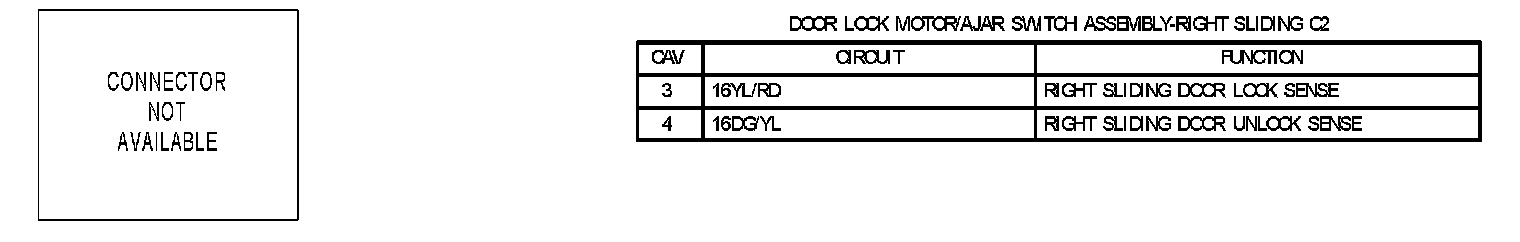

Door Lock Motor/Ajar Switch Assembly - Right Sliding C2:

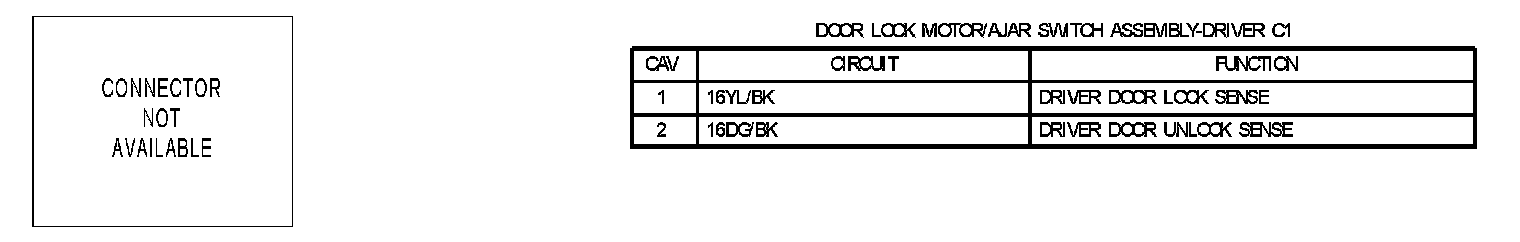

Door Lock Motor/Ajar Switch Assembly - Driver C1:

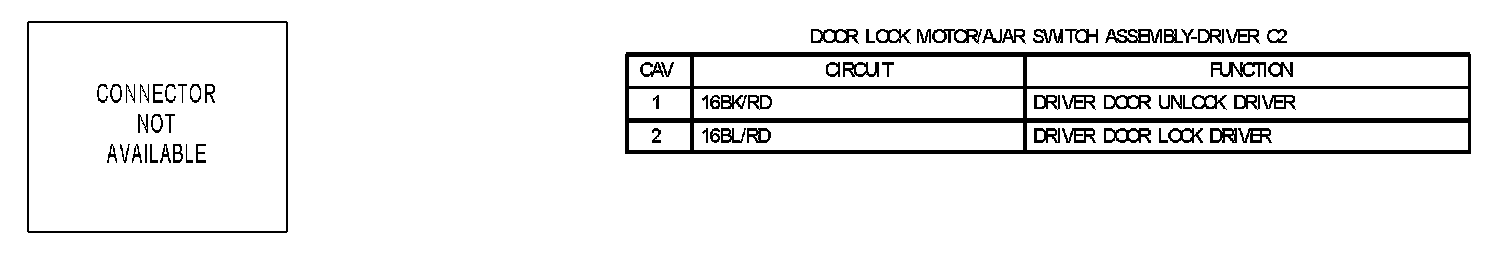

Door Lock Motor/Ajar Switch Assembly - Driver C2:

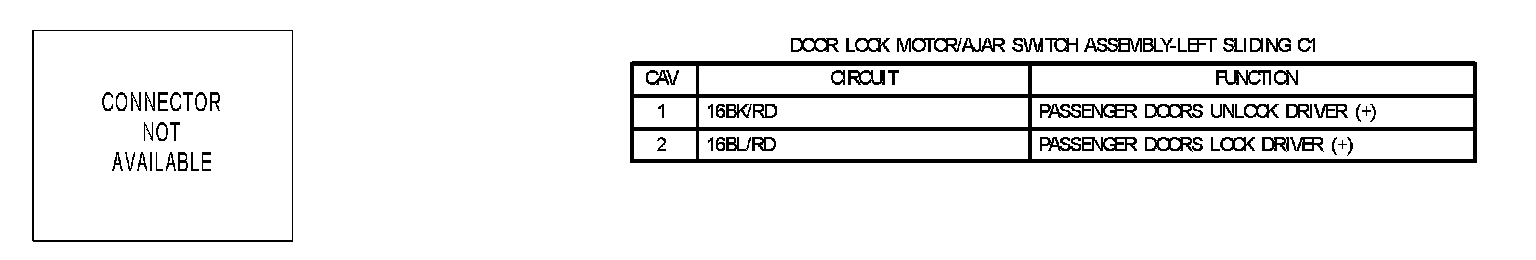

Door Lock Motor/Ajar Switch Assembly - Left Sliding C1:

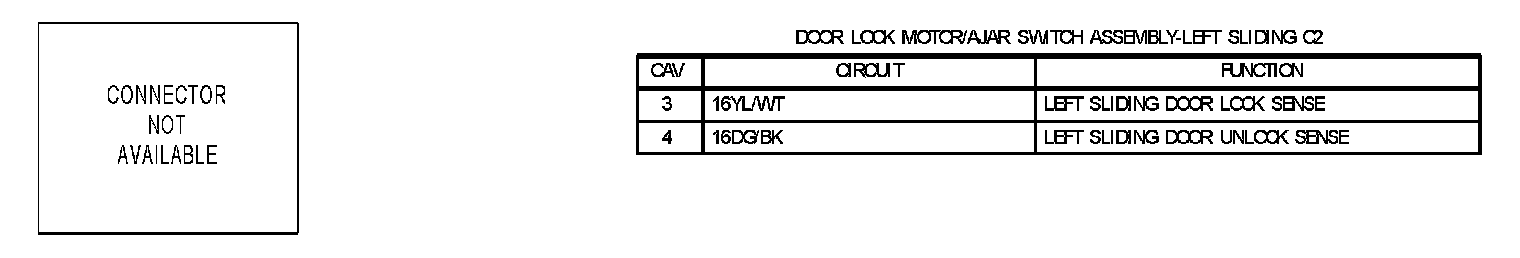

Door Lock Motor/Ajar Switch Assembly - Left Sliding C2:

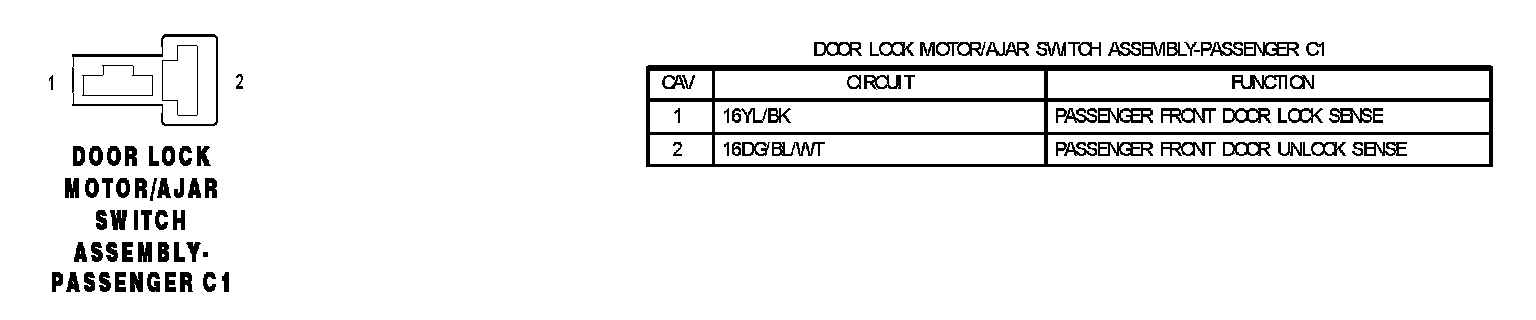

Door Lock Motor/Ajar Switch Assembly - Passenger C1:

Door Lock Motor/Ajar Switch Assembly - Passenger C2:

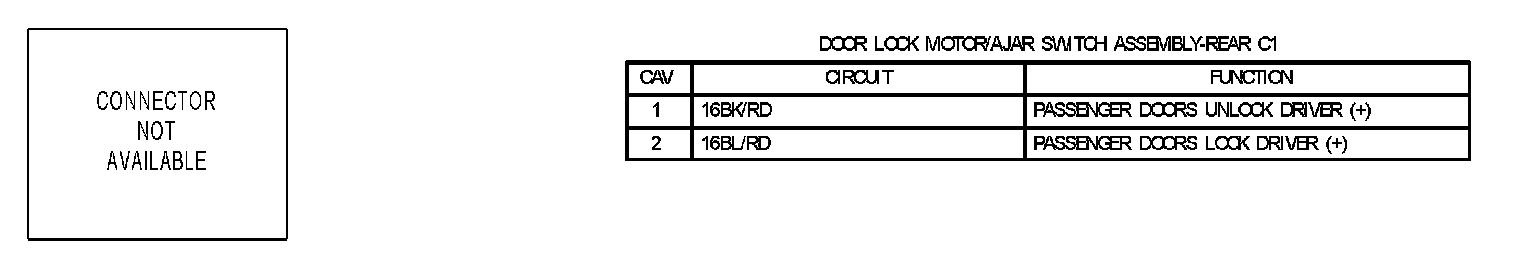

Door Lock Motor/Ajar Switch Assembly - Rear C1:

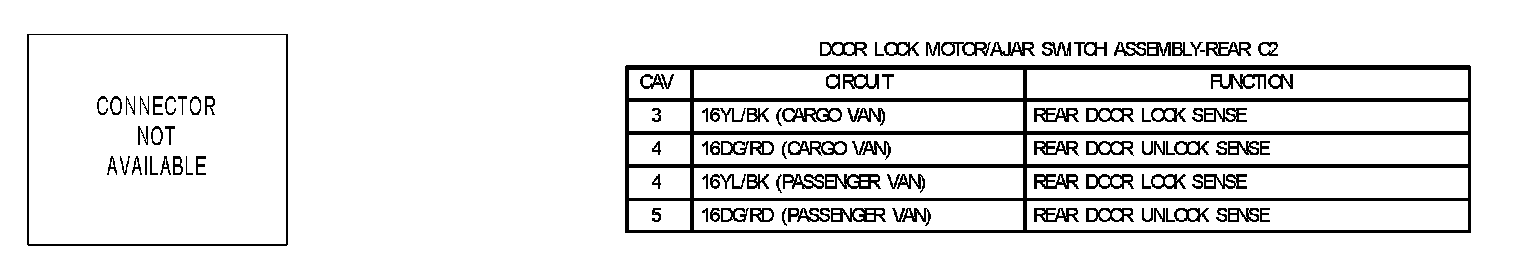

Door Lock Motor/Ajar Switch Assembly - Rear C2:

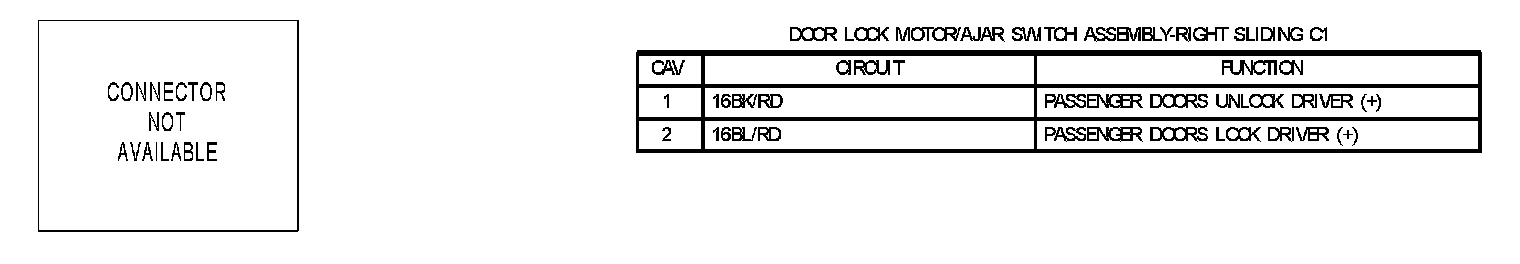

Door Lock Motor/Ajar Switch Assembly - Right Sliding C1:
