Front Position Lamp Bulb

REMOVAL
1. Disconnect and isolate the battery negative cable.

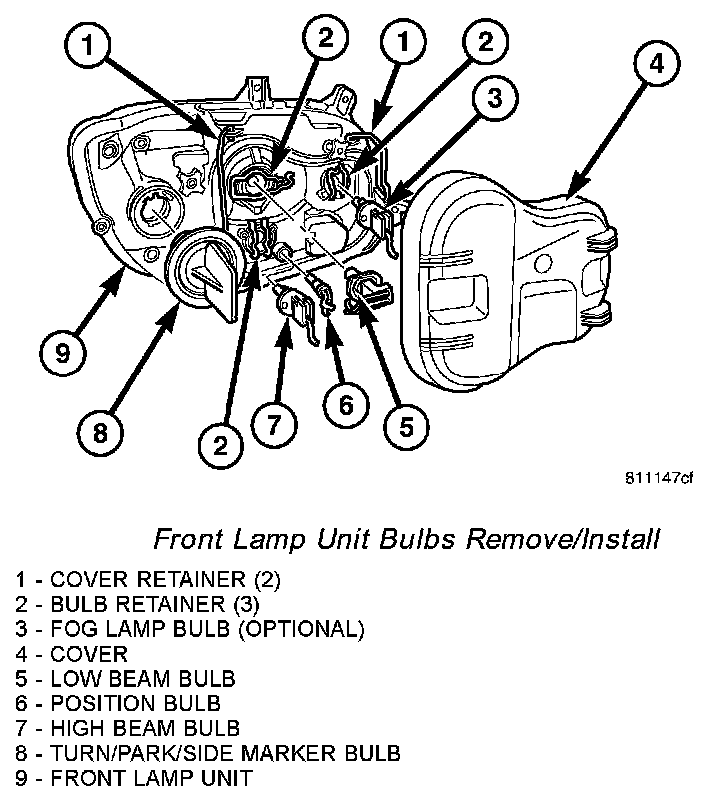

Front Lamp Unit Bulbs Remove/Install:

2. Disengage and swing the retainers that secure the front lamp unit rear cover to each side of the lamp housing and remove the cover.

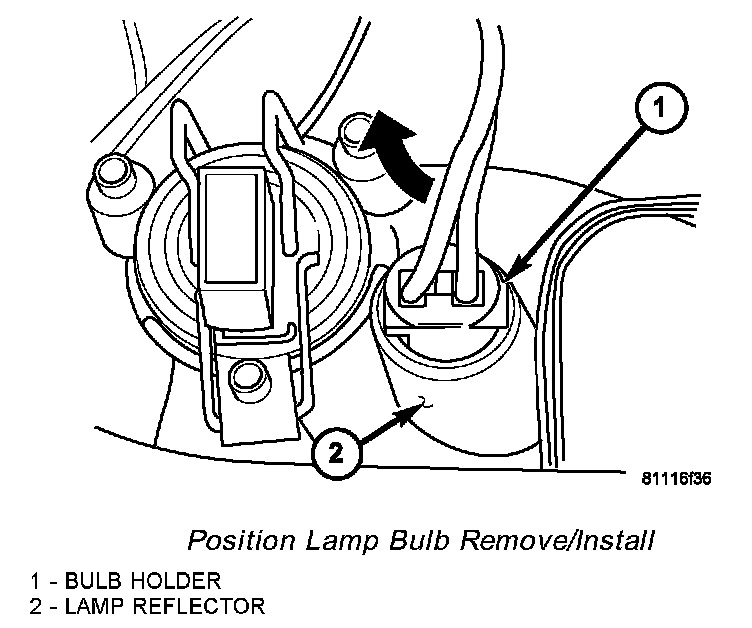

Position Lamp Bulb Remove/Install:

3. Pull the position lamp bulb holder straight out to remove it from the front lamp unit reflector.
4. Remove the position lamp bulb from the bulb holder.

INSTALLATION
1. Install the position lamp bulb into the bulb holder.
2. Push the position lamp bulb holder straight into the mounting hole in the front lamp unit reflector.
3. Position the front lamp unit rear cover onto the lamp housing and engage the retainers over each side of the cover to secure it.
4. Reconnect the battery negative cable.
