License Plate Lamp Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the license plate lamp unit from its mounting location, but do not disconnect it from the vehicle wire harness.

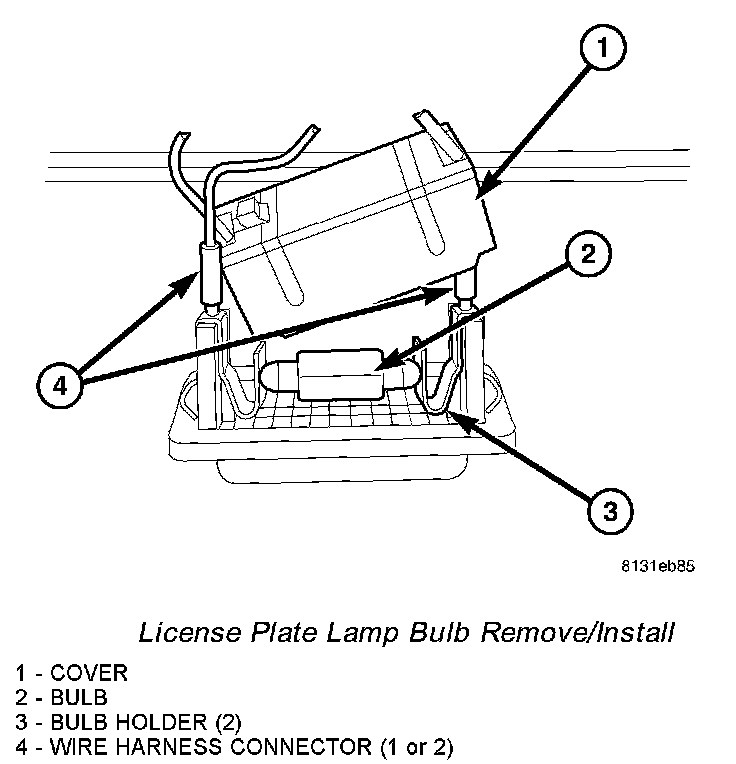

License Plate Lamp Bulb Remove/Install:

3. Remove the cover from the back of the lamp housing.
4. Grasp the lamp housing firmly in one hand, then disengage the bulb from between the bulb holders with the other hand.

INSTALLATION
1. Grasp the license plate lamp housing firmly in one hand, then engage the bulb between the bulb holders with the other hand.
2. Reinstall the cover onto the back of the lamp housing.
3. Reinstall the license plate lamp unit to its mounting location.
4. Reconnect the battery negative cable.
