Low Beam Headlamp Bulb

REMOVAL
1. Disconnect and isolate the battery negative cable.

Front Lamp Unit Bulbs Remove/Install:

2. Disengage and swing the retainers that secure the front lamp unit rear cover to each side of the lamp housing and remove the cover.

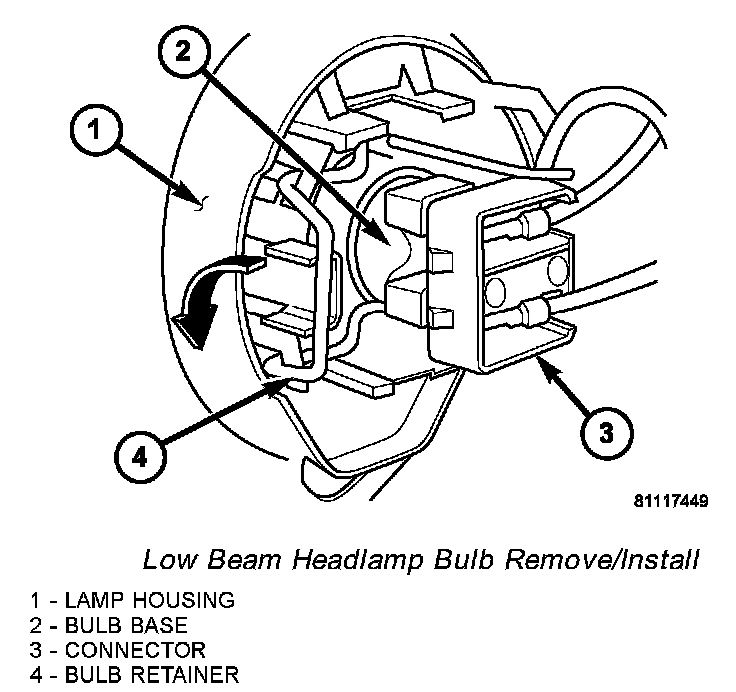

Low Beam Headlamp Bulb Remove/Install:

3. Disconnect the front lamp unit wire harness connector from the low beam headlamp bulb base.
4. Disengage the low beam headlamp bulb retainer by pushing it slightly toward the front lamp unit housing and downward from the bulb base, then pivot the retainer off of the bulb base.
5. Remove the low beam headlamp bulb from the integral bulb holder on the front lamp unit reflector.

INSTALLATION
1. Position the low beam headlamp bulb into the integral bulb holder on the front lamp unit reflector.
1. Be certain that the lugs on the bulb base are engaged in the recesses of the bulb holder.
2. Engage the low beam headlamp bulb retainer by pivoting it over the bulb base, pressing it slightly toward the front lamp unit housing and upward toward the side of the bulb base.
3. Reconnect the front lamp unit wire harness connector to the low beam headlamp bulb base.
4. Position the front lamp unit rear cover onto the lamp housing and engage the retainers over each side of the cover to secure it.
5. Reconnect the battery negative cable.
