High Beam Headlamp Bulb

REMOVAL
1. Disconnect and isolate the battery negative cable.

Front Lamp Unit Bulbs Remove/Install:

2. Disengage and swing the retainers that secure the front lamp unit rear cover to each side of the lamp housing and remove the cover.

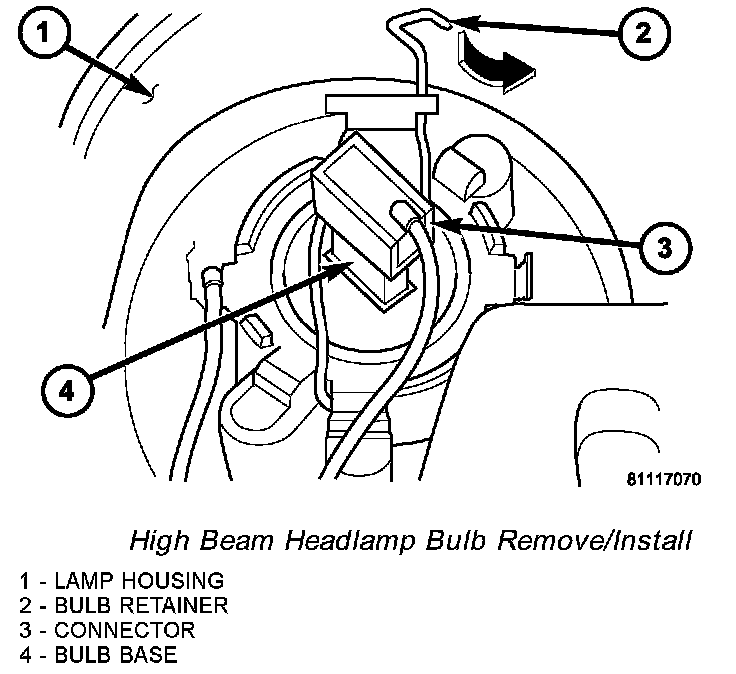

High Beam Headlamp Bulb Remove/Install:

3. Disconnect the front lamp unit wire harness connector from the high beam headlamp bulb base.
4. Disengage the high beam headlamp bulb retainer by pushing it slightly toward the front lamp unit housing and outward from the bulb base, then pivot the retainer off of the bulb base.
5. Remove the high beam headlamp bulb from the integral bulb holder on the front lamp unit reflector.

INSTALLATION
1. Position the high beam headlamp bulb into the integral bulb holder on the front lamp unit reflector. Be certain that the lugs on the bulb base are engaged in the recesses of the bulb holder.
2. Engage the high beam headlamp bulb retainer by pivoting it over the bulb base, pressing it slightly outward from the bulb base and toward the front lamp unit housing, then inward toward the side of the bulb base.
3. Reconnect the front lamp unit wire harness connector to the high beam headlamp bulb base.

Front Lamp Unit Bulbs Remove/Install:

4. Position the front lamp unit rear cover onto the lamp housing and engage the retainers over each side of the cover to secure it.
5. Reconnect the battery negative cable.
