Fog/Driving Lamp Bulb: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

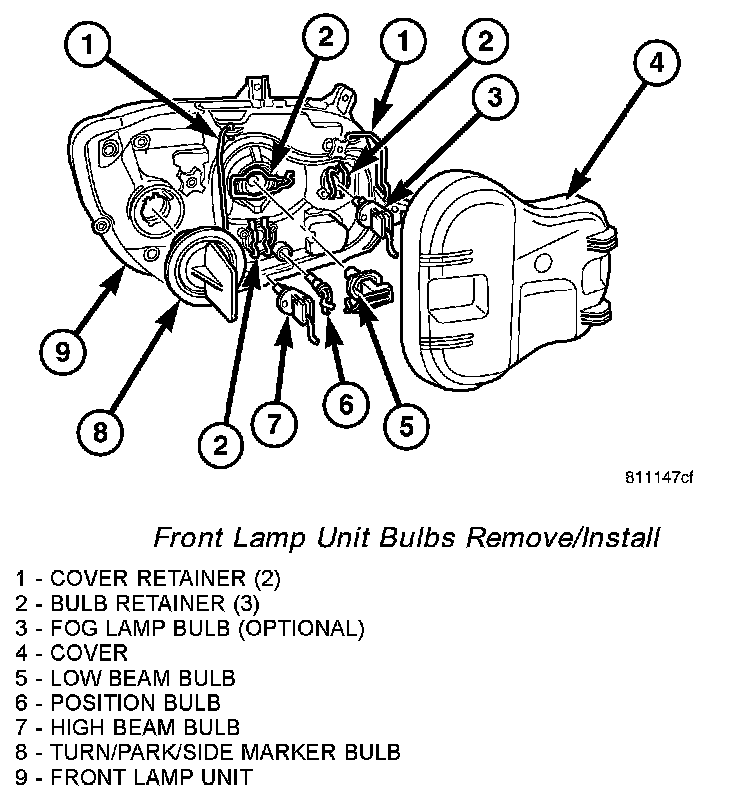

Front Lamp Unit Bulbs Remove/Install:

2. Disengage and swing the retainers that secure the front lamp unit rear cover to each side of the lamp housing and remove the cover.

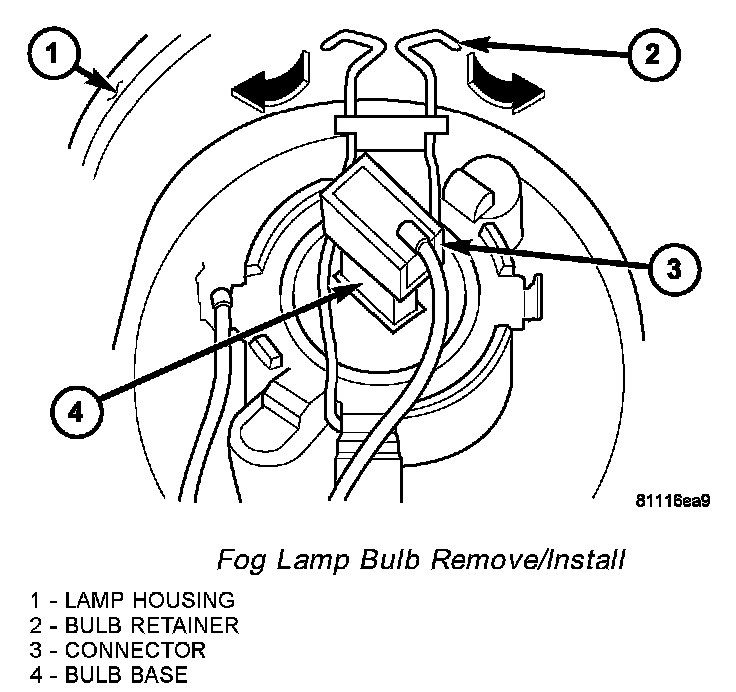

Fog Lamp Bulb Remove/Install:

3. Disconnect the front lamp unit wire harness connector from the fog lamp bulb base.
4. Disengage the two fog lamp bulb retainers by pushing them slightly toward the front lamp unit housing, outward to each side of the bulb base, then pivot the retainers off of the bulb base.
5. Remove the fog lamp bulb from the integral bulb holder on the front lamp unit reflector.

INSTALLATION
1. Position the fog lamp bulb into the integral bulb holder on the front lamp unit reflector. Be certain that the lugs on the bulb base are engaged in the recesses of the bulb holder.
2. Engage the two fog lamp bulb retainers by pivoting them over the bulb base, pressing them slightly toward the front lamp unit housing, then inward on each side of the bulb base.
3. Reconnect the front lamp unit wire harness connector to the fog lamp bulb base.
4. Position the front lamp unit rear cover onto the lamp housing and engage the retainers over each side of the cover to secure it.
5. Reconnect the battery negative cable.
