Dome Lamp/Intrusion Sensor Bulb

REMOVAL
1. Disconned and isolate the battery negative cable.
2. Remove the dome lamp/intrusion sensor unit from its mounting location, but do not disconned the vehicle wire harness from the lamp connector receptacle.

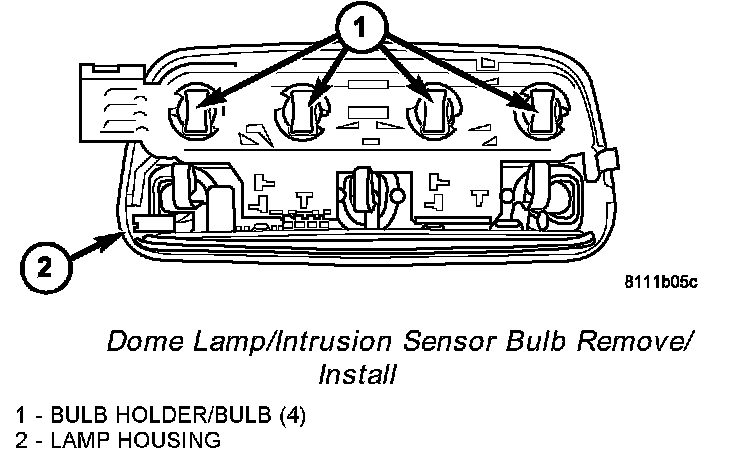

Dome Lamp/Intrusion Sensor Bulb Remove/Install:

3. Grasp the lamp housing in one hand and rotate the bulb holder and bulb unit counterclockwise about 30 degrees on the circuit board.
4. Pull the bulb holder and bulb unit straight out from the mounting hole in the circuit board.

INSTALLATION
1. Grasp the dome lamp/intrusion sensor unit housing in one hand and align the bulb holder and bulb unit with the bulb mounting hole in the circuit board with the other hand.
2. Insert the bulb holder and bulb unit straight into the circuit board bulb mounting hole until it is firmly seated.
3. Rotate the bulb holder and bulb unit clockwise about 30 degrees on the circuit board.
4. Reinstall the dome lamp/intrusion sensor unit into its mounting location.
5. Reconnect the battery negative cable.
