Freightliner Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
Oscilloscope Patterns and Waveforms

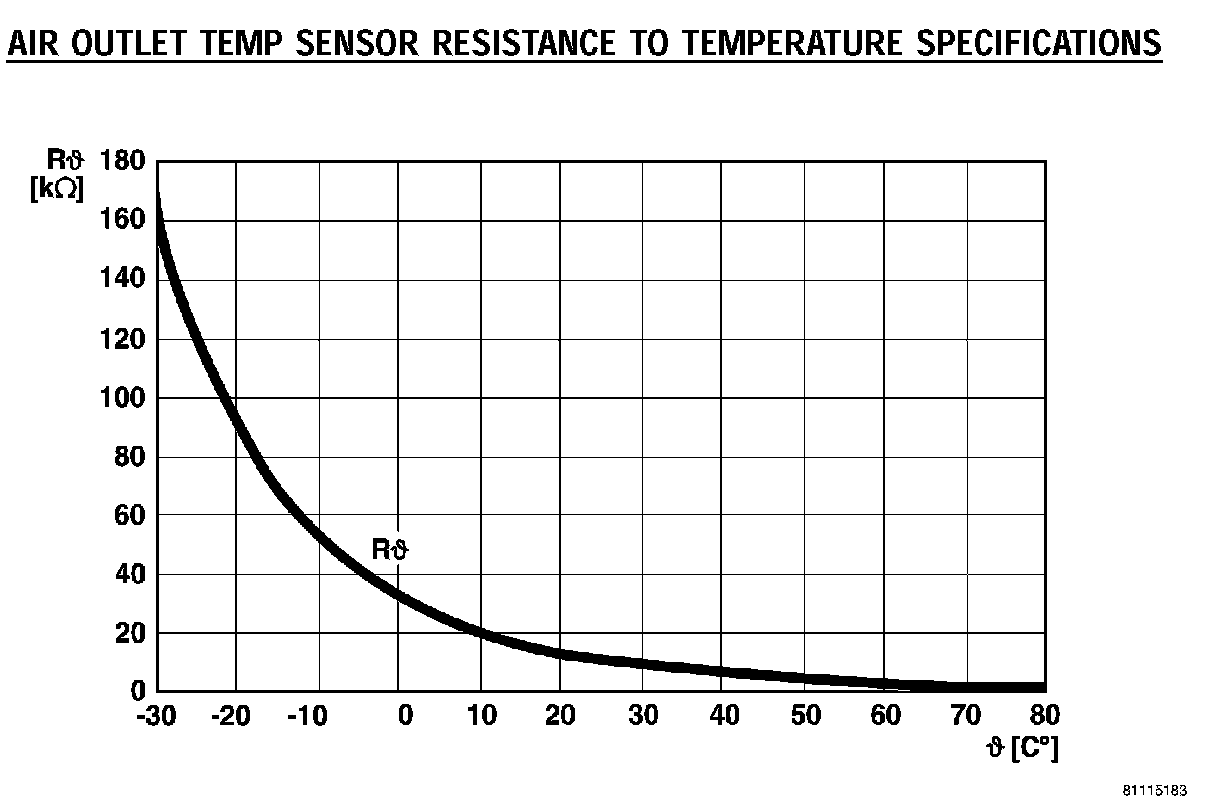

Air Outlet Temp Sensor Resistance To Temperature Specifications:

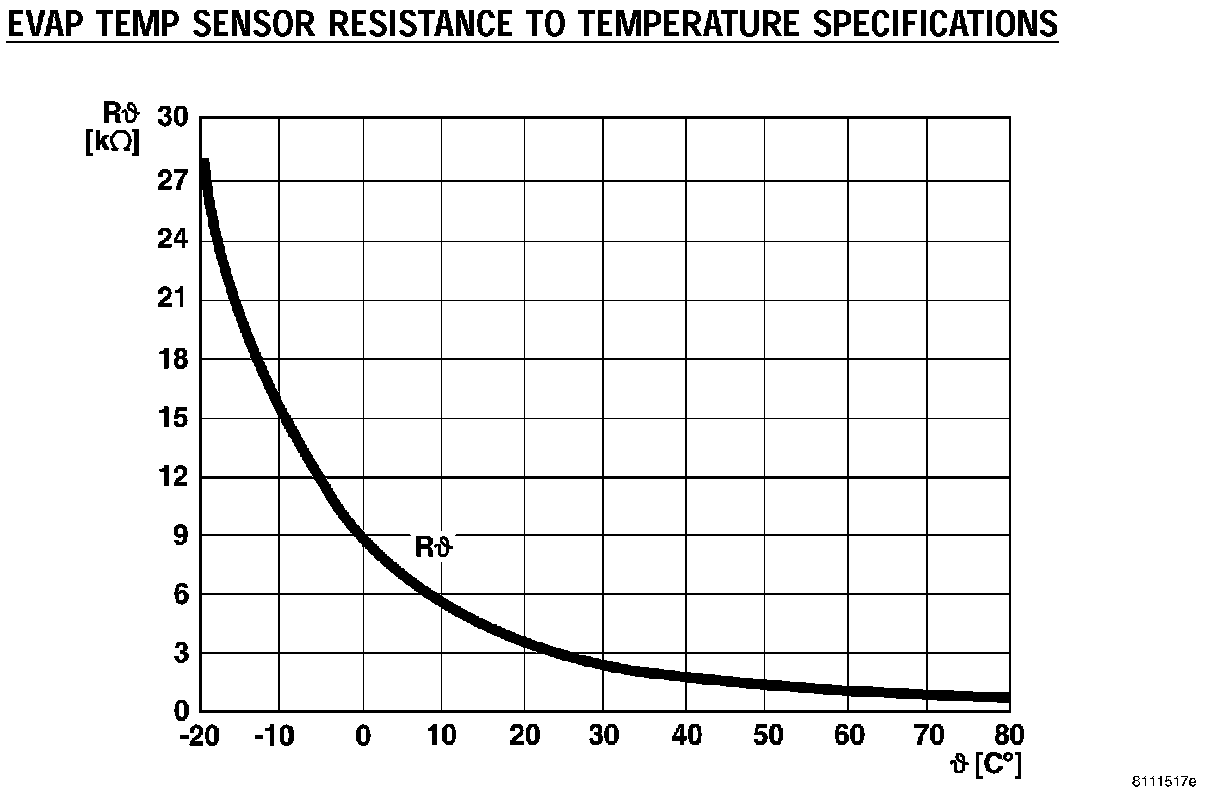

EVAP Temp Sensor Resistance To Temperature Specifications:
