Rear Receiver/Drier

REMOVAL

WARNING: REFER TO THE APPLICABLE WARNINGS AND CAUTIONS FOR THIS SYSTEM BEFORE PERFORMING THE FOLLOWING OPERATION. FAILURE TO FOLLOW THE WARNINGS AND CAUTIONS COULD RESULT IN POSSIBLE PERSONAL INJURY OR DEATH.

1. Disconnect and isolate the negative battery cable.
2. Remove the air filter from the rear A/C evaporator housing.
3. Recover the refrigerant from the rear refrigerant system.
4. Remove the cover from the rear A/C condenser housing.

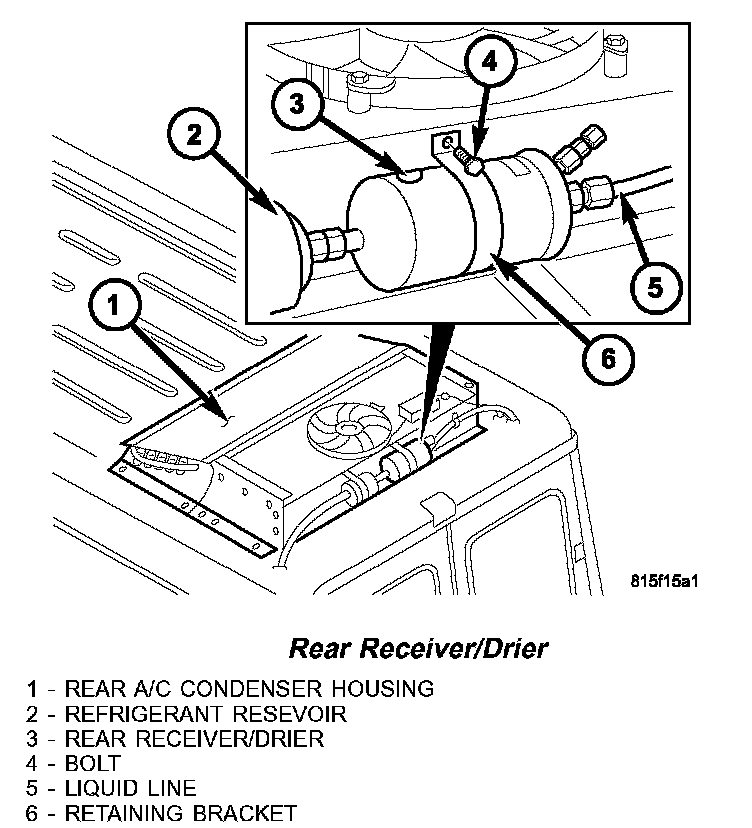

Rear Receiver/drier:

5. Disconnect the rear refrigerant reservoir from the rear receiver/drier and remove and discard the O-ring seal.
6. Disconnect the liquid line from the rear receiver/drier and remove and discard the O-ring seal.
7. Remove the bolt and retaining bracket that secures the rear receiver/drier to the rear A/C condenser housing and remove the receiver/drier.
8. Install plugs into, or tape over the opened rear liquid line fitting and reservoir and receiver/drier ports.

INSTALLATION

NOTE: Be certain to add refrigerant oil if the rear receiver/drier is being replaced. The refrigerant oil must be drained from the old receiver/drier and measured to determine the amount of refrigerant oil to add to the new receiver/drier. Use only refrigerant oil of the type recommended for the rear A/C compressor in the vehicle.

1. If the rear receiver/drier is being replaced, install the correct amount and type of refrigerant oil into the new rear receiver/drier. Drain the old receiver/drier and measure the refrigerant oil. Fill the new receiver/drier with the same amount of new refrigerant oil that was drained out of the old receiver/drier.

NOTE: The rear receiver/drier is labeled with a direction-of-flow arrow to indicate refrigerant flow through the receiver/drier. Make sure to properly install the rear receiver/drier in the correct direction.

2. Position the rear receiver/drier to the rear A/C condenser housing and install the retaining bracket and bolt. Tighten the bolt to 25 N.m (18 ft. lbs.).
3. Remove the tape or plugs from the rear liquid line fitting and reservoir and receiver/drier ports.
4. Lubricate a new O-ring seal with clean refrigerant oil and install it onto the rear liquid line fitting. Use only the specified O-ring seal as it is made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the rear A/C compressor in the vehicle.
5. Connect the rear liquid line to the rear receiver/drier. Tighten the nut to 35 N.m (26 ft. lbs.).
6. Lubricate a new O-ring seal with clean refrigerant oil and install it onto the receiver/drier outlet fitting. Use only the specified O-ring seal as it is made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the rear A/C compressor in the vehicle.
7. Connect the rear refrigerant reservoir to the rear receiver/drier. Tighten the nut to 35 N.m (26 ft. lbs.).
8. Reconnect the negative battery cable.
9. Evacuate the rear refrigerant system.
10. Charge the rear refrigerant system.
11. Install the rear air filter.
12. Install the cover onto the rear A/C condenser housing.
