Rear Liquid Line

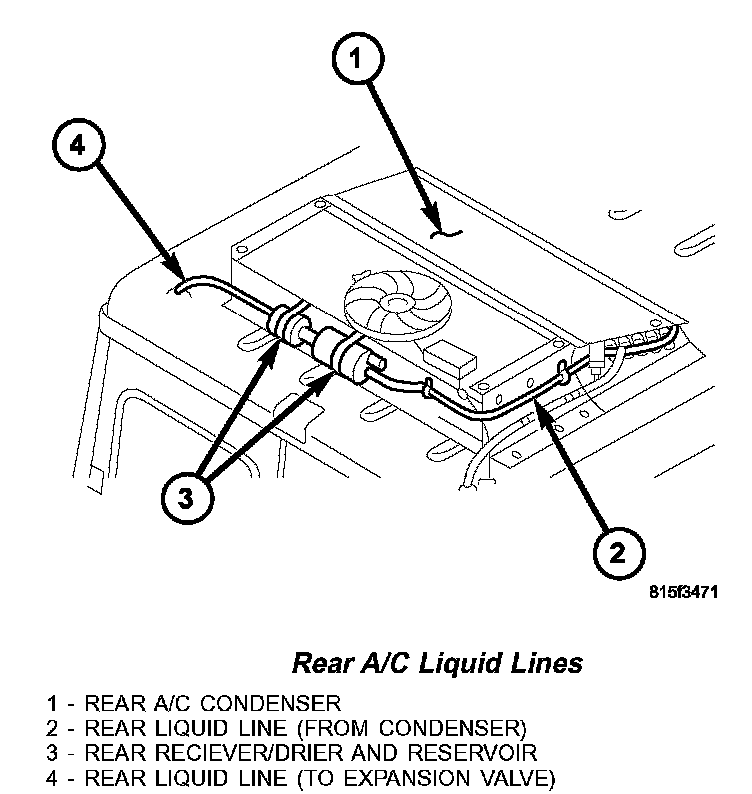

Rear A/C Liquid Lines:

The rear liquid line is the refrigerant line that carries refrigerant from the rear condenser to the rear A/C expansion valve. The rear A/C liquid line on this vehicle is serviced in two sections.

CAUTION: Use only seals specified for the vehicle. Failure to use the correct seals will cause the refrigerant system connections to leak.

The rear A/C liquid lines have no serviceable parts except for the O-ring seals. The O-ring seals used on the connections are made from a special type of rubber not affected by R-134a refrigerant and must be replaced whenever the rear liquid line is removed and installed.

If either of the rear liquid lines is found to be leaking or damaged, it must be replaced.
