Rear Discharge Line

Rear A/C Discharge Line:

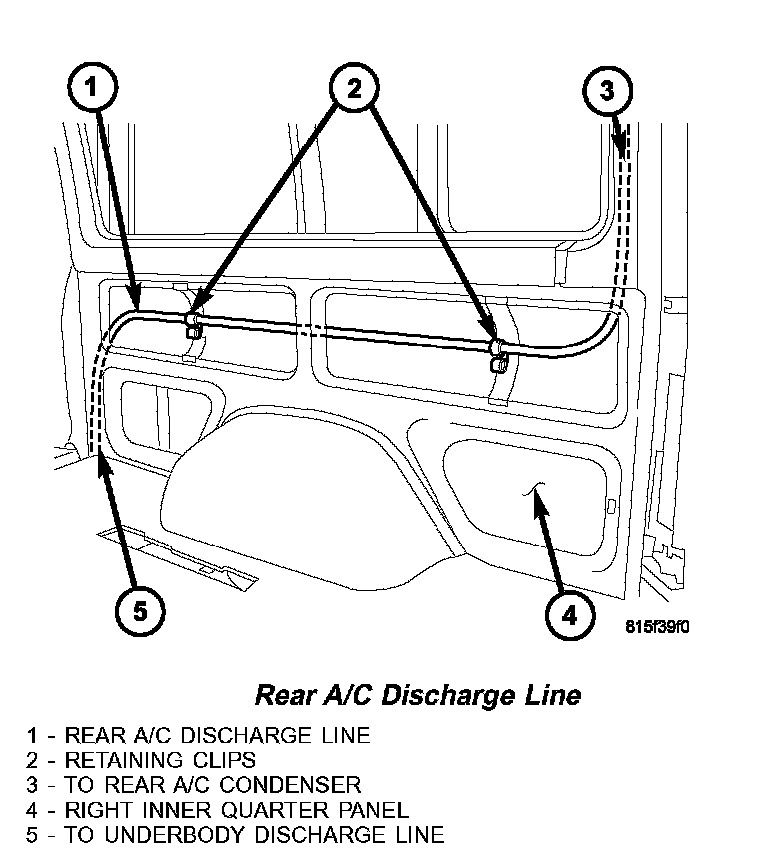

The rear A/C discharge line is the refrigerant line that carries refrigerant from the underbody discharge line to the rear A/C condenser. The rear A/C discharge line is retained to the right quarter panel by two plastic retaining clips.

CAUTION: Use only seals specified for the vehicle. Failure to use the correct seals will cause the refrigerant system connections to leak.

The rear A/C discharge line has no serviceable parts except for the O-ring seals. The O-ring seals used on the connections are made from a special type of rubber not affected by R-134a refrigerant and must be replaced whenever the rear discharge line is removed and installed.

If the rear A/C discharge line is found to be leaking or damaged, it must be replaced.
