Air Filter - Distribution Rear

REMOVAL

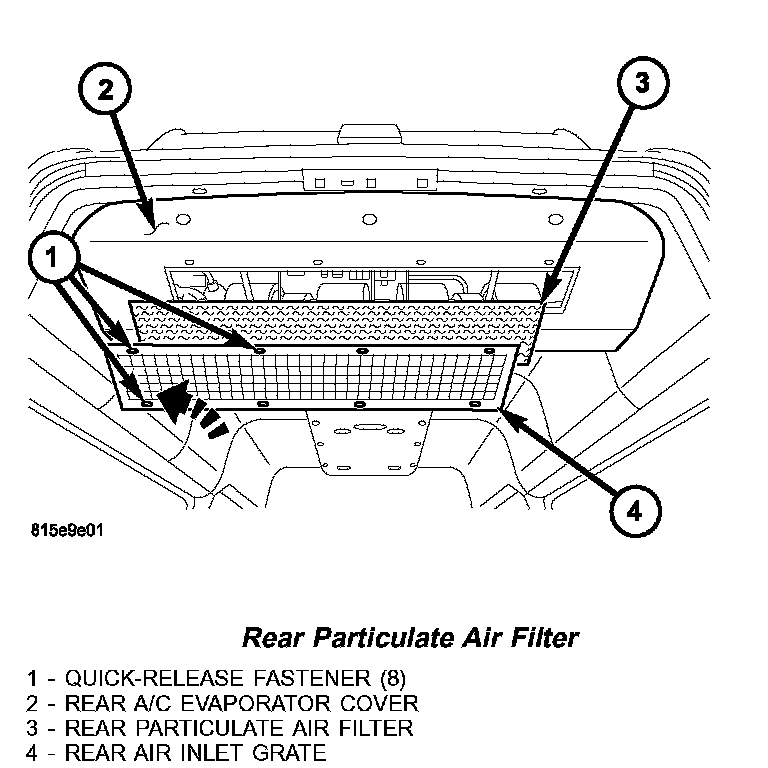

Rear Particulate Air Filter:

1. Unlock the eight quick-release fasteners by turning them 90 degrees counter clockwise.
2. Remove the rear air inlet grate from the rear A/C evaporator cover.
3. Remove the rear particulate air filter by disengaging the velcro-type retainers.
4. Carefully clean the rear particulate air filter using compressed air.

INSTALLATION

NOTE: Replace the rear particulate air filter if it is heavily soiled or damaged.

1. Position the rear particulate air filter and engage the velcro-type retainers.
2. Install the rear air inlet grate onto the rear A/C evaporator cover.
3. Lock the eight quick-release fasteners by turning them 90 degrees clockwise.
