Air Filter - Distribution Front

REMOVAL

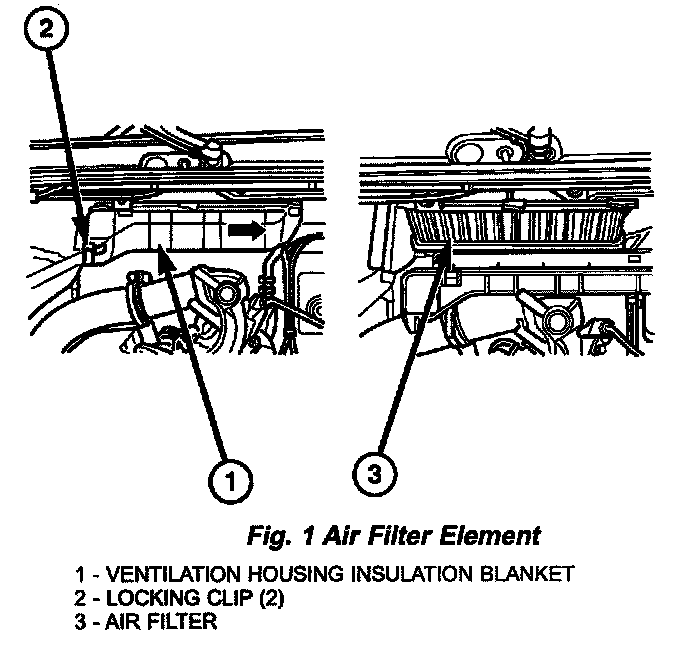

1. Remove the insulation blanket from the ventilation housing in the engine compartment.
2. Open the locking clips at the front and rear of the ventilation housing.
3. Slide the ventilation housing cover in the direction of the arrow shown.
4. Remove the air filter.

INSTALLATION
1. Install the air filter into the ventilation housing.
2. Install the ventilation housing cover
3. Close the locking clips at the front and rear of the ventilation housing.

NOTE: The locking tabs should retain the ventilation housing cover securely.

4. Install the insulation blanket onto the ventilation housing.
