Front Blower Motor

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the engine air cleaner housing cover.
3. Position the ventilation housing insulation blanket out of the way of the blower motor assembly.

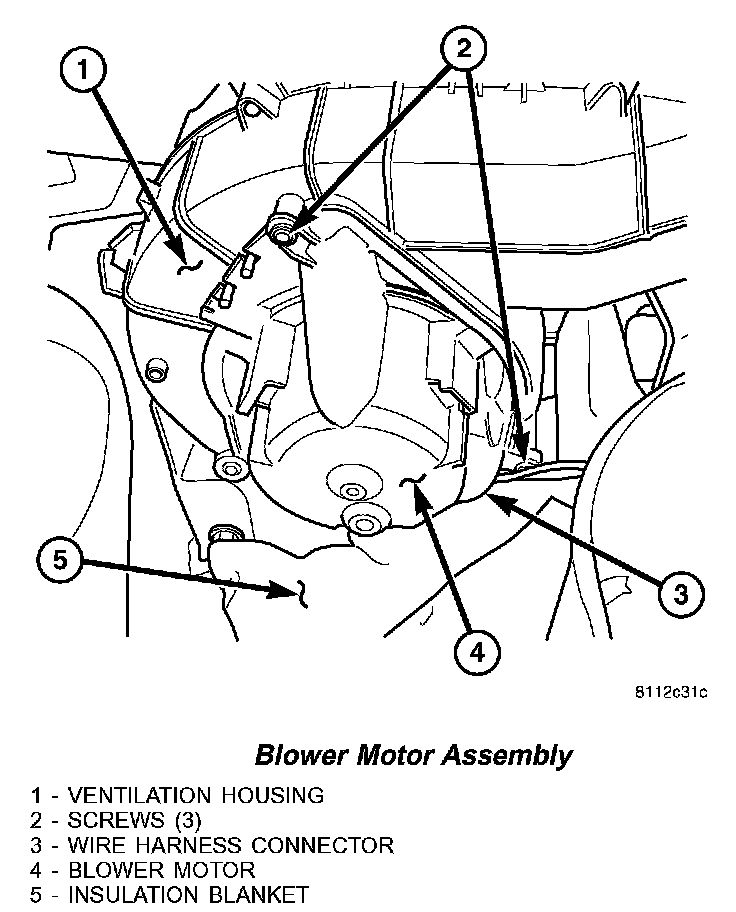

Blower Motor Assembly:

4. Disconnect the wire harness connector from the blower motor.
5. Remove the three blower motor retaining screws.
6. Remove the blower motor assembly from the ventilation housing.

INSTALLATION
1. Install the blower motor assembly into the ventilation housing.
2. Install the three blower motor retaining screws. Tighten the screws to 2 N.m (17 in. lbs.).
3. Connect the wire harness connector to the blower motor.
4. Install the ventilation housing insulation blanket.
5. Install the engine air cleaner cover.
6. Reconnect the negative battery cable.
