Instrument Panel Ducts

REMOVAL
1. Remove the instrument panel.
2. Remove the defroster ducts.
3. Remove the floor distribution ducts.
4. If removing the right instrument panel duct, remove the passenger air bag module and bracket.

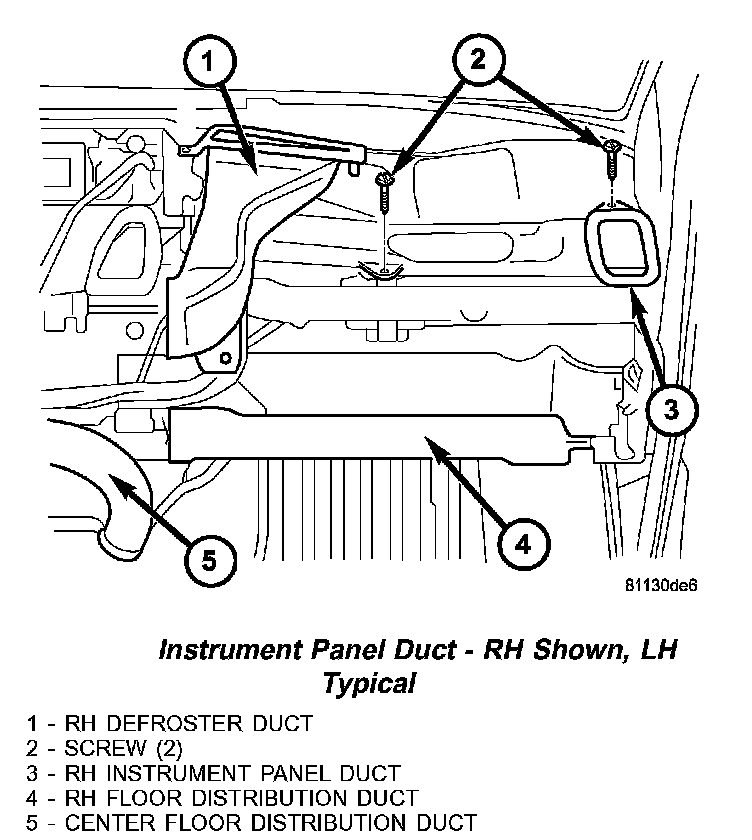

Instrument Panel Duct - RH Shown, LH Typical:

5. Remove the screws that secure the left and/or right instrument panel duct and remove the duct(s) as required.

INSTALLATION
1. Connect the instrument panel duct(s) to the heater housing as required.
2. Install the instrument panel duct retaining screws. Tighten the screws to 2 N.m (17 in. lbs.).
3. If servicing the right instrument panel duct, install the passenger air bag module and bracket.
4. Install the floor distribution ducts.
5. Install the defroster ducts.
6. Install the instrument panel.
