Floor Distribution Ducts

REMOVAL
1. Remove the instrument panel.
2. Remove the defroster ducts.

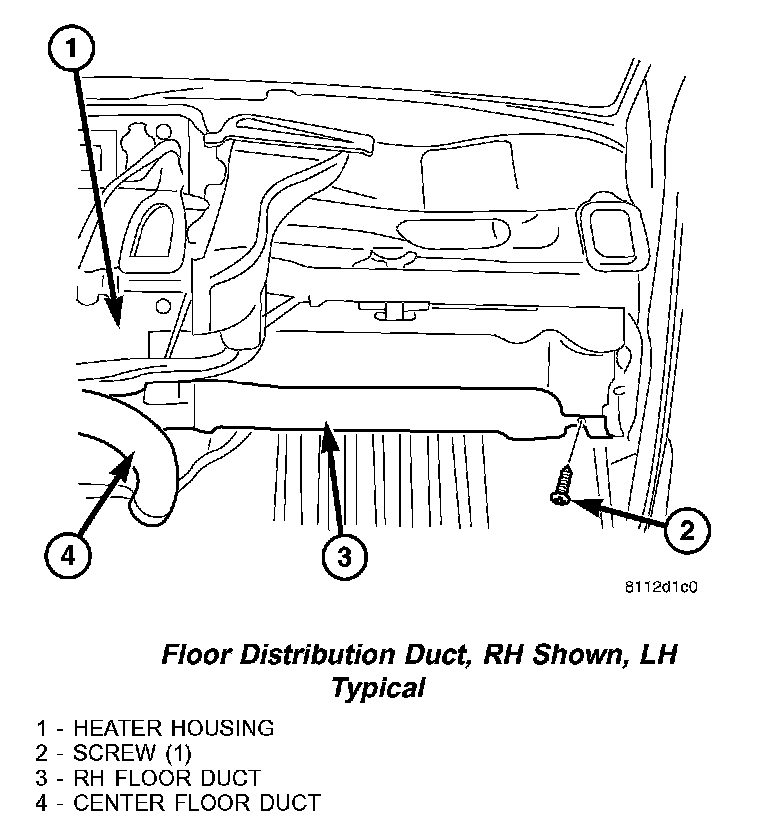

Floor Distribution Duct, RH Shown, LH Typical:

3. Remove the screws that secure the left and right floor distribution ducts to the instrument panel support.
4. Remove floor distribution ducts from the center floor distribution duct.
5. Remove the shift mechanism.
6. Remove center floor distribution duct from the heater housing.

INSTALLATION
1. Install the center floor distribution duct onto the heater housing.
2. Install the shift mechanism.
3. Install the left and right floor distribution ducts onto the center floor distribution duct.
4. Install the left and right floor distribution duct retaining screws to the instrument panel support Tighten the screws to 2 N.m (17 in .lbs)
5. Install the defroster ducts.
6. Install the instrument panel.
