Air Door Actuator / Motor: Service and Repair

RECIRCULATION DOOR ACTUATOR

REMOVAL
1. Disconnect and isolate the battery negative cable.

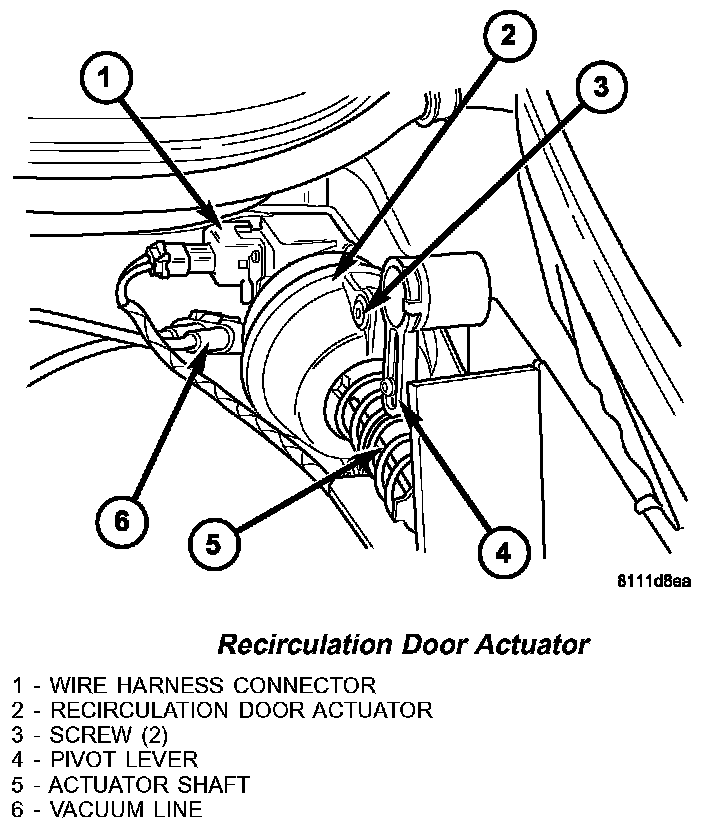

Recirculation Door Actuator:

2. Disconnect the wire harness connector from the recirculation door actuator.
3. Disconnect the vacuum line from the recirculation door actuator.
4. Remove the two screws that secure the recirculation door actuator to the ventilation housing.
5. Disconnect the actuator shaft from the recirculation door pivot lever and remove the actuator from the vehicle.

INSTALLATION
1. Connect the actuator shaft to the recirculation door pivot lever.
2. Install the two screws that secure the recirculation door actuator to the ventilation housing. Tighten the screws to 2 N.m (17 in. lbs.).
3. Connect the vacuum line to the recirculation door actuator.
4. Connect the wire harness connector to the recirculation door actuator.
5. Reconnect the battery negative cable.
