Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Testing and Inspection

Exhaust System: Testing and Inspection

DIAGNOSIS AND TESTING - DIESEL ENGINE

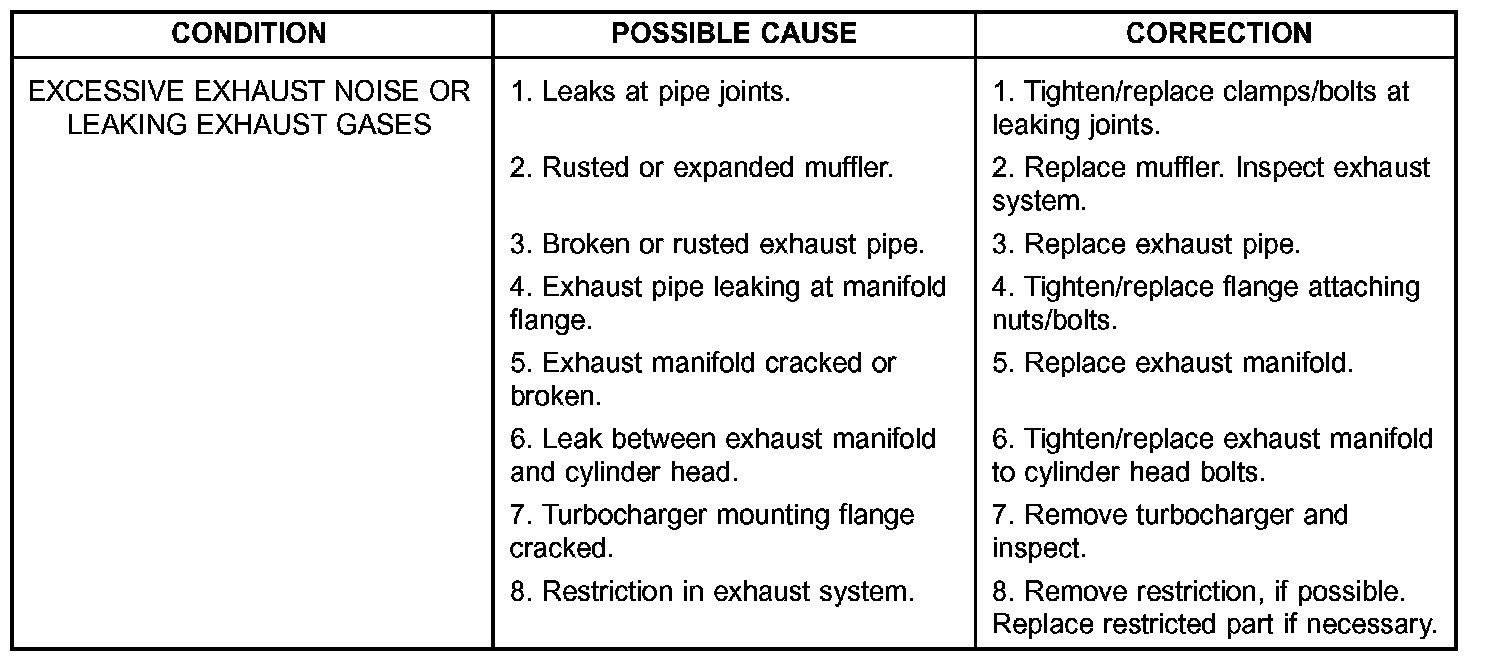

EXHAUST SYSTEM DIAGNOSIS CHART
