Timing Chain: Adjustments
ADJUSTMENTSINSTALLATION - TIMING CHAIN
CAUTION: IT IS ESSENTIAL that the installation procedure is followed exactly. Failure to do so will result in severe engine damage.
CAUTION: Cover timing case recesses to prevent foreign material from entering engine.

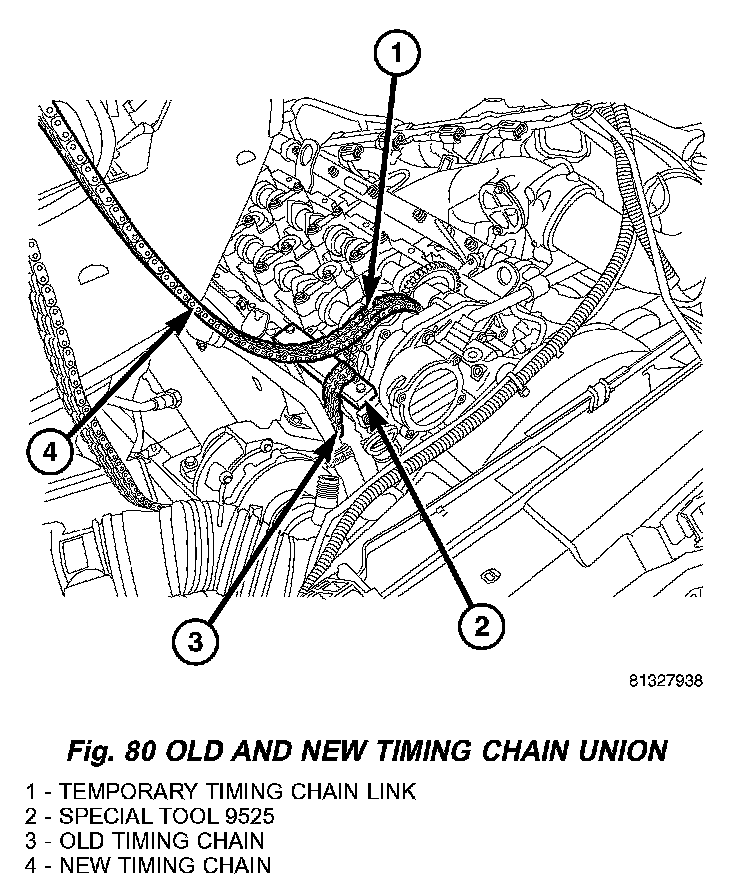

1. Connect new timing chain, oil hole side up and old timing chain with the assembly link, the assembly plate and the assembly locking element, and secure (Fig. 80).
CAUTION: Always install the new timing chain with the oil holes pointing up. Failure to do so will result in severe engine damage.
NOTE: Always keep new timing chain meshed with camshaft sprocket.
CAUTION: DO NOT CRANK ENGINE and DO NOT ROTATE ENGINE BACKWARD. Engine rotation is clockwise, as you are looking at the engine. Rotate engine at crankshaft only.
NOTE: Draw out the end of old timing chain evenly as it becomes free, to the same extent that new timing chain is drawn in.

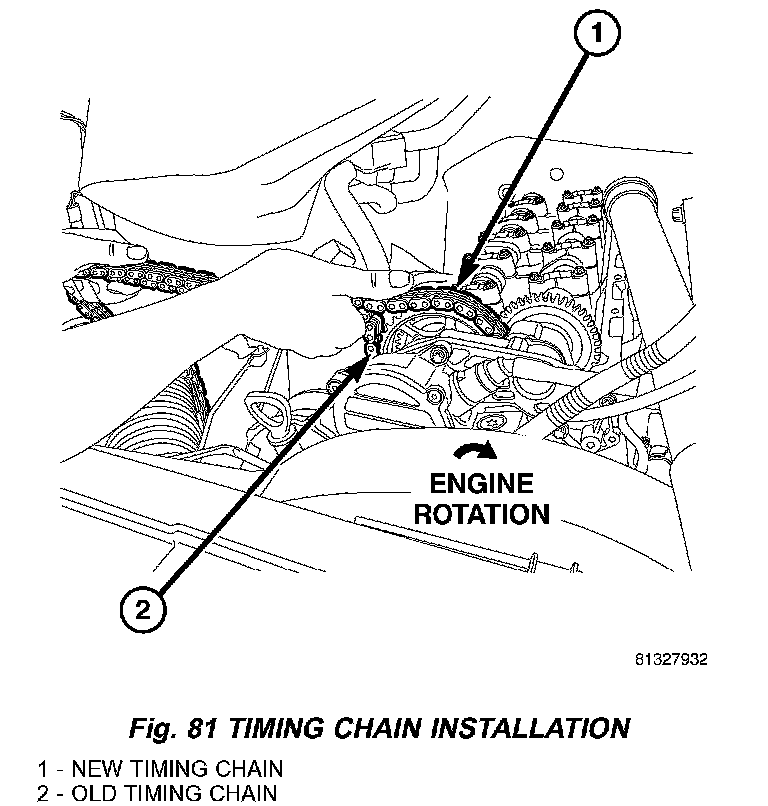

2. Draw in new timing chain with the oil holes facing up, by rotating the crankshaft slowly in direction of rotation of engine. (Fig. 81).

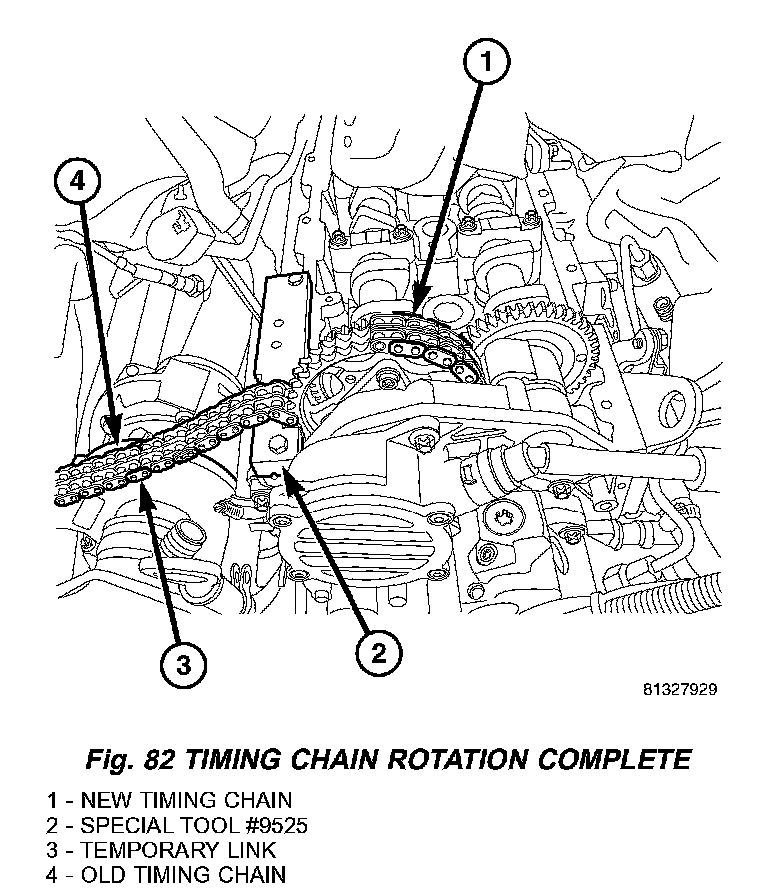

3. Rotate the engine until the ends of the new timing chain meet and can be connected (Fig. 82).
NOTE: Assembly link is only an assembly aid and NOT designed for engine running.
4. Remove assembly locking element, assembly outer plate and assembly link.
CAUTION: Cover timing case recesses to prevent foreign material from entering engine.
5. Insert new riveted link with the oil hole up, and new middle plate into ends of timing chain using the guide link to hold the middle plate in position (Fig. 83).
NOTE: When assembling riveting tool, piece #93127 is secured by a screw and #931210 can move loosely on thrust spindle

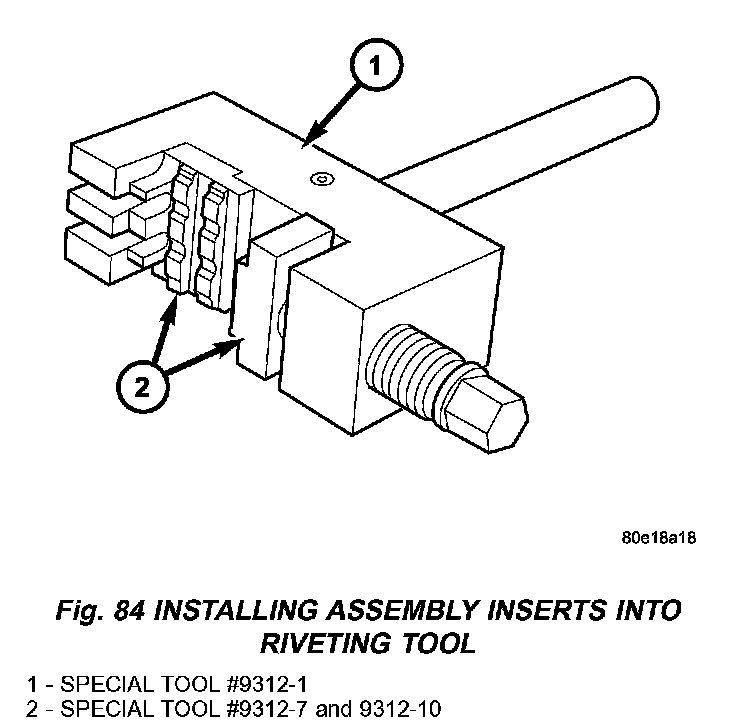

6. Assemble riveting tool by inserting pieces #93127 and #931210 (Fig. 84).
NOTE: Ensure that the riveted link and riveting tool are aligned.

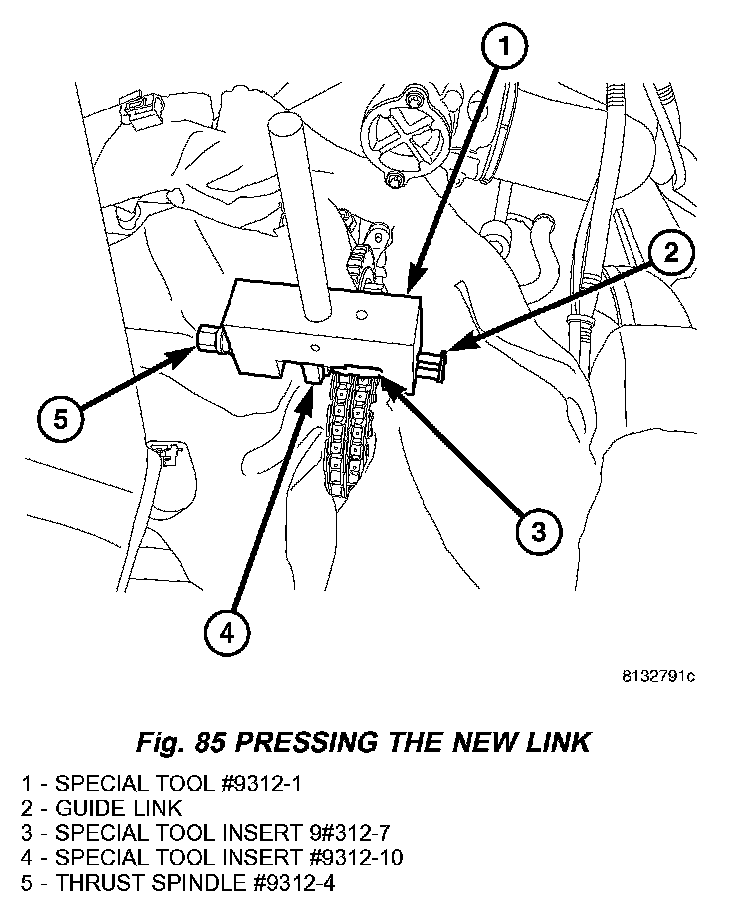

7. Press in new riveted link as far as the stop (Fig. 85).
8. Remove guide link and riveting tool to change inserts.

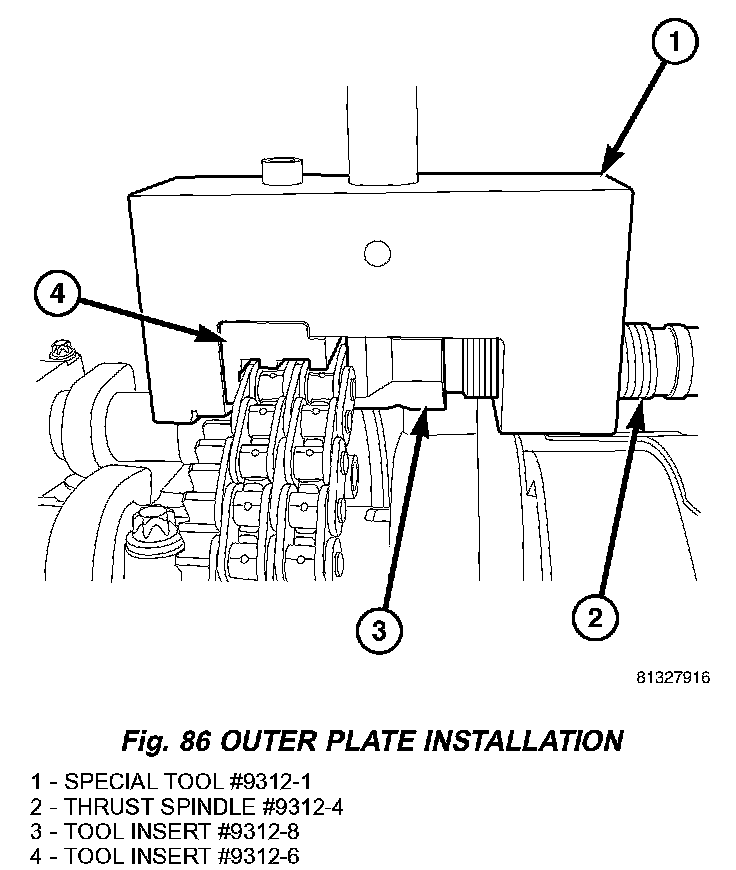

9. Install insert #93126 on riveting tool and secure with screw (Fig. 86).
10. Install insert 93128 on riveting tool.
NOTE: The outer plate is held magnetically by riveting tool.
11. Insert new outer plate into the moving assembly insert.
12. Position riveting tool so that spacer webs of the guide are side by side (Fig. 86).
13. Ensure that riveted link and outer plate are aligned.
NOTE: When turning spindle of riveting tool, be sure that pins of riveted link are inserted into holes of outer plate
14. Screw in spindle of riveting tool until firm resistance is felt (Fig. 86).
15. Remove riveting tool.
16. Install moving assembly insert #931211 to #93121.
17. Position riveting tool exactly over middle of pin.

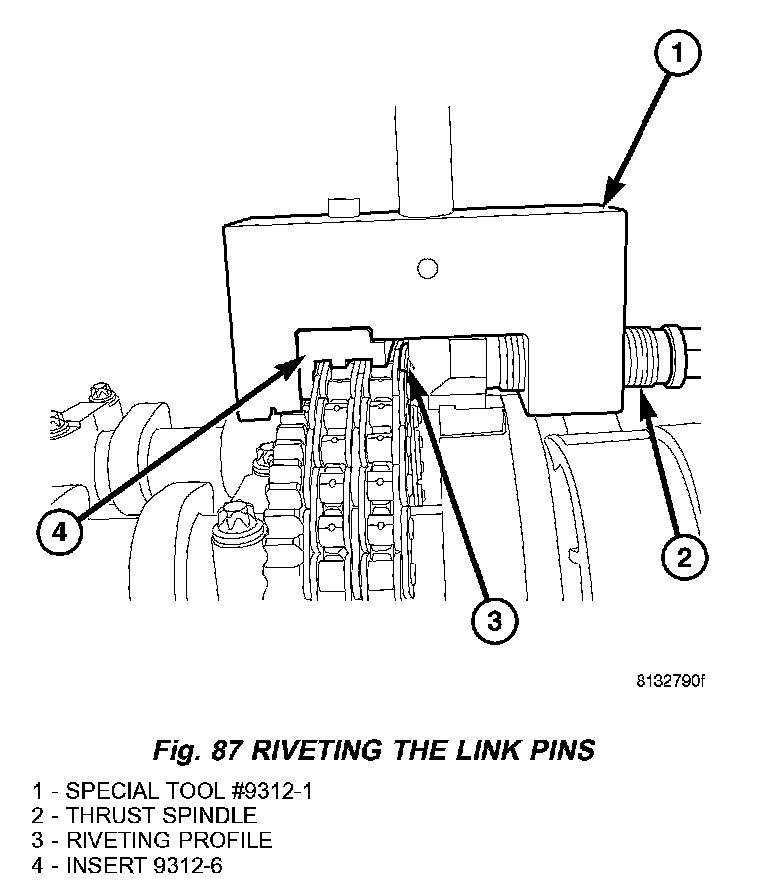

18. Tighten riveting tool spindle to end of travel (Fig. 87).
19. Repeat procedure for both riveting pins (Fig. 87).

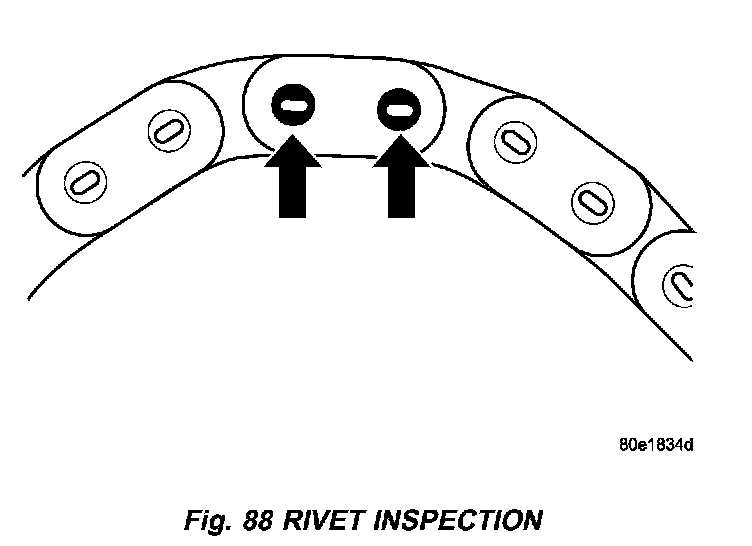

20. Inspect riveting, rerivet if required (Fig. 88).
21. Install cylinder head cover.
22. Install engine cover.
23. Connect negative battery cable.
24. Start engine and inspect for leaks. Care must be taken to observe the fuel system warning.
