Oil Spray Jet: Service and Repair

OIL JET

REMOVAL
The engine must be removed from the vehicle and completely disassembled to replace the oil jets.
1. Remove engine from vehicle.
2. Completely disassemble engine.
3. Using an extraction claw and a slide hammer, remove the oil jets from engine block.

INSTALLATION
1. Install oil jet into special tool #8924.
2. Align oil jet in location in engine block.

NOTE: Align oil jet with the groove in special tool #8924.

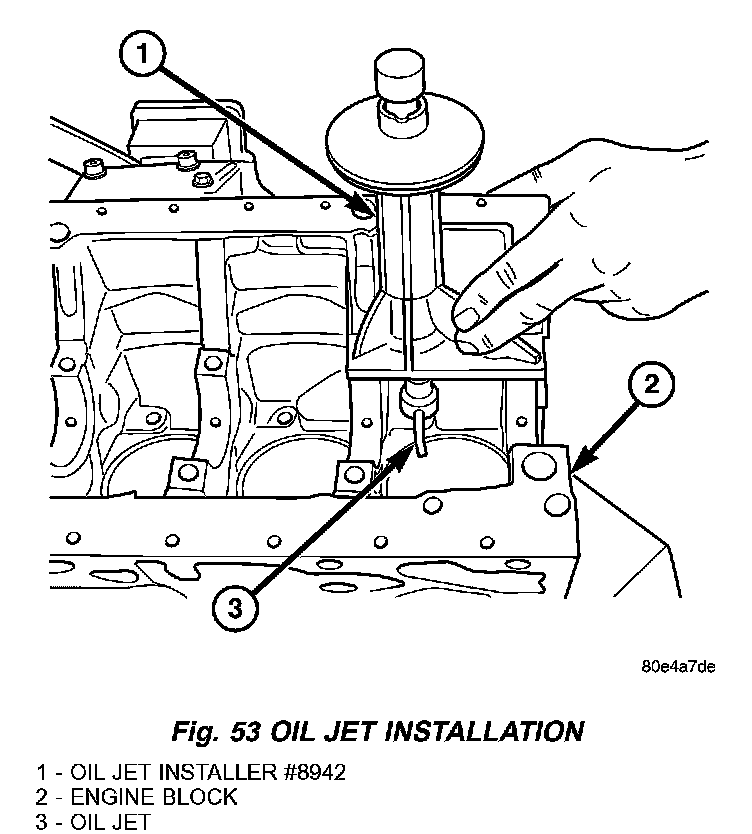

3. Drive oil jets into block using special tool #8924 until oil jet is fully seated into engine block (Fig. 53).
4. Reassemble engine.
5. Install engine into vehicle.
