Oil Pan: Specifications

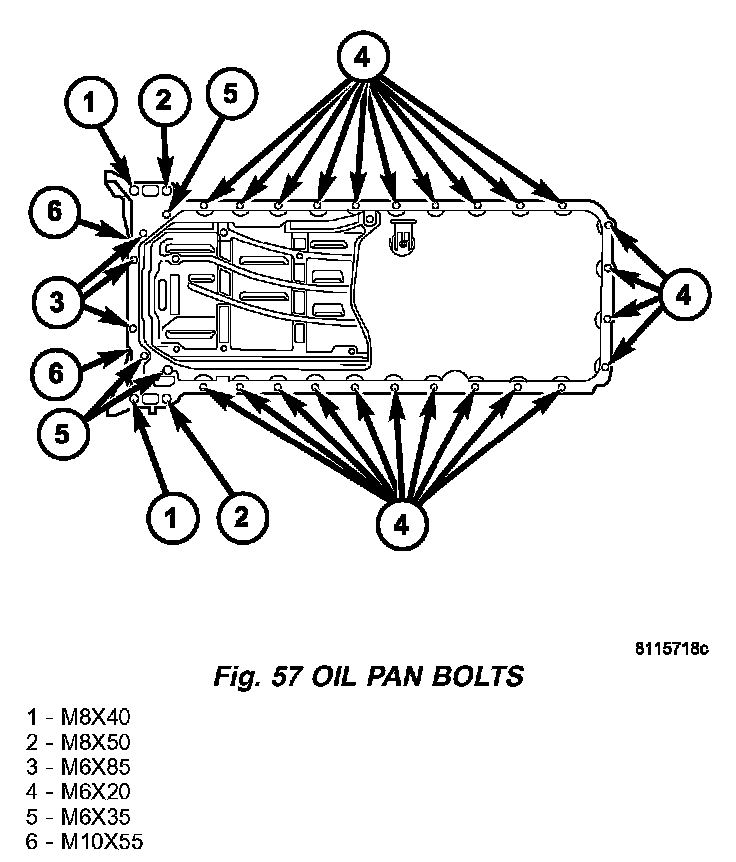

Oil Pan
6m-Bolt Oil Pan to Crankcase 9 Nm (80 inch lbs.)
8m-Bolt-Oil Pan to Crankcase 20 Nm (15 ft. lbs.)
Bolt-Oil Pan to End Cover 9 Nm (80 inch lbs.)
Bolt-Oil Pan to Timing Case Cover 9 Nm (80 inch lbs.)
Bolt-Oil Pan to Transmission Bell Housing 40 Nm (30 ft. lbs.)
Plug-Oil Pan to Oil Drain 47 Nm (35 ft. lbs.)
