Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> System Schematic

System Schematic

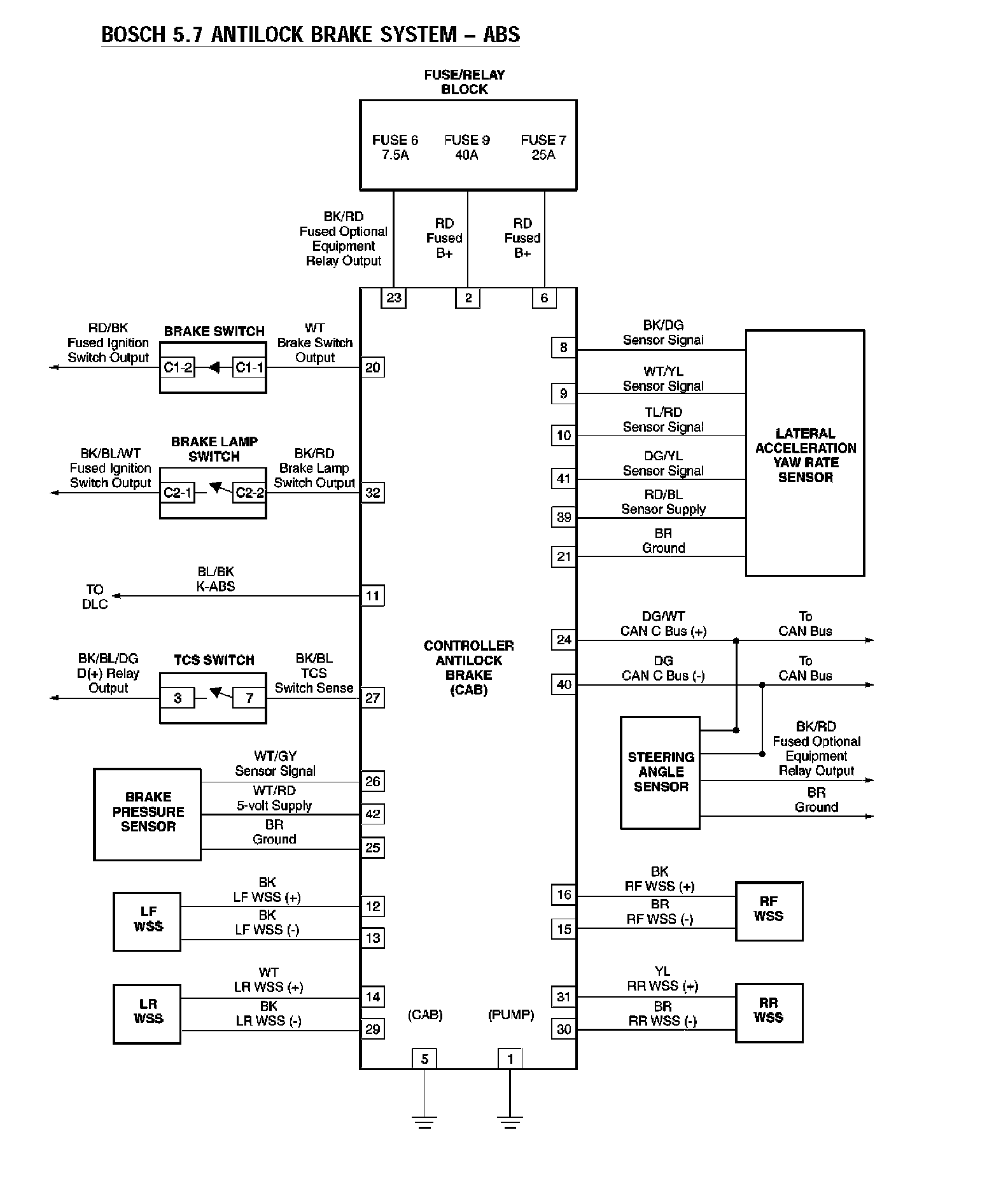

BOSCH 5.7 ANTILOCK BRAKE SYSTEM - ABS:
