Trailer Connector

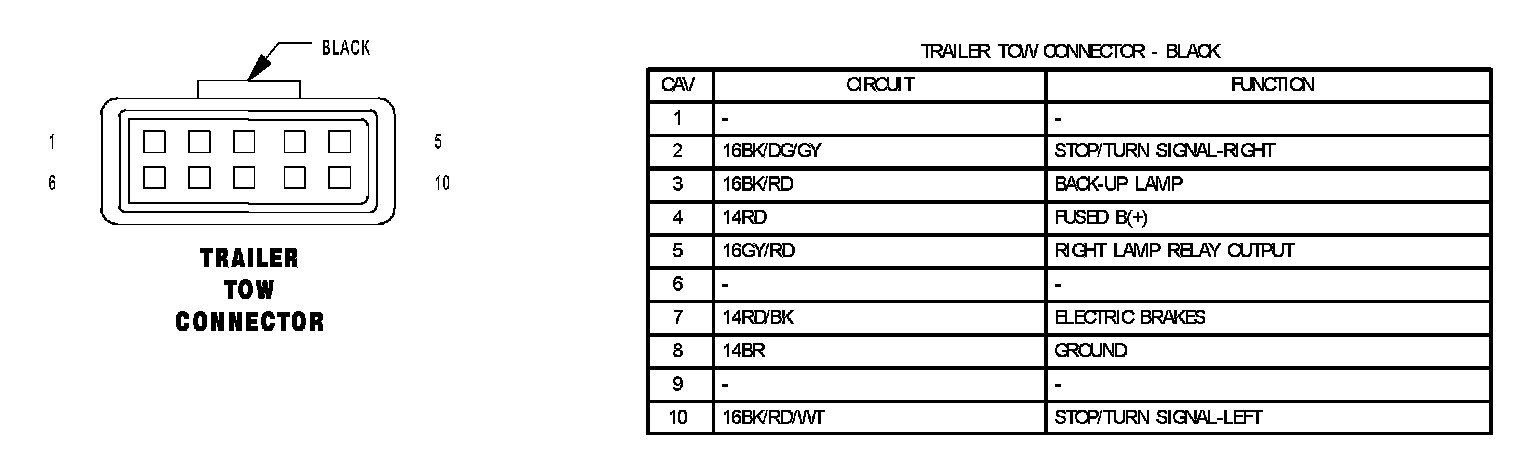

Trailer Tow Connector:

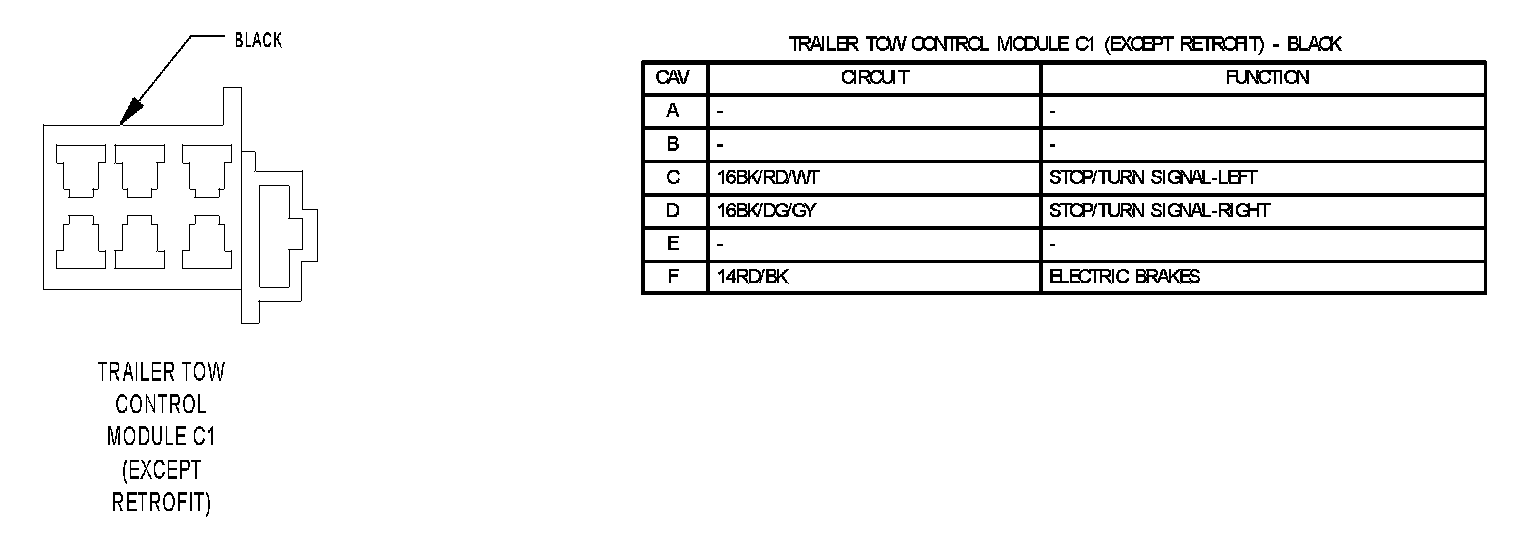

Trailer Tow Control Module C1 (Except Retrofit):

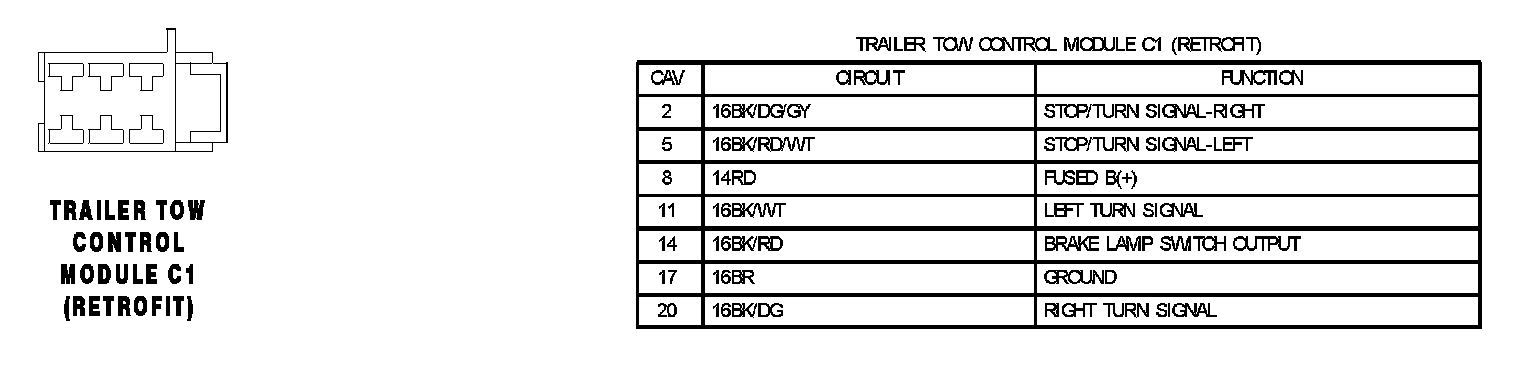

Trailer Tow Control Module C1 (Retrofit):

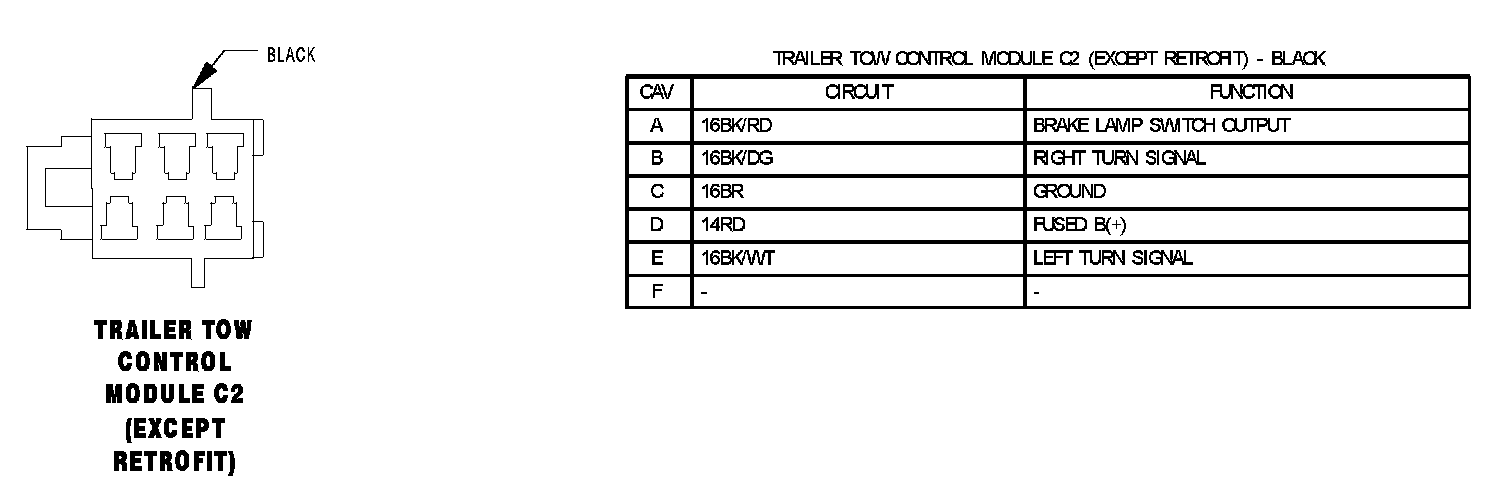

Trailer Tow Control Module C2 (Except Retrofit):
