Freightliner Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Mirror Motor
Power Mirror Motor
Power Mirror Motor - Driver:

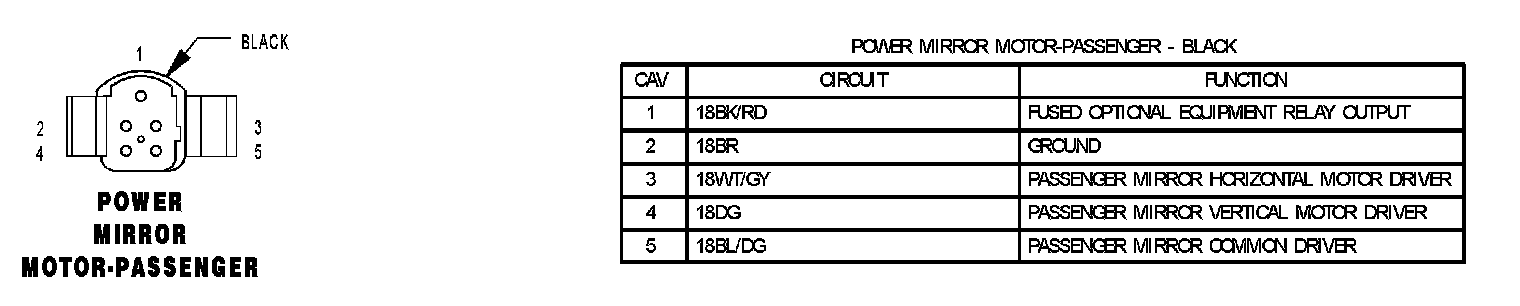

Power Mirror Motor - Passenger:
