Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram

System Diagram

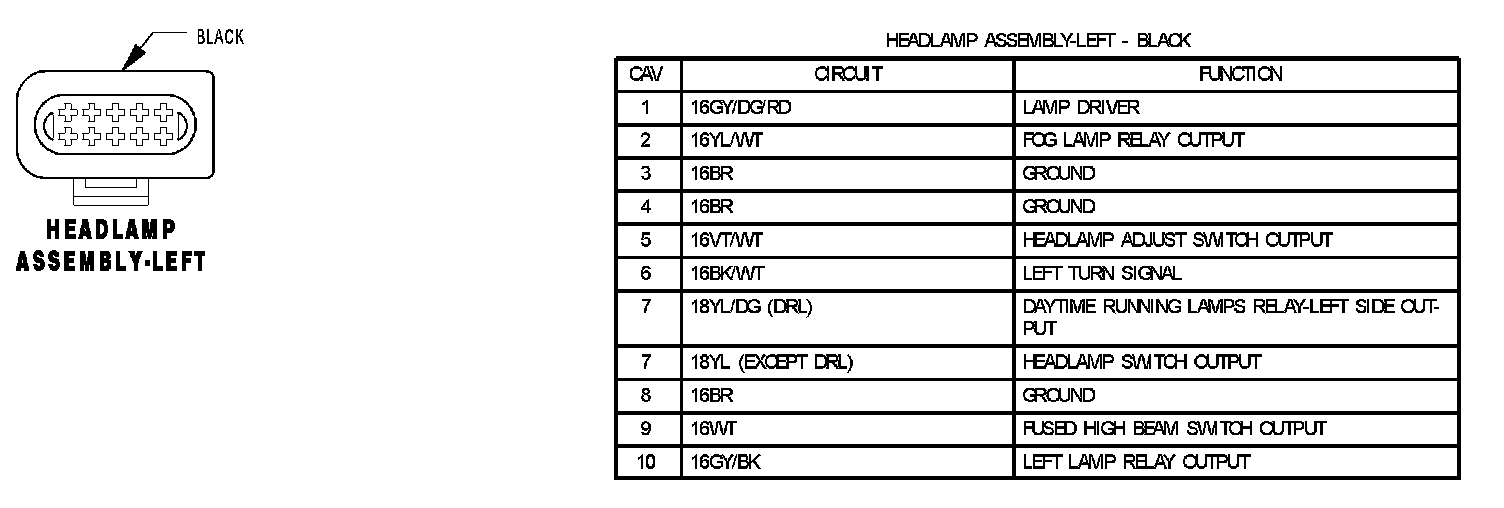

Headlamp Assembly - Left:

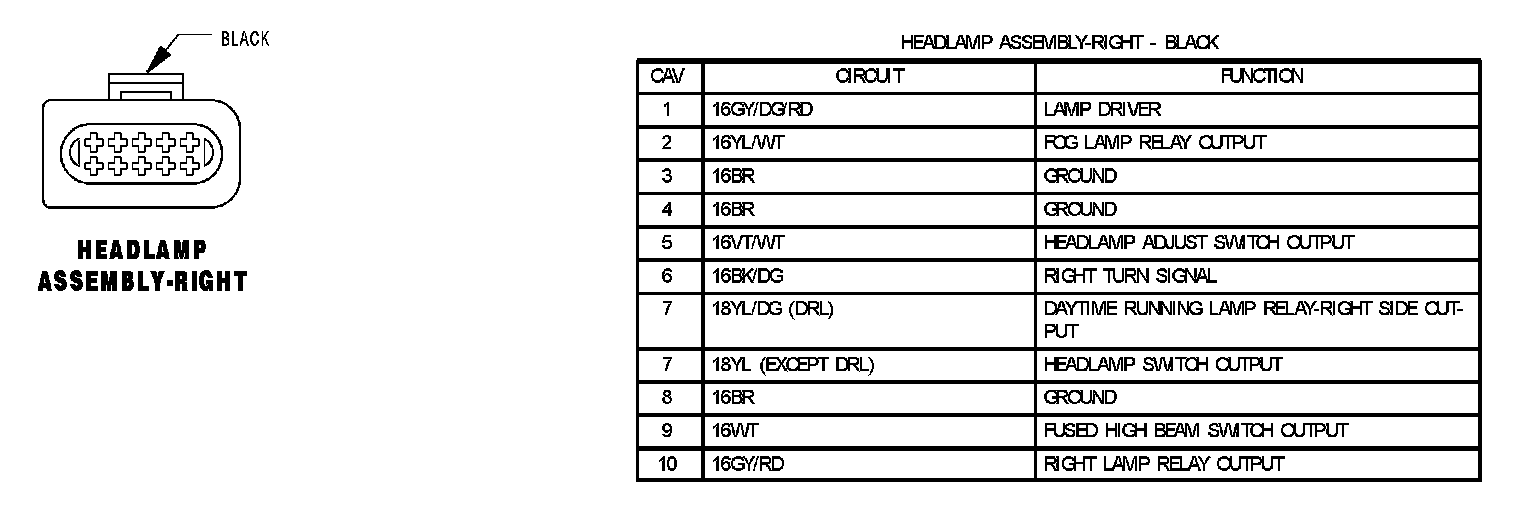

Head Lamp Assembly - Right:
