Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Roof A/C Temperature Setting Control

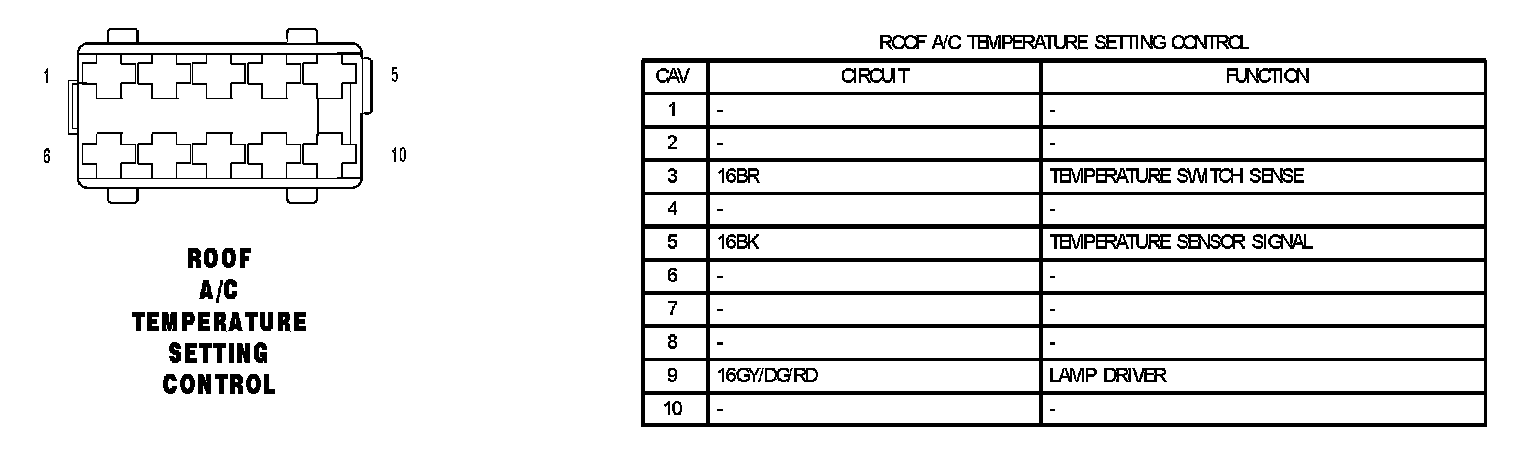

Roof A/C Temperature Setting Control

Roof A/C Temperature Setting Control:
