Freightliner Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Condenser Fan
Condenser Fan

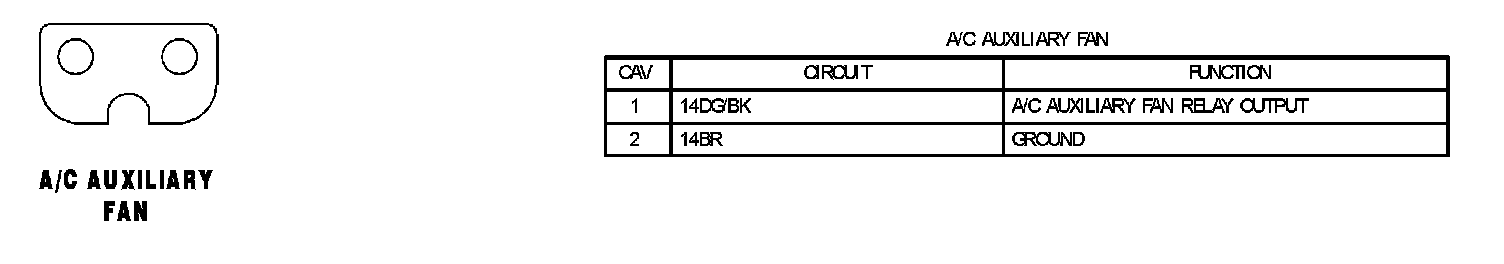

A/C Auxiliary Fan:

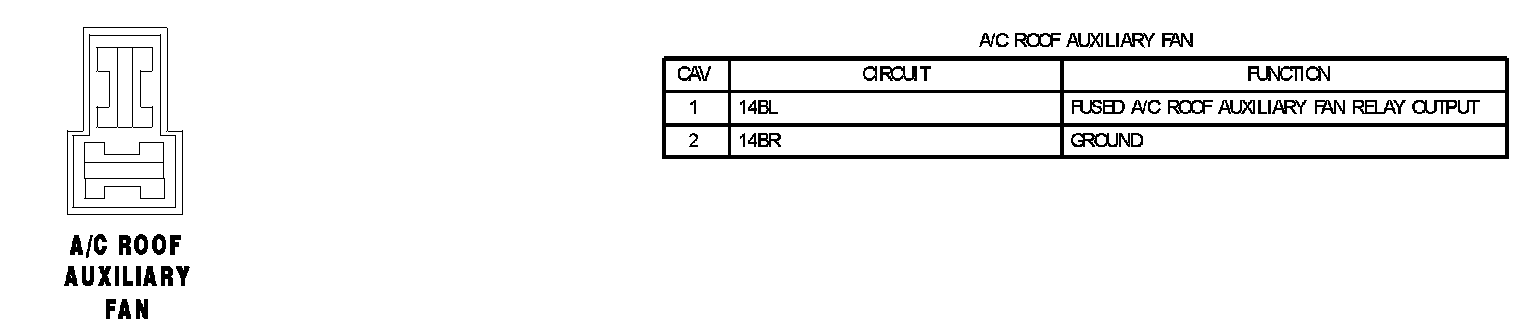

A/C Roof Auxiliary Fan:
