Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Auxiliary Cabin Heater >> System Diagram >> Warm Air Auxiliary Heater Assembly C1

Warm Air Auxiliary Heater Assembly C1

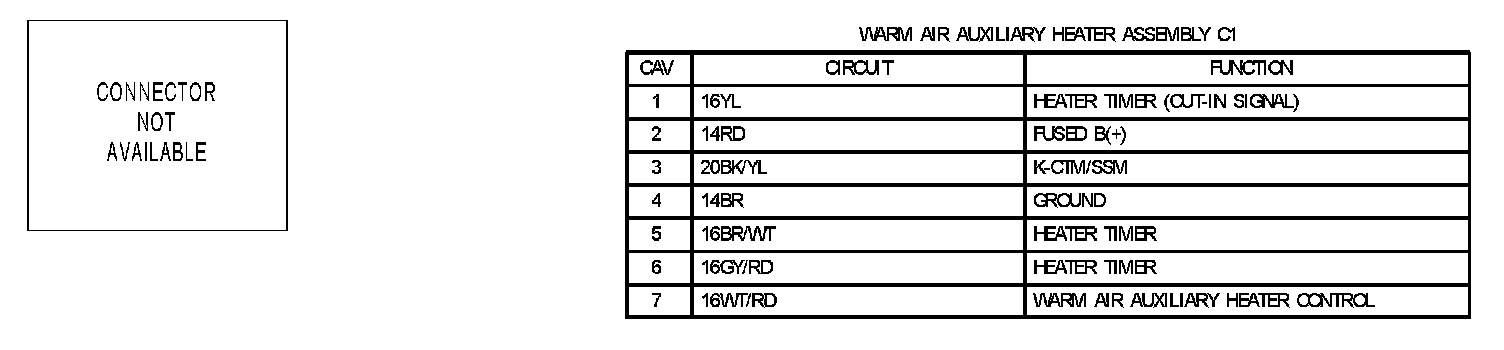

Warm Air Auxiliary Heater Assembly C1:

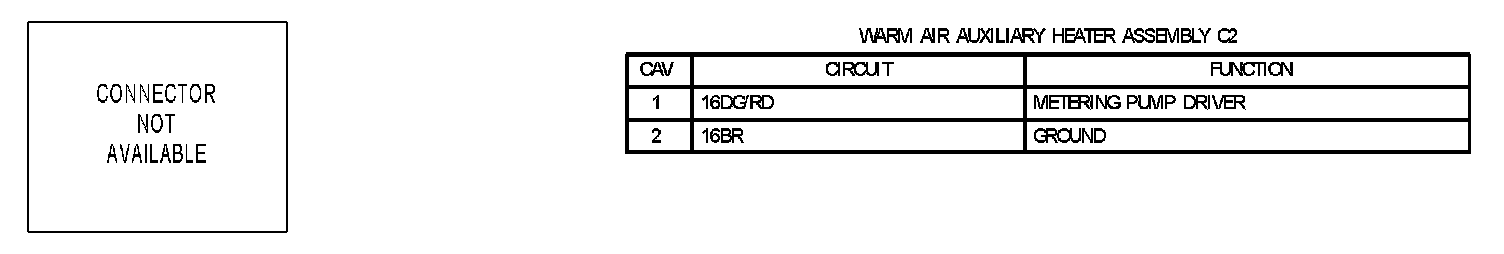

Warm Air Auxiliary Heater Assembly C2:
