Freightliner Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Cabin Heater
>>
System Diagram
>>
Heat Exchanger Switch
Heat Exchanger Switch

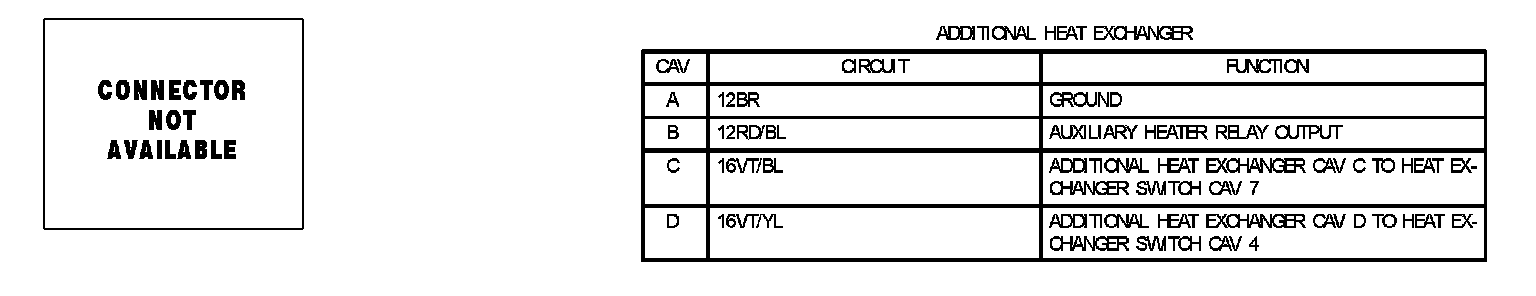

Additional Heat Exchanger:

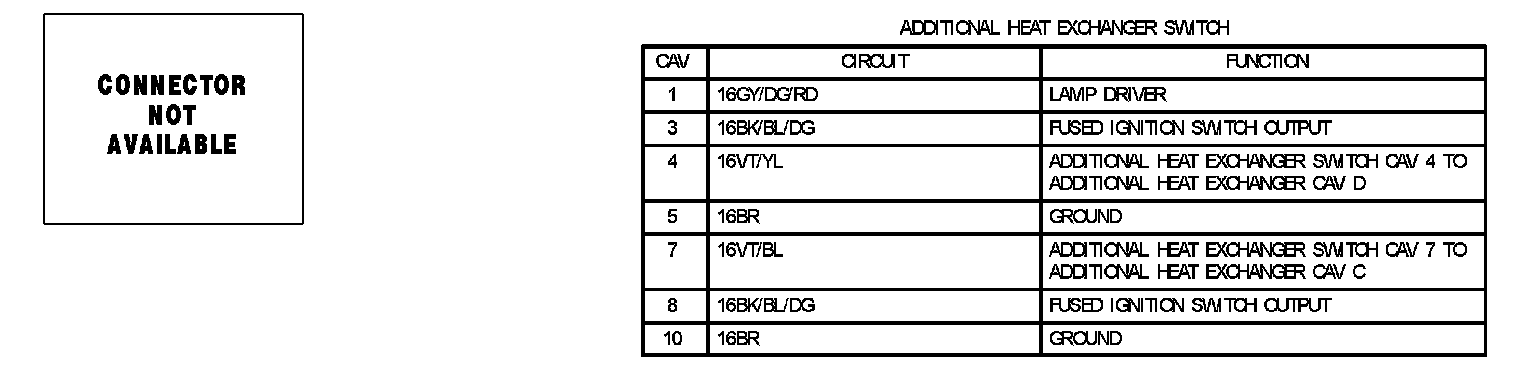

Addition Heat Exchanger Switch:
