Antitheft Mode Switch
>>
Towing/Intrusion Sensor On/Off Switch
Towing/Intrusion Sensor On/Off Switch

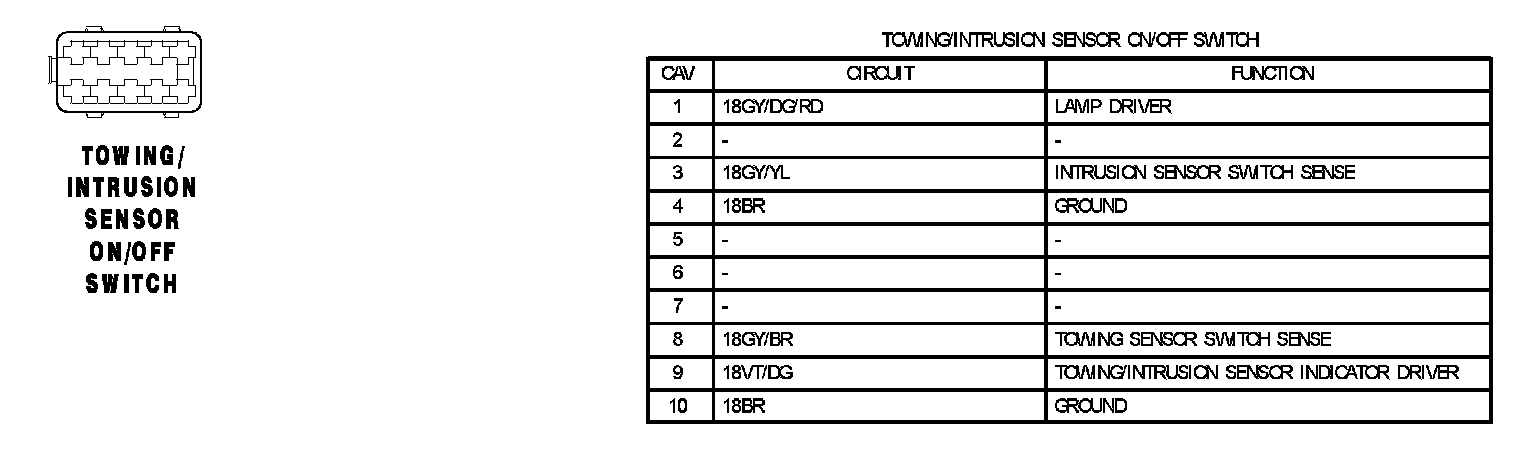

Towing/intrusion Sensor On/off Switch:
