Parking Brake Tensioner: Service and Repair

CABLE TENSIONER

REMOVAL

NOTE: Observe the installation position of the brake control cable lock, for a reference on installation.

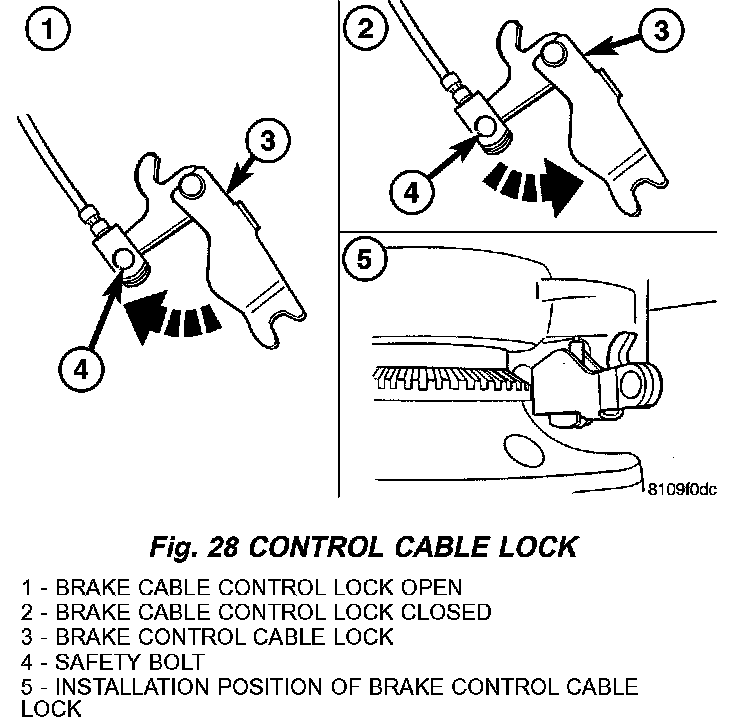

1. Open the brake control cable lock (Fig. 28).
2. Press out the safety bolt and remove the brake control cable lock (Fig. 28).





INSTALLATION
1. Push the brake control cable lock onto the brake cable (Fig. 28).
2. Insert the safety bolt and snap shut the brake control cable lock. Observe the installation position of the brake control cable lock (Fig. 28).
